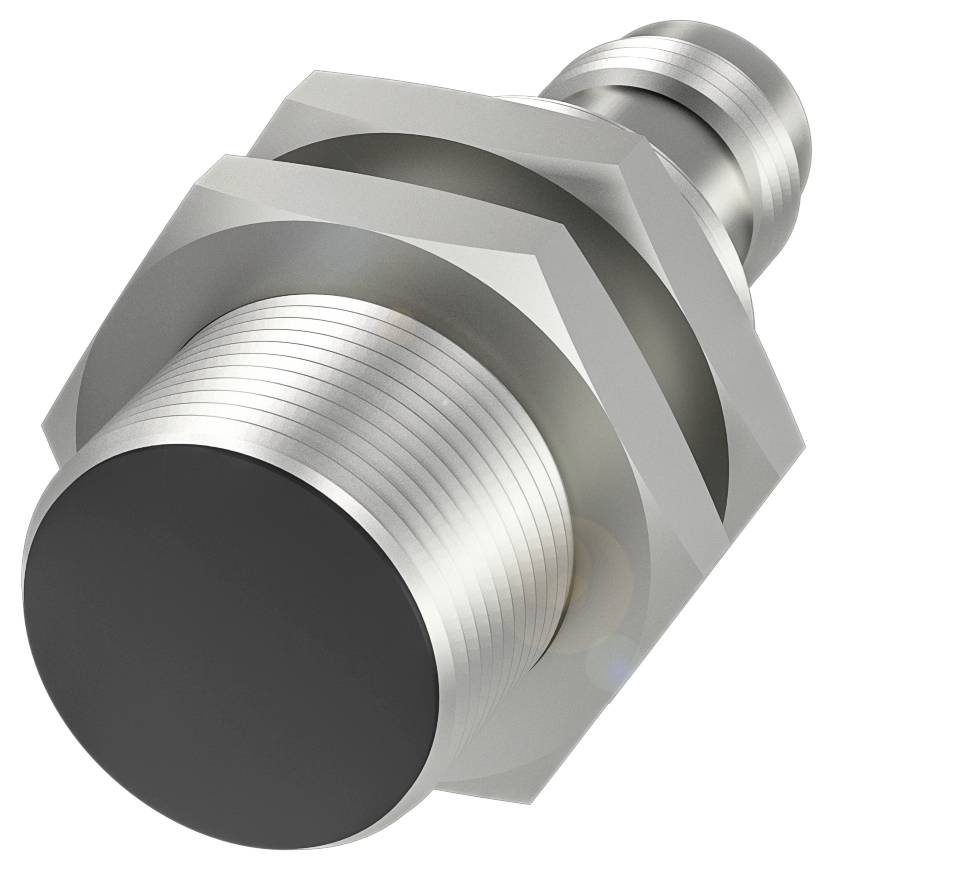

BALLUFF Proximity sensor Inductive BES M18ME-POC80B-S04G BES04R4 shielded PNP NC (Ø x H) 18 mm x 46 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 breaker
Switching distance (max.)
8.0 mm
Datasheet (PDF)
Highlights & Details
Balluff BES04R4 inductive proximity switches
- Dimensions: Ø 18 x 46 mm
- Design M18x1
- Flush mounting
- Range: 8 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimensions: Ø 18 x 46 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Brass, nickel-free coated
- Range: 8 mm
- Switching output: PNP NC
- Switching frequency 1300 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 18 x 46 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 2 mA
- Idle current IO max., unattenuated: 8 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1300 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 6.4 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 8.0 mm
- Real switching distance Sr:8 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 465 a
- Active surface, material: PBT
- Housing material Mechanical characteristics: Brass, nickel-free coated
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 30.5 mm
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Switching distance indicator: ■■
- Packaging type
Piece
- Product type
Proximity sensor
- Type
BES M18ME-POC80B-S04G
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 breaker
- Switching distance (max.)
8.0 mm
- Outputs
PNP NC
- Enclosure material
Brass
PBT
- Model
Inductive
- Installation type
shielded
- Connector
M12 (3-pin)
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Length
46 mm
- Height
46 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 46 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
1300 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416062 BALLUFF Proximity sensor Inductive BES M18ME-POC80B-S04G BES04R4 shielded PNP NC (Ø x H) 18 mm x 46 m Piece
User & Safety Instructions
User & Safety Instructions 3416062 BALLUFF Proximity sensor Inductive BES M18ME-POC80B-S04G BES04R4 shielded PNP NC (Ø x H) 18 mm x 46 m Piece
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Inductive sensor, connector, NC, nominal switching distance Sn=8.0 mm, flush, Active surface, material=PBT
