Name: BALLUFF Reflective light barrier BGL001A BGL001A Clear object detection 1 pc(s)
Brand: BALLUFF
SKU: 3417449

U-shaped magnetic component with two reddish surfaces and an arrow marking. Suitable for measurement or adjustment.

Image similar

Product type

Reflective light barrier

Functions

Clear object detection

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Type

BGL001A

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

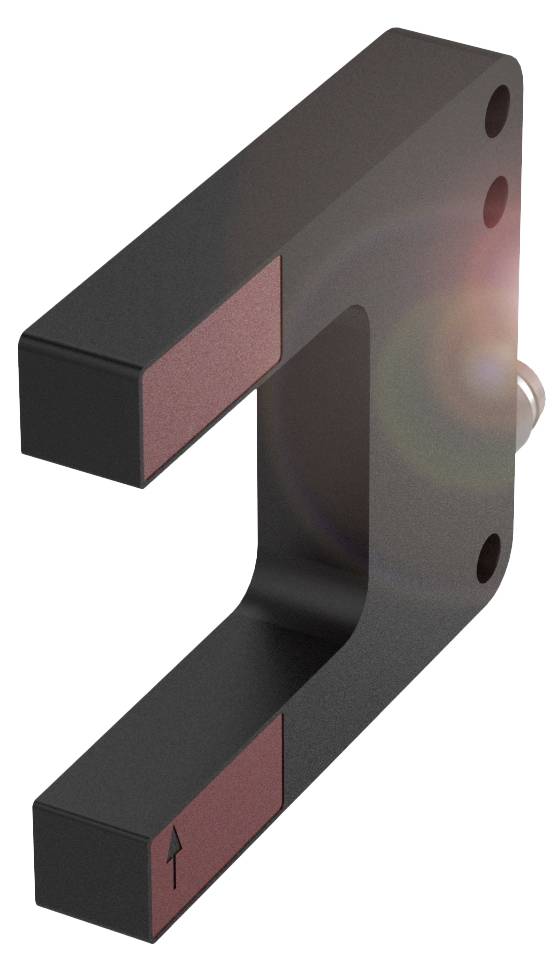

Balluff BGL001A Standard photoelectric fork sensor made of metal

Dimensions 10 x 50 x 68 mm
Series A
NPN NO/NC interface
Functional principle: Fork light barrier
Fork width: 30 mm

Technical specifications

Main features:Dimension 10 x 50 x 68 mm
Active surface, material: Glass
Connection: Plug connector, M8x1 plug, 3-pin
Series A
Operating voltage Ub 10...30 VDC
Functional principle: Fork light barrier
Optical functional principle: One-way light barrier
Fork width: 30 mm
Housing material: Zinc, die-cast, painted
Light: Red laser light
Light spot size: Ø 0.3 mm light emission
NPN NO/NC interface
Beam characteristic: Collimated
Additional features:
Functional principle: Fork light barrier
Dimensions 10 x 50 x 68 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 200 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.5 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 10%
Switching frequency 5000 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
MTTF (40 °C) 195 a
Active surface, material: Glass
Housing material: Zinc, die-cast, painted
Setting option: Sensitivity|light/dark switching
Contacts, surface protection: Gold-plated
Surface protection: Painted
Series A
Shape: Fork|straight connection
Display: Output function - yellow LED
Potentiometer 270° (2x)
Shutdown delay toff max.: 0.1 ms
ON delay max.: 0.1 ms
Idle current IO max. at Ue 20 mA
Voltage drop Ud max. at Ie 2.5 V
Hysteresis H max. 0.02 mm
Repeat accuracy on side max.: 10 µm
Fork width: 30 mm
Exchange option protected Recording range/Measuring range: Yes

Product type: Reflective light barrier

Type: BGL001A

Functions: Clear object detection

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: NPN

Switching frequency: 5000 Hz

Connector: M8 (3-pin)

Enclosure material: Zinc

Material properties: Die-cast

Transmitter type: SC laser red

: 30 m

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 68.00 mm

Width: 10.00 mm

Height: 50.00 mm

Depth: 68 m

(Ø): 0.3 m

Dim: (Ø x H) 0.3 m x 50.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes
