Name: BALLUFF Reflective light barrier BGL001W BGL001W Clear object detection 1 pc(s)
Brand: BALLUFF
SKU: 3417141

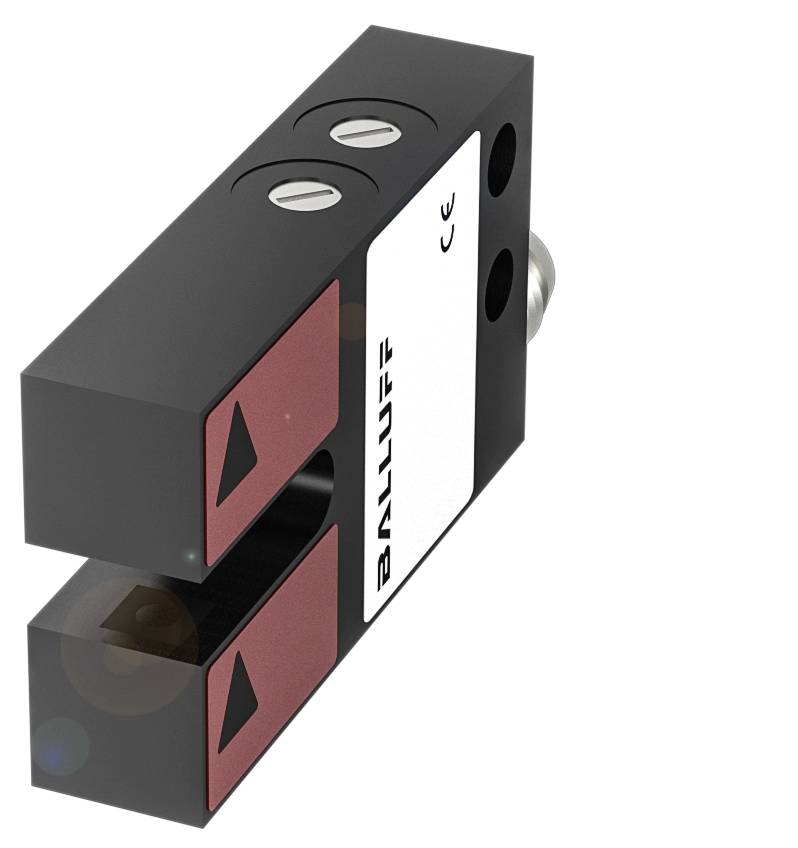

Balluff industrial sensor with rectangular housing, screw mountings and CE marking, suitable for precise measurements.

Image similar

Packaging type

Piece

Product type

Reflective light barrier

Functions

Clear object detection

Max. operating voltage

30.0 V

Connector

M8 (3-pin)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BGL001W standard photoelectric fork sensor made of metal

Dimensions 10 x 25 x 54 mm
Series A
PNP NO/NC interface
Functional principle: Fork light barrier
Fork width: 5 mm

Technical specifications

Main features:Dimension 10 x 25 x 54 mm
Active surface, material: Glass
Connection: Plug connector, M8x1 plug, 3-pin
Series A
Operating voltage Ub 10...30 VDC
Functional principle: Fork light barrier
Optical functional principle: One-way light barrier
Fork width: 5 mm
Housing material: Zinc, die-cast, painted
LED red light
Light spot size: Ø 1.0 mm light emission
Brand: Global
PNP NO/NC interface
Beam characteristics: Varied
Additional features:
Functional principle: Fork light barrier
Dimensions 10 x 25 x 54 mm
Mounting: M4 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 200 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 200 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.5 µF
Residual current l max. 50 µA
Residual ripple max. (% of Ue): 10%
Switching frequency 3000 Hz
Connection: Connector, M8x1 plug, 3-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Active surface, material: Glass
Switching output PNP NO/NC
Housing material: Zinc, die-cast, painted
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
Protection class IP67
Ambient temperature -10...60 °C
Setting option: Sensitivity|light/dark switching
Contacts, surface protection: Gold-plated
Brand: Global
Series A
Shape: Fork|straight connection
Display: Output function - yellow LED
Potentiometer 270° (2x)
Shutdown delay toff max.: 0,167 ms
ON delay max.: 0,167 ms
Idle current IO max. at Ue 25 mA
Voltage drop Ud max. at Ie 3 V
External light max. 5000 Lux
Optical functional principle: One-way light barrier
LED red light
Light spot size: Ø 1.0 mm light emission
Optical switch function: Dark / light switching
Beam characteristics: Varied
Wavelength 636 nm
Hysteresis H max. 0.1 mm
Repeat accuracy on side max.: 20 µm
Fork width: 5 mm
Smallest part type: 0.30 mm
Surface protection Mechanical characteristics: Painted
Exchange option protected Recording range/Measuring range: Yes

Packaging type: Piece

Product type: Reflective light barrier

Type: BGL001W

Functions: Clear object detection

Operating voltage: 24

Min. operating voltage: 10.0 V

Max. operating voltage: 30.0 V

Operating voltage: 10.0 - 30.0 V

Contact type: 1 breaker
1 maker

Outputs: PNP

Switching frequency: 3000 Hz

Connector: M8 (3-pin)

Enclosure material: Zinc

Material properties: Die-cast

Transmitter type: LED red

Wavelength: 636 nm

: IP67

Min. temperature: -10 °C

Max. temperature: 60 °C

Length: 54.00 mm

Width: 10.00 mm

Height: 25.00 mm

Depth: 54 m

Dim: (L x W x H) 54.00 x 10.00 x 25.00 mm

Content: 1 pc(s)

Nominal voltage: 30.0 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417141 BALLUFF Reflective light barrier BGL001W BGL001W Clear object detection 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417141 BALLUFF Reflective light barrier BGL001W BGL001W Clear object detection 1 pc(s)

Description

Our fork light barriers with transmitter and receiver in one housing are already adjusted. This reduces your time and effort, saves valuable commissioning time and supports a reliable process. When it comes to accuracy, the Balluff fork light barriers are unmatched. Our comprehensive portfolio offers reliable solutions. Also for special applications such as for transparent detection, water detection and rail edge control. Series=A, dimension=10 x 25 x 54 mm, fork width=5 mm, interface=PNP NO/NC contact (NO/NC), operating principle=fork light barrier, operational principle optical=one-way light barrier, Beam characteristic=divergent, light type=LED red light, light spot size=Ø 1.0 mm light output, connection=connector, M8x1 plug, 3-pole, housing material=zinc, Die-cast, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEACWEEE, Brand=Global

This text is machine translated.
