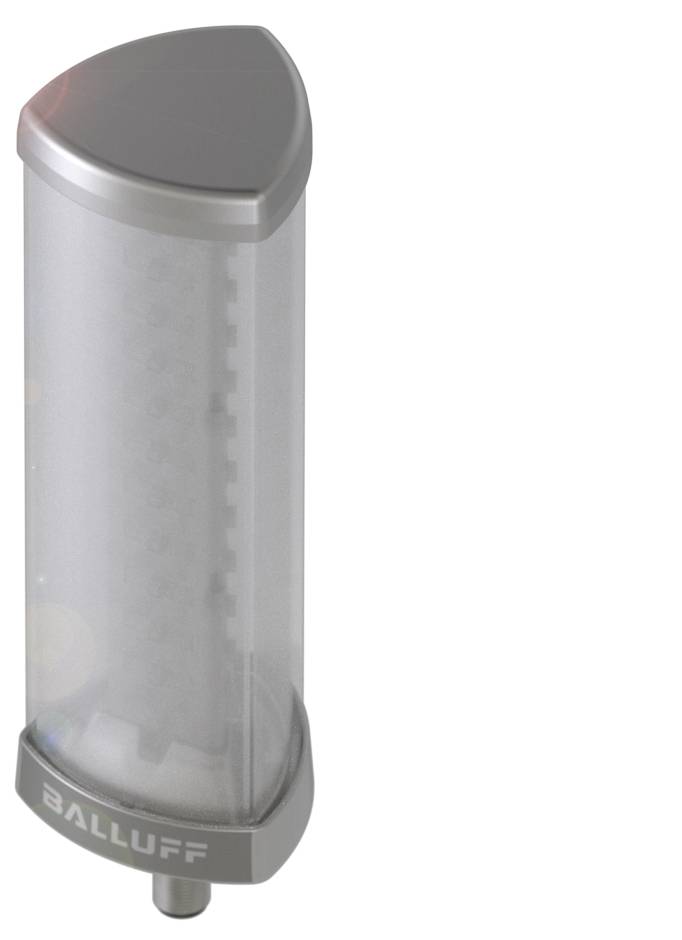

Image similar
BALLUFF Signal tower BNI0088 BNI IOL-801-102-Z036 LED Yellow, White, Green, Blue, Red , Orange 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Balluff BNI0088 Smart LED signal tower with different number of segments
- Connection: M12x1 connector, 4-pin
- Operating voltage Ub 18...30.2 VDC
- Interface: IO-Link 1.1
- Operational principle: Indicator light
- Segments, number max.: 3
Technical specifications
- Main features:Dimension 60 x 60 x 213 mm
- Connection: M12x1 connector, 4-pin
- Mounting: Screws M18
- Operating voltage Ub 18...30.2 VDC
- Setting option: Function display
- Colors predefined: Yellow
- White
- Green
- Blue
- red
- orange
- configurable
- Function display: Running light mode
- Level mode
- Segment mode
- Flexi mode
- Operational principle: Indicator light
- PC, transparent, Cu 15 µm, Ni 15 µm
- Zinc diecasting
- Process data IN: 1 bytes
- Process data OUT: 8 bytes
- Process data cycle min.: 7.2 ms
- Interface: IO-Link 1.1
- Protection system: IP65
- Segments, number max.: 3
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...50 °C
- Additional function: Extended process data
- Additional features:
- Scope of delivery: Spring ring|rubber foot|quick start guide|screw M4x6|hex nut M18x1
- Dimensions 60 x 60 x 213 mm
- Mounting: Screws M18
- Function display: Running light mode|Level mode|Segment mode|Flexi mode
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- Connection: M12x1 4-pin connector, A-coded
- MTTF (40 °C) 52.6 a
- Housing material: PC, transparent, Cu 15 µm, Ni 15|µm|Zinc die cast
- Lifetime: Min. 50000 h
- Display IO-Link communication: Green LED
- Module supply display: Green LED
- Dimmable: Yes
- Setting option: Function display
- Predefined colors: Yellow|white|green|blue|red|orange|configurable
- Colours, number: 7
- Segments, number max.: 3
- Buzzer function: No.
- Contacts, surface protection: Nickel-plated 2 µm/gold-plated 0.4 µm
- Case shielding: Yes
- Surface protection: Cu 15 µm|Ni 15 µm
- Application weight 400.00 g
- Mounting earthing cable M4
- Error signal: 245 mA at 24V
- Frame type 2.V
- IO-Link Version: 1.1
- IO-Link function: Device
- Process data OUT: 8 bytes
- Process data cycle min.: 7.2 ms
- Process data IN: 1 bytes
- Product type
Signal tower
- Operating voltage
24 V DC
- Lighted picture
Multi-colour
- Height
213 mm
- Features
LED
IP65
- Dim
(L x W x H) 60 x 60 x 213 mm
- Length
60 mm
- Width
60 mm
- Colour
Yellow
White
Green
Blue
Red
Orange
- Material
PC
- Type
BNI IOL-801-102-Z036
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416493 BALLUFF Signal tower BNI0088 BNI IOL-801-102-Z036 LED Yellow, White, Green, Blue, Red , Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3416493 BALLUFF Signal tower BNI0088 BNI IOL-801-102-Z036 LED Yellow, White, Green, Blue, Red , Orange 1 pc(s)
Description
Balluff offers the SmartLight LED signal towers and the SmartLight Indicator signal displays for reliable monitoring of the condition and application areas of machines and systems. With these signal lights you can visualize your desired information in a convenient way.The SmartLight LED signal tower allows you to display critical machine states and simply read the trends, patterns and trends of physical quantities based on the color scale. Operating principle = indicator lamp, interface = IO-Link 1.1, operating voltage Ub = 18...30.2 VDC, connection = M12x1 plug, 4-pole, segments, number max. = 3, colors predefined = yellow, white, green, blue, red, orange, configurable, function display = running light mode, level mode, segment mode, Flexi mode, setting option = function display, additional function = extended process data, dimension = 60 x 60 x 213 mm, housing material = PC, transparent, Cu 15 µm, Ni 15 µm Zinc die casting, attachment = screws M18, ambient temperature = 5...50 °C, protection type = IP65, transmission rate = COM2 (38.4 kBaud), process data cycle min. = 7.2 ms, process data IN = 1 bytes, process data OUT = 8 bytes
