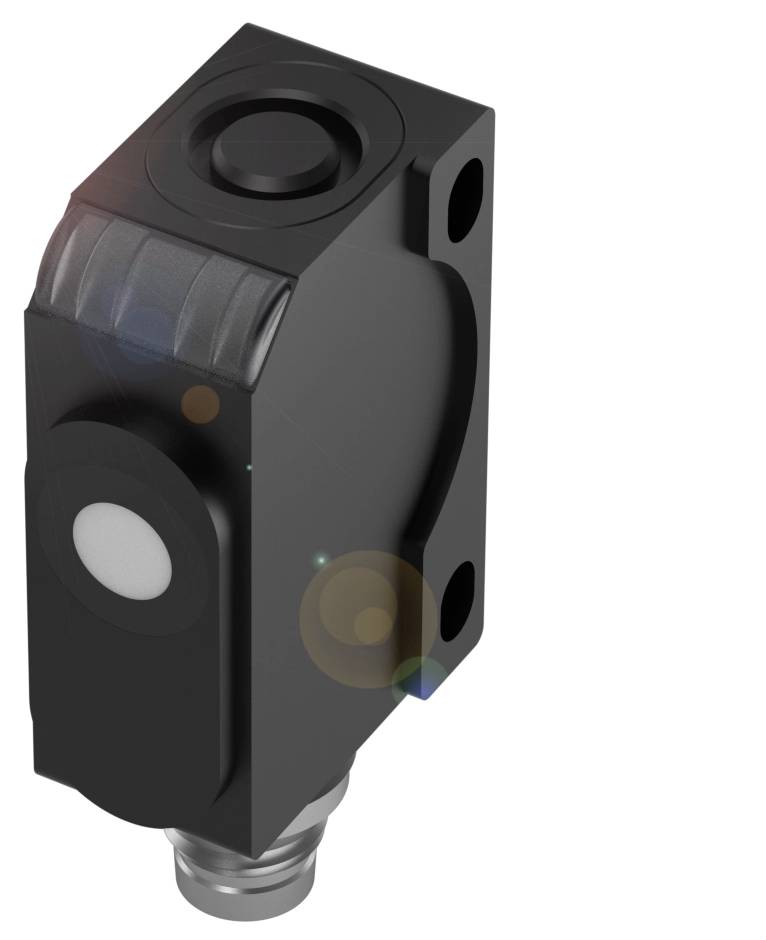

BALLUFF Ultrasonic sensor Ultrasound PNP BUS004L Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
240 mm
Datasheet (PDF)
Highlights & Details
Balluff BUS004L Cubic design and analogue or digital output
- Connection: Plug connector, M8x1 plug, 4-pin
- Design: Square-shaped
- Switching output PNP NO/NC
- ABS casing material
- Active surface, material: PU foam/epoxy resin/glass
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Connection: Plug connector, M8x1 plug, 4-pin
- Design: Square-shaped
- Operating voltage Ub 20...30 VDC
- ABS casing material
- Range 50...350 mm
- Switching output PNP NO/NC
- Switching frequency 25 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Dimensions 20.1 x 42.5 x 23 mm
- Mounting: M3 screw
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 20...30 VDC
- Switching frequency 25 Hz
- M8x1 connection, 4-pin
- Short-circuit protection: Yes
- Rated switching distance Sn: 240 mm
- MTTF (40 °C) 1657 a
- Active surface, material: PU foam/epoxy resin/glass
- Switching output PNP NO/NC
- ABS casing material
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Output current max. 200 mA.
- Setting option: Factory setting (Reset)|Key lock on/off|NO/NC|Switching distance, 2 values|Operating mode
- R06K1 series
- Display: Output function - LED yellow|Mode - LED green, flashes|LED green: Operating voltage|Switching function - LED green, flashes
- Adjuster: Button
- Storage temperature: -40...85 °C
- Hysteresis H max. 2 mm
- Application: Object detection
- Measurement range 50...350 mm
- Operating mode: Reflection sensor (window)|Reflection sensor (switching point)|Reflection sensor
- Input function: Synchronization signal
- Power consumption max. 35 mA
- Synchronisation: External, any number of sensors
- Resolution ≤ 0,037 mm
- Repeatability ± 0.15 % FS
- Reverse polarity protected detection range/measuring range: Yes
- Ultrasonic frequency Electrical connection: 500 kHz
- Packaging type
Piece
- Product type
Ultrasonic sensor
- Type
BUS004L
- Min. operating voltage
20 V
- Max. operating voltage
30 V
- Operating voltage
20 - 30 V
- Outputs
PNP
- Switching distance (max.)
240 mm
- Switching frequency
25 Hz
- Model
Ultrasound
- Connector
Plug
- Enclosure material
Acrylonitrile butadiene styrene
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
23.0 mm
- Width
20.1 mm
- Height
42.5 mm
- Dim
(L x W x H) 23.0 x 20.1 x 42.5 mm
- Max. power rating per slot
200 mA
- Material
Acrylonitrile butadiene styrene
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416463 BALLUFF Ultrasonic sensor Ultrasound PNP BUS004L Piece
User & Safety Instructions
User & Safety Instructions 3416463 BALLUFF Ultrasonic sensor Ultrasound PNP BUS004L Piece
Description
Contact-free measurement of fill levels, heights or sag, they can be used universally independent of color and surface texture. High resolution, large ranges and small blind zones guarantee extreme precision. The ultrasound sensors differ in their voltage or current output and versions with an additional switching output. Design = rectangular, switching output = PNP NO/NC (NO/NC), connection = plug connector, M8x1-plug, 4-pin, Housing material=ABS, Active surface, material=PU-foam/Epoxy resin/glass, range=50...350 mm, switching frequency=25 Hz, Approval/conformity=CEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=20...30 VDC
