Bals Elektrotechnik 1135 1135 CEE wall socket 16.0 A 4-pin 110 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 16 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- RAL number: 1012
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Mounting type: Inside mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
110 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Surface-mounted
IP67
- Factory colour
Yellow
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
110 V
Surface mounted (plaster)
1012
Gland nut
4
TRUE
Plastic
Inner lying mounting
Untreated
16 A
Screwed terminal
CuZn
IP67
FALSE
4 h
Yellow
110 V (50+60 Hz) yellow
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147207 Bals Elektrotechnik 1135 1135 CEE wall socket 16.0 A 4-pin 110 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147207 Bals Elektrotechnik 1135 1135 CEE wall socket 16.0 A 4-pin 110 V 1 pc(s)
Description

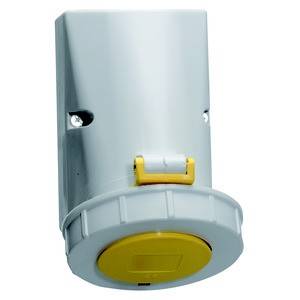

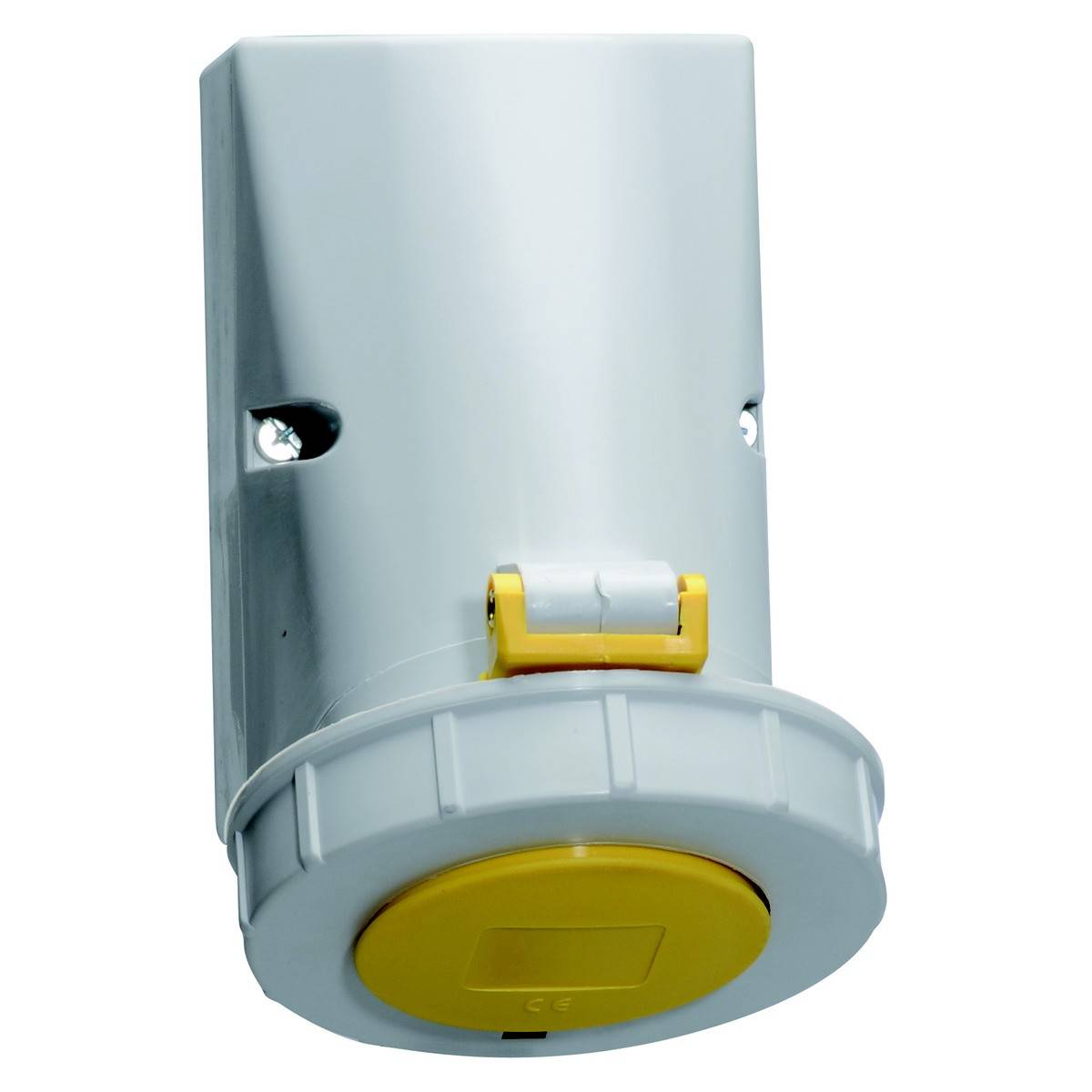

Wall socket
16A 4P (3P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Body size: 100x75 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry 1xM20 at the top
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035

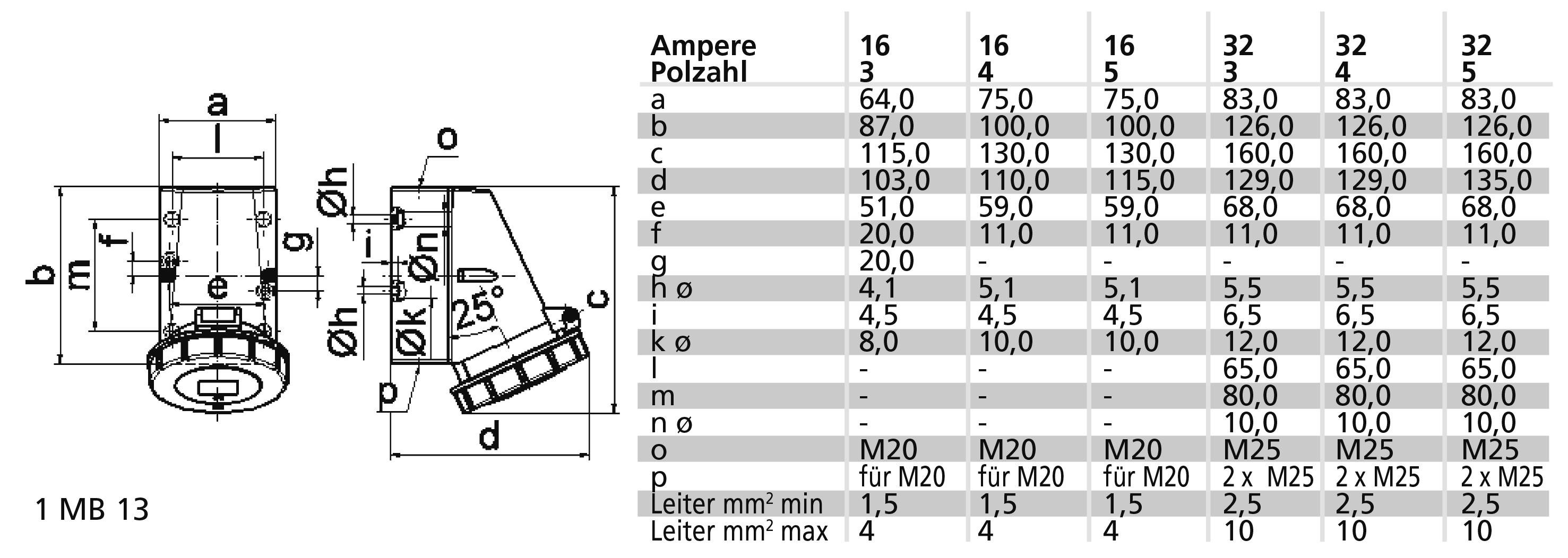

Device height: 131 mm, device width: 79 mm, device depth: 115 mm
Other technical features: The cable entry is open at the top, sealed at the bottom and rear once, the lower part of the housing can be rotated by 180°
