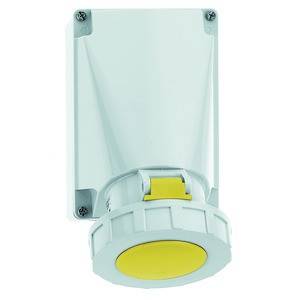

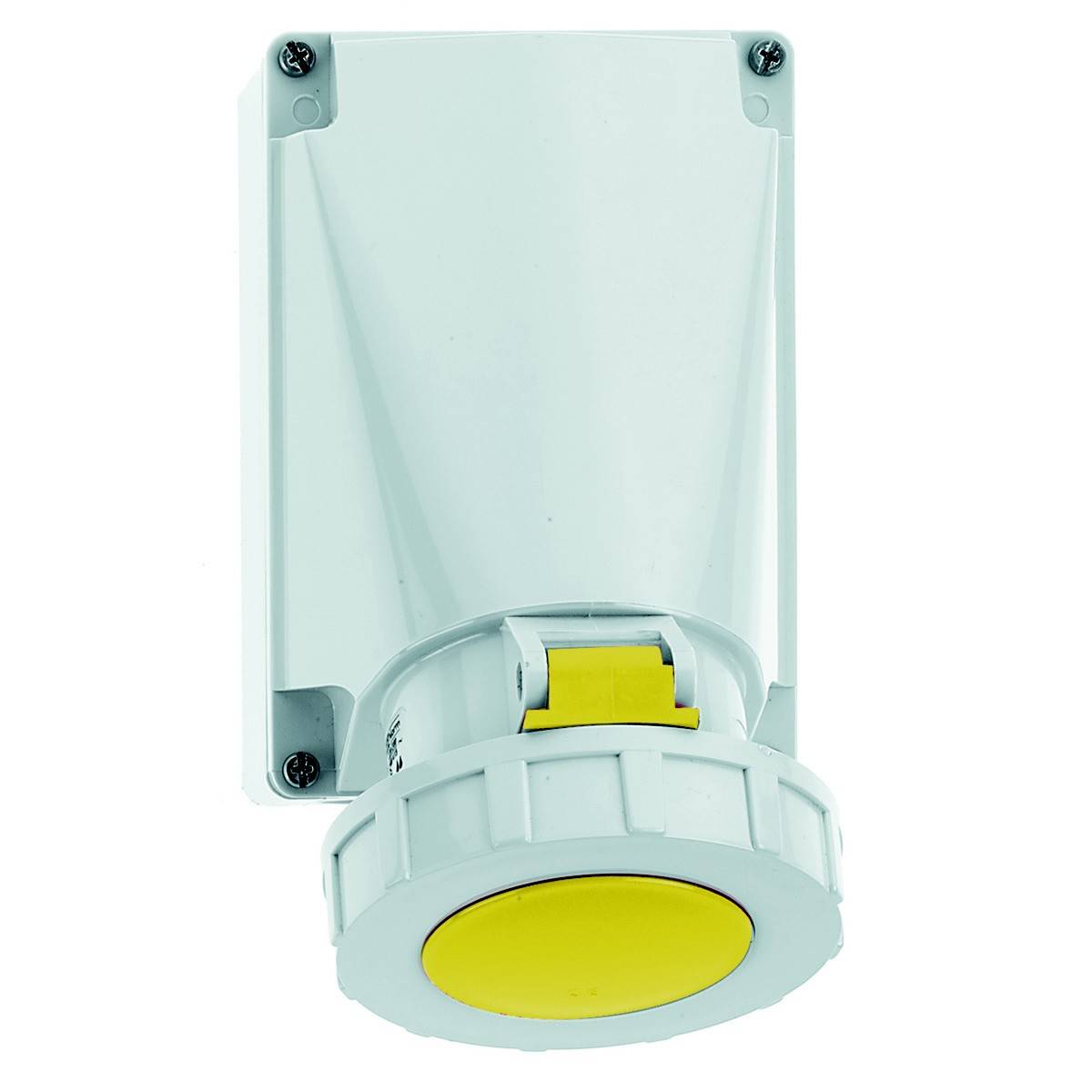

Bals Elektrotechnik 1156 1156 CEE wall socket 63.0 A 3-pin 110 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 63 A.
- Number of poles: 3
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- RAL number: 1012
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Mounting type: Inside mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
110 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
- Type
Surface-mounted
IP67
- Factory colour
Yellow
- Content
1 pc(s)
- Number of pins
3
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
110 V
Surface mounted (plaster)
1012
Gland nut
3
TRUE
Plastic
Inner lying mounting
Nickel-plated
63 A
Screwed terminal
CuZn
IP67
FALSE
4 h
Yellow
110 V (50+60 Hz) yellow
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147329 Bals Elektrotechnik 1156 1156 CEE wall socket 63.0 A 3-pin 110 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147329 Bals Elektrotechnik 1156 1156 CEE wall socket 63.0 A 3-pin 110 V 1 pc(s)
User & Safety Instructions 3147329 Bals Elektrotechnik 1156 1156 CEE wall socket 63.0 A 3-pin 110 V 1 pc(s)
Description
Wall socket
63A 3P (2P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 2xM32 bottom
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
63A 3P (2P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 2xM32 bottom
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
