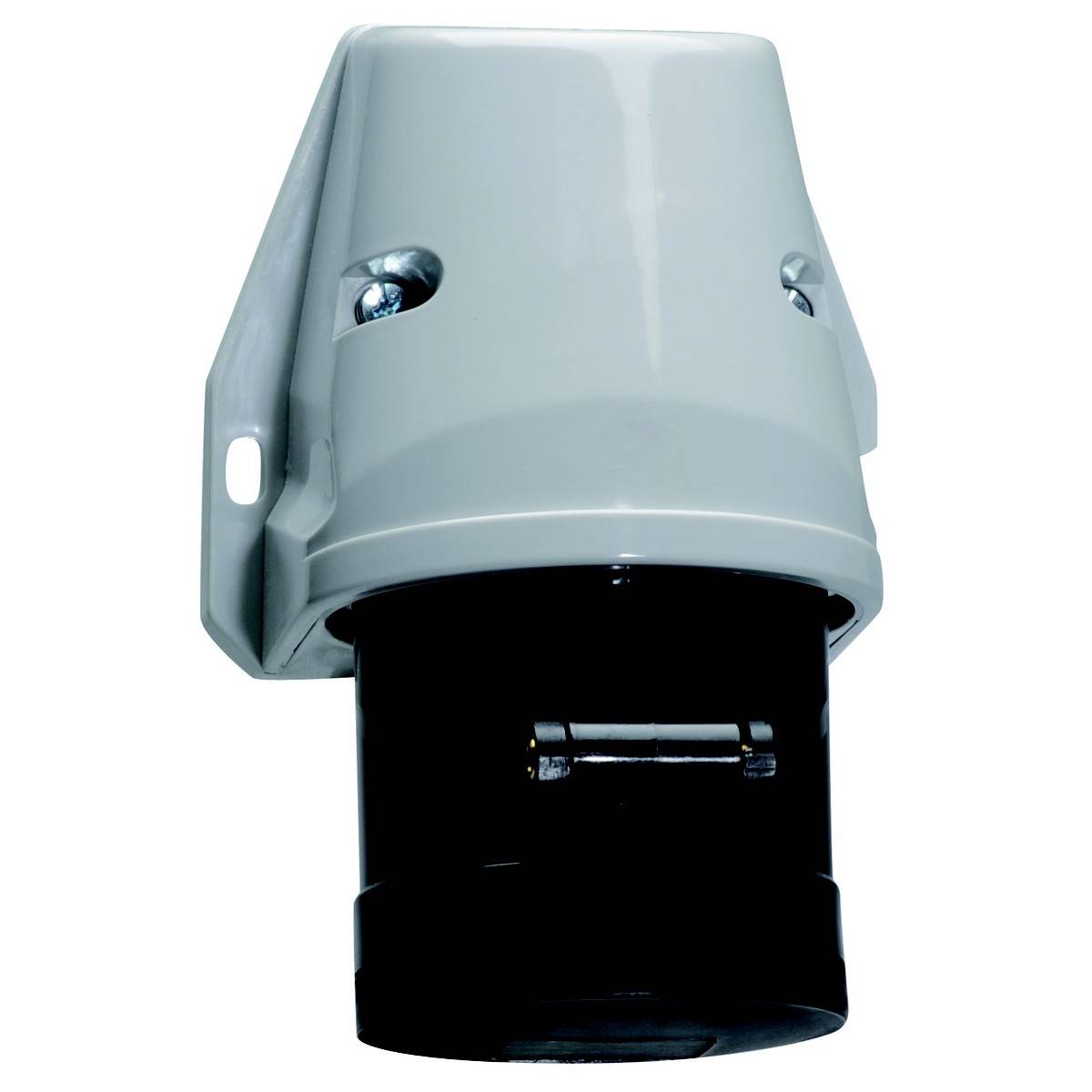

Bals Elektrotechnik 11726 11726 CEE wall socket 16.0 A 5-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- RAL number: 9005
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Mounting method: Outdoor mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
500 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type
Surface-mounted
IP44
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145945 Bals Elektrotechnik 11726 11726 CEE wall socket 16.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3145945 Bals Elektrotechnik 11726 11726 CEE wall socket 16.0 A 5-pin 500 V 1 pc(s)
Description
Wall socket
16A 5P (3P+N+PE) 500V (277/480 - 288/500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
90x87 mm (HxB) housing size
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Collar black RAL 9005, hinged lid black RAL 9005, lower section gray RAL 7035, housing top gray RAL 7035

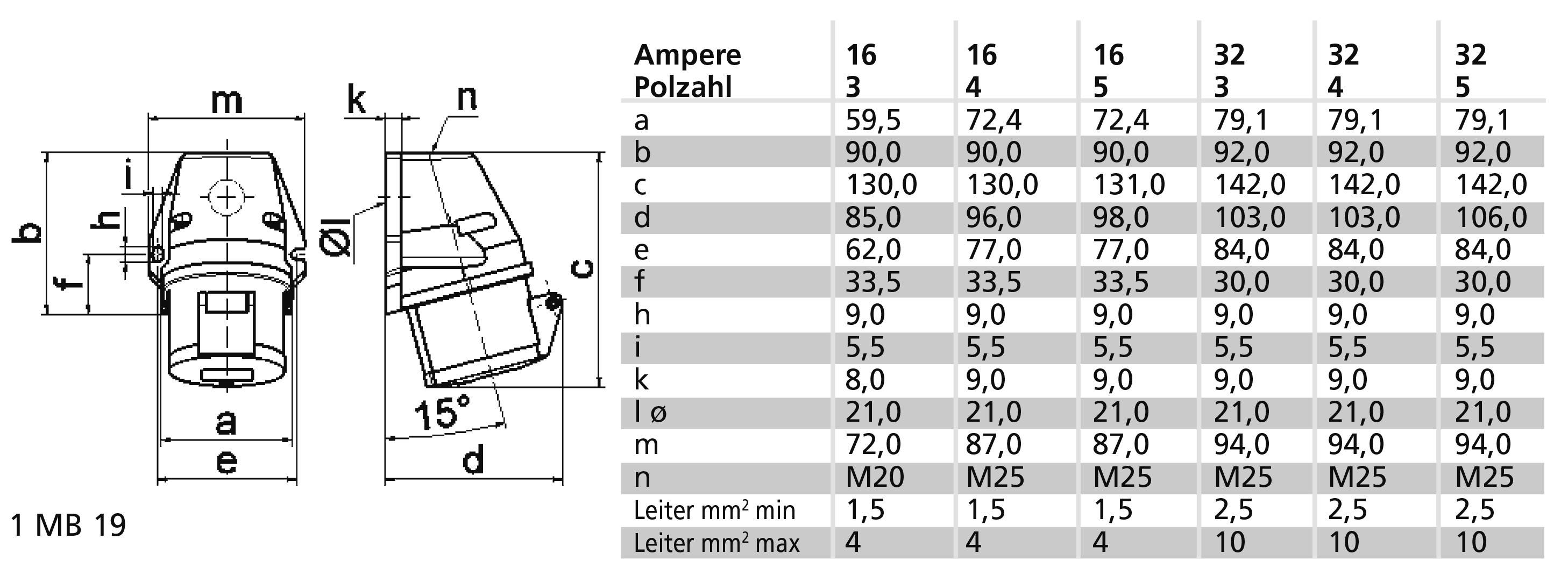

Device height: 131 mm, device width: 87 mm, device depth: 99 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
