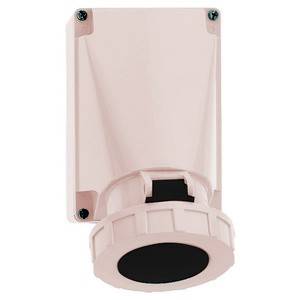

Bals Elektrotechnik 11824 11824 CEE wall socket 63.0 A 4-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 63 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- RAL number: 9005
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Mounting type: Inside mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
500 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
- Type
Surface-mounted
IP67
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146481 Bals Elektrotechnik 11824 11824 CEE wall socket 63.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146481 Bals Elektrotechnik 11824 11824 CEE wall socket 63.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions 3146481 Bals Elektrotechnik 11824 11824 CEE wall socket 63.0 A 4-pin 500 V 1 pc(s)
Description
TE wall socket
63A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 2xM32 bottom
Device color: Light beige bayonet ring, hinged cover black RAL 9005, lower housing part light beige, lower housing of light beige
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
63A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 2xM32 bottom
Device color: Light beige bayonet ring, hinged cover black RAL 9005, lower housing part light beige, lower housing of light beige
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
