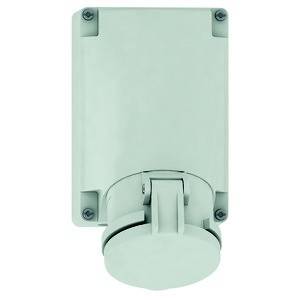

Bals Elektrotechnik 11889 11889 CEE wall socket 63.0 A 5-pin 50 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: >50 V gray
- Time setting 1 h
- Colour code: Grey
- RAL number: 7035
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Mounting type: Inside mounting
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
50 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
- Type
Surface-mounted
IP44
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
50 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146471 Bals Elektrotechnik 11889 11889 CEE wall socket 63.0 A 5-pin 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146471 Bals Elektrotechnik 11889 11889 CEE wall socket 63.0 A 5-pin 50 V 1 pc(s)
Description
TE wall socket
63A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical color: Grey RAL 7035
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 2xM32 bottom
Colour: Hinged lid gray RAL 7035, lower housing gray RAL 7035, upper housing part gray RAL 7035
Device height: 226 mm, device width: 118 mm, device depth: 173 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
63A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical color: Grey RAL 7035
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 2xM32 bottom
Colour: Hinged lid gray RAL 7035, lower housing gray RAL 7035, upper housing part gray RAL 7035
Device height: 226 mm, device width: 118 mm, device depth: 173 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
