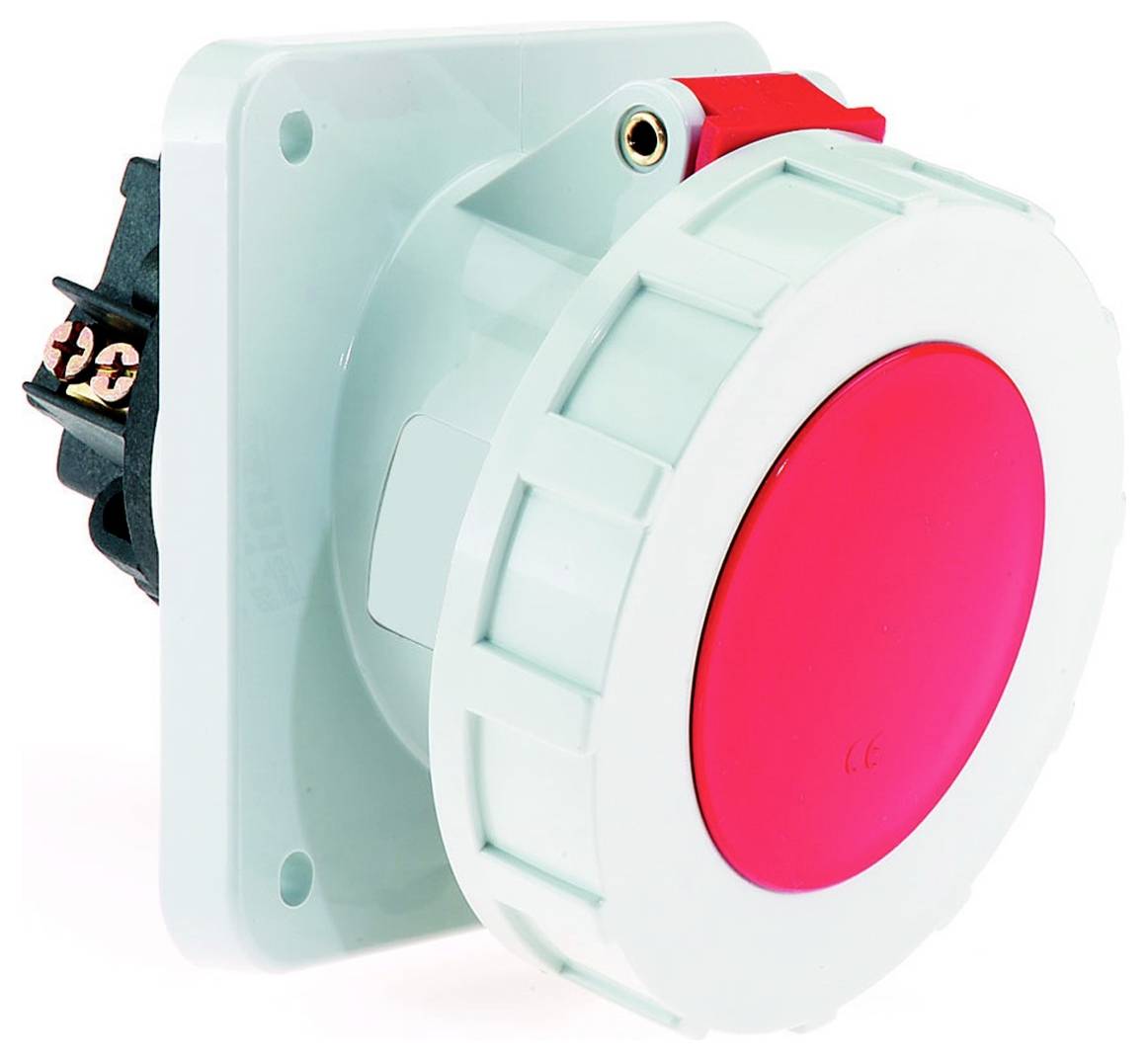

Bals Elektrotechnik 12002 12002 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 3000
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 9 h
- Colour code: Red
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 114 mm
- Hole spacing vertical 90 mm
- Hole spacing horizontal 90 mm
- Flange size horizontal 114 mm
- Product type
CEE add-on socket
- Cores
3
- Dim
(L x W x H) 147 x 114 x 125 mm
- Length
147 mm
- Width
114 mm
- Height
125 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545488 Bals Elektrotechnik 12002 12002 CEE add-on socket 1 pc(s)
Description
Mounting socket angled
63A 3P (2P+PE) 400V (380 - 415V~) 9HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 125 mm, device width: 114 mm, device depth: 147 mm
Flange size vertical 114 mm, flange dimension horizontal 114 mm
Vertical hole spacing 90 mm, horizontal hole spacing 90 mm
Other technical characteristics: The slope is 15°
This text is machine translated.
63A 3P (2P+PE) 400V (380 - 415V~) 9HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 125 mm, device width: 114 mm, device depth: 147 mm
Flange size vertical 114 mm, flange dimension horizontal 114 mm
Vertical hole spacing 90 mm, horizontal hole spacing 90 mm
Other technical characteristics: The slope is 15°
This text is machine translated.
