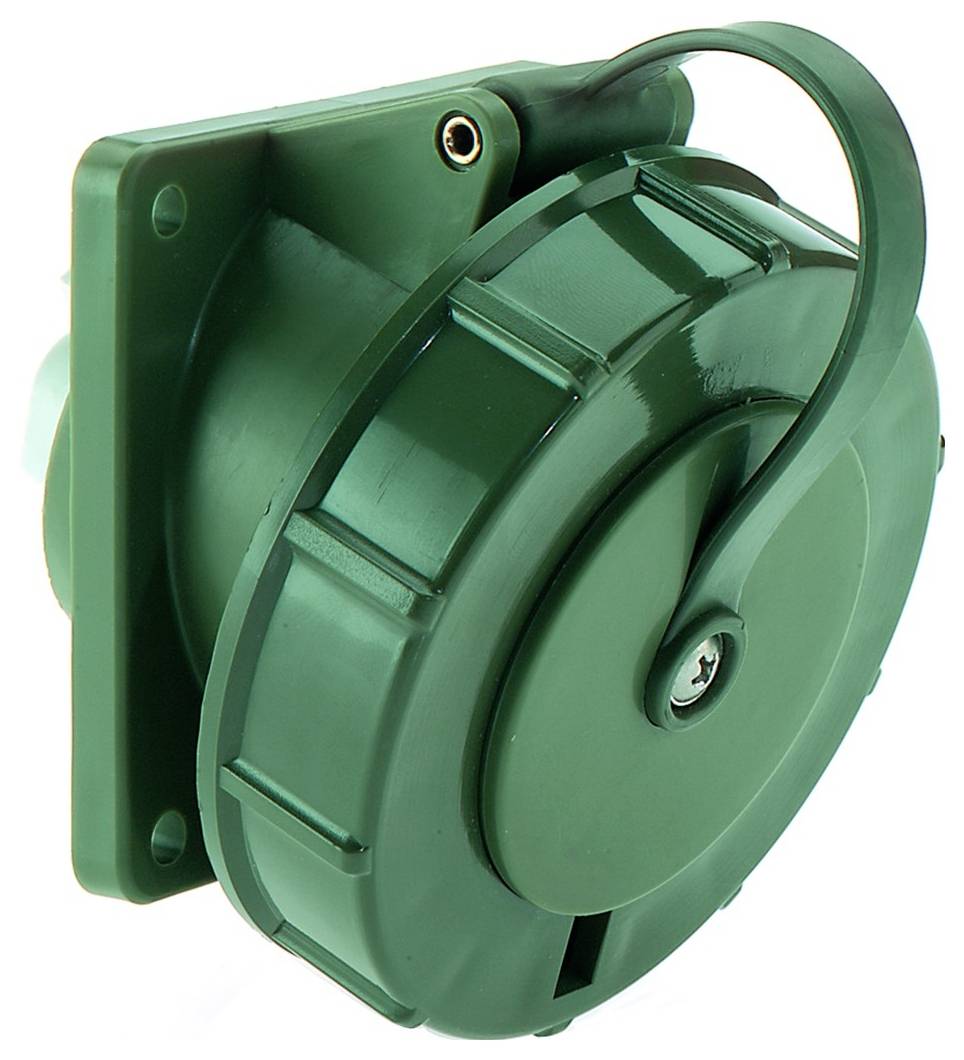

Bals Elektrotechnik 120027 120027 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Mating direction: Angled
- Flange size vertical 85 mm
- Hole spacing vertical 70 mm
- Hole spacing horizontal 70 mm
- Flange size horizontal 85 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
4
- Factory colour
RAL 6031 (Brass Green)
- Dim
(W x H) 85 mm x 90 mm
- Width
85 mm
- Height
90 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547803 Bals Elektrotechnik 120027 120027 CEE add-on socket 1 pc(s)
Description
Mounting socket Quick-Connect TN. Angled
16A 4p (3P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, gray enclosure RAL 7035
Device height: 90 mm, device width: 85 mm, device depth: 99 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The inclination is 20°, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 BS 022
This text is machine translated.
16A 4p (3P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9, gray enclosure RAL 7035
Device height: 90 mm, device width: 85 mm, device depth: 99 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The inclination is 20°, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 BS 022
