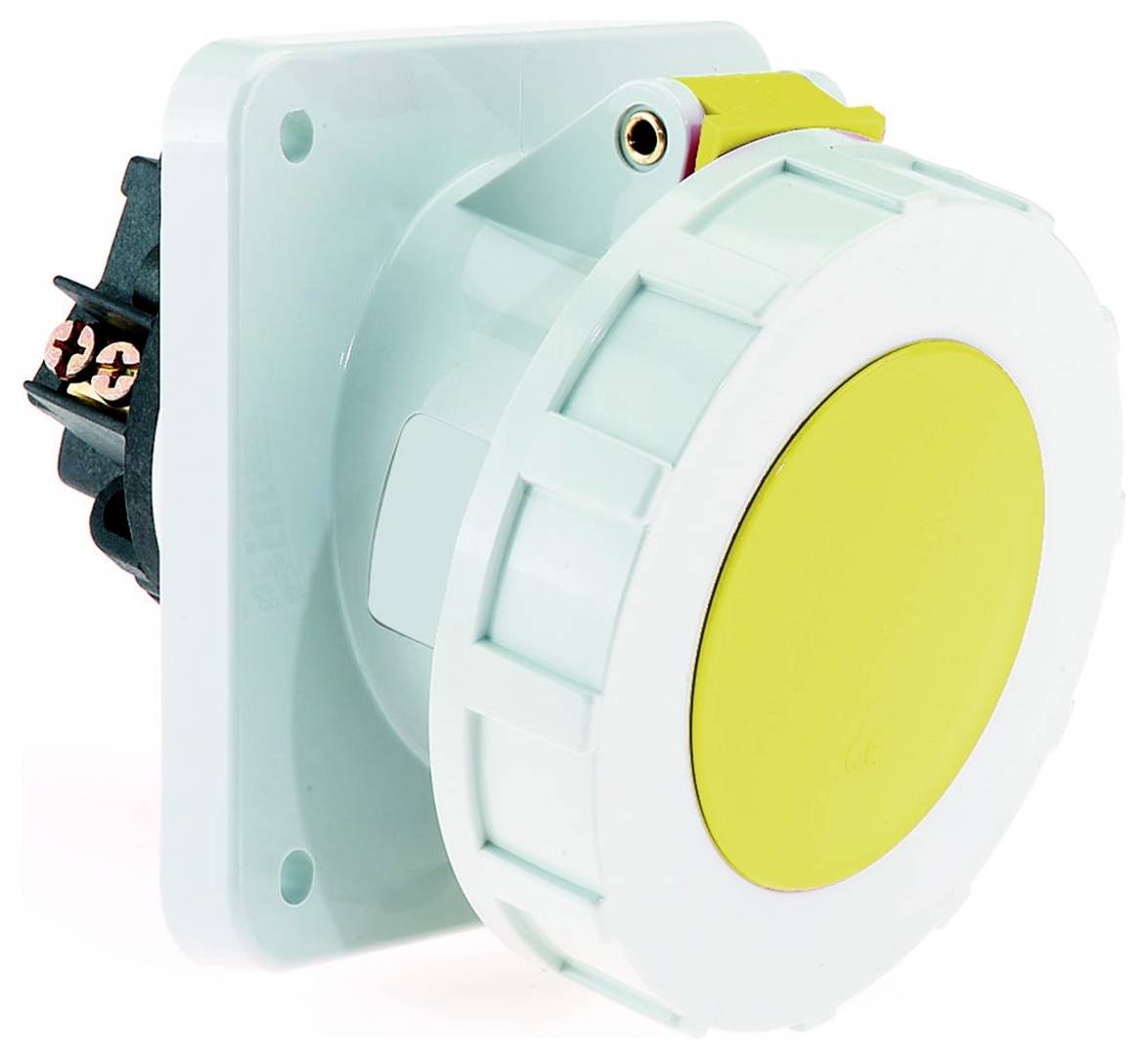

Image similar
Bals Elektrotechnik 12004 12004 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 1012
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 114 mm
- Hole spacing vertical 90 mm
- Hole spacing horizontal 90 mm
- Flange size horizontal 114 mm
- Product type
CEE add-on socket
- Cores
5
- Factory colour
RAL 1012 (Lemon Yellow)
- Dim
(L x W x H) 147 x 114 x 125 mm
- Length
147 mm
- Width
114 mm
- Height
125 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547590 Bals Elektrotechnik 12004 12004 CEE add-on socket 1 pc(s)
Description
Mounting socket angled
63A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 125 mm, device width: 114 mm, device depth: 147 mm
Flange size vertical 114 mm, flange dimension horizontal 114 mm
Vertical hole spacing 90 mm, horizontal hole spacing 90 mm
Other technical characteristics: The slope is 15°
