Bals Elektrotechnik 12169 12169 CEE add-on socket 32.0 A 3-pin 230 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of poles: 3
- Time setting 6 h
- Colour code: Green
- RAL number: 6031
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- Mating direction: Angled
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Flange size vertical 85 mm
- Hole spacing vertical 70 mm
- Flange size horizontal 85 mm
- Hole spacing horizontal 70 mm
- Product type
CEE add-on socket
- Nominal voltage
230 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
Angled
IP67
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
3
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135017 Bals Elektrotechnik 12169 12169 CEE add-on socket 32.0 A 3-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135017 Bals Elektrotechnik 12169 12169 CEE add-on socket 32.0 A 3-pin 230 V 1 pc(s)
Description

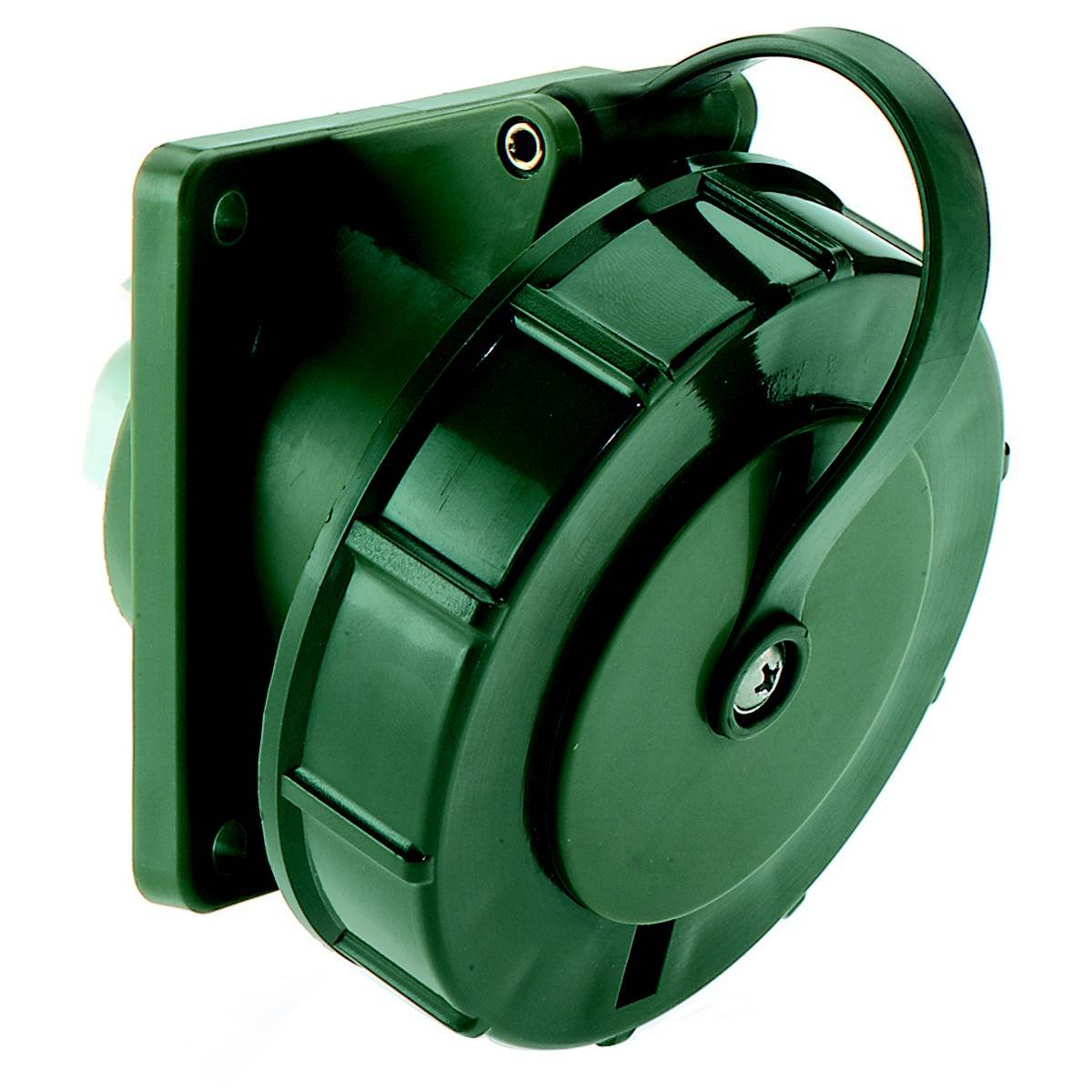

Panel-mounted socket QUICK-connect TN
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9, gray enclosure RAL 7035

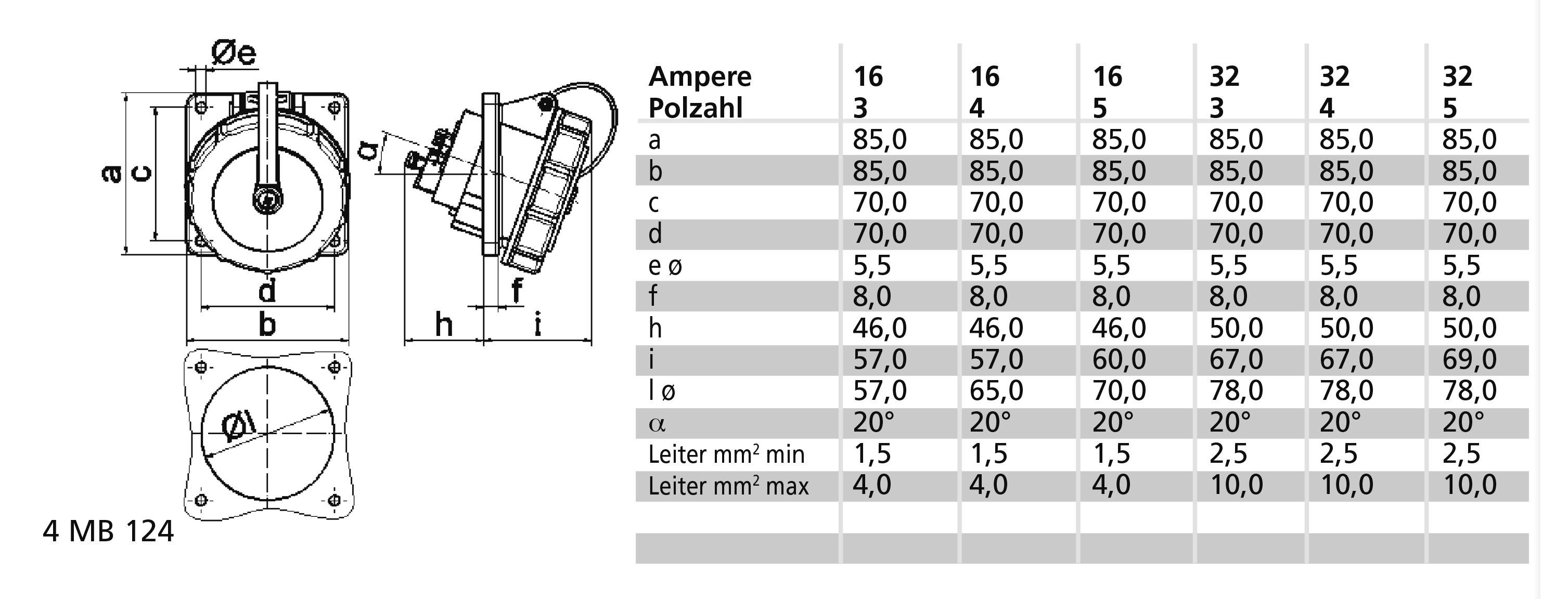

Device height: 102 mm, device width: 94 mm, device depth: 121 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The inclination is 20°, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 BS 042
This text is machine translated.
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9, gray enclosure RAL 7035
Device height: 102 mm, device width: 94 mm, device depth: 121 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The inclination is 20°, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 BS 042
