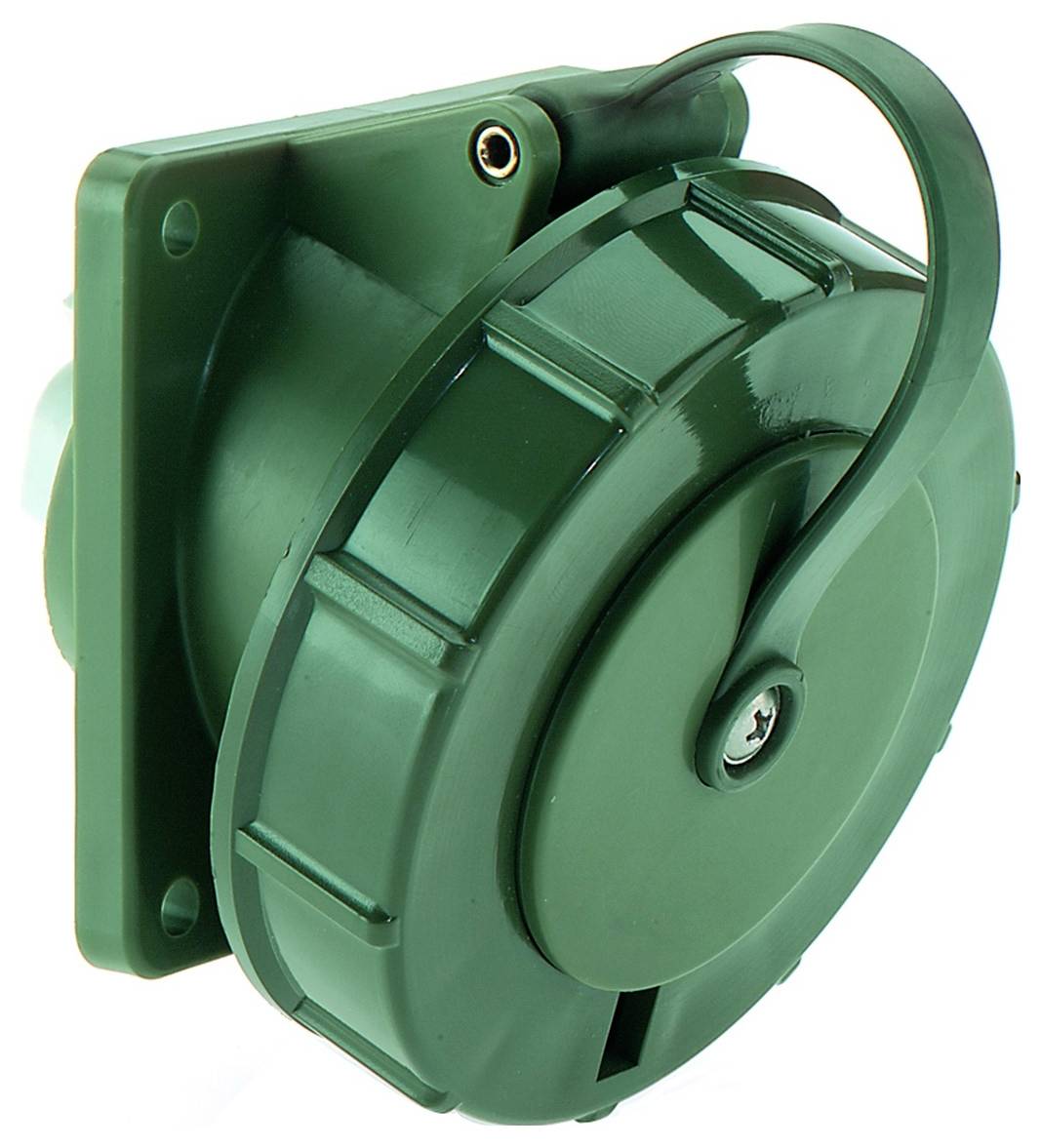

Bals Elektrotechnik 12239 12239 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Green
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Mating direction: Angled
- Flange size vertical 114 mm
- Hole spacing vertical 90 mm
- Hole spacing horizontal 90 mm
- Flange size horizontal 114 mm
- Product type
CEE add-on socket
- Cores
3
- Factory colour
RAL 6031 (Brass Green)
- Dim
(L x W x H) 144 x 114 x 124 mm
- Length
144 mm
- Width
114 mm
- Height
124 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546011 Bals Elektrotechnik 12239 12239 CEE add-on socket 1 pc(s)
Description
Mounting socket TN inclined
63A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 124 mm, device width: 114 mm, device depth: 144 mm
Flange size vertical 114 mm, flange dimension horizontal 114 mm
Vertical hole spacing 90 mm, horizontal hole spacing 90 mm
Other technical features: A pilot contact is present, the inclination is 15°, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 BS 047
