Bals Elektrotechnik 12368 12368 CEE add-on socket 32.0 A 4-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Number of pins: 4
- Time setting 7 h
- Colour code: Black
- RAL number: 9005
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Mating direction: Angled
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Flange size vertical 85 mm
- Hole spacing vertical 70 mm
- Flange size horizontal 85 mm
- Hole spacing horizontal 70 mm
- Product type
CEE add-on socket
- Nominal voltage
500 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
- Type
Angled
IP44
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146171 Bals Elektrotechnik 12368 12368 CEE add-on socket 32.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146171 Bals Elektrotechnik 12368 12368 CEE add-on socket 32.0 A 4-pin 500 V 1 pc(s)
Description

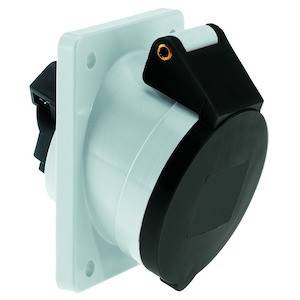

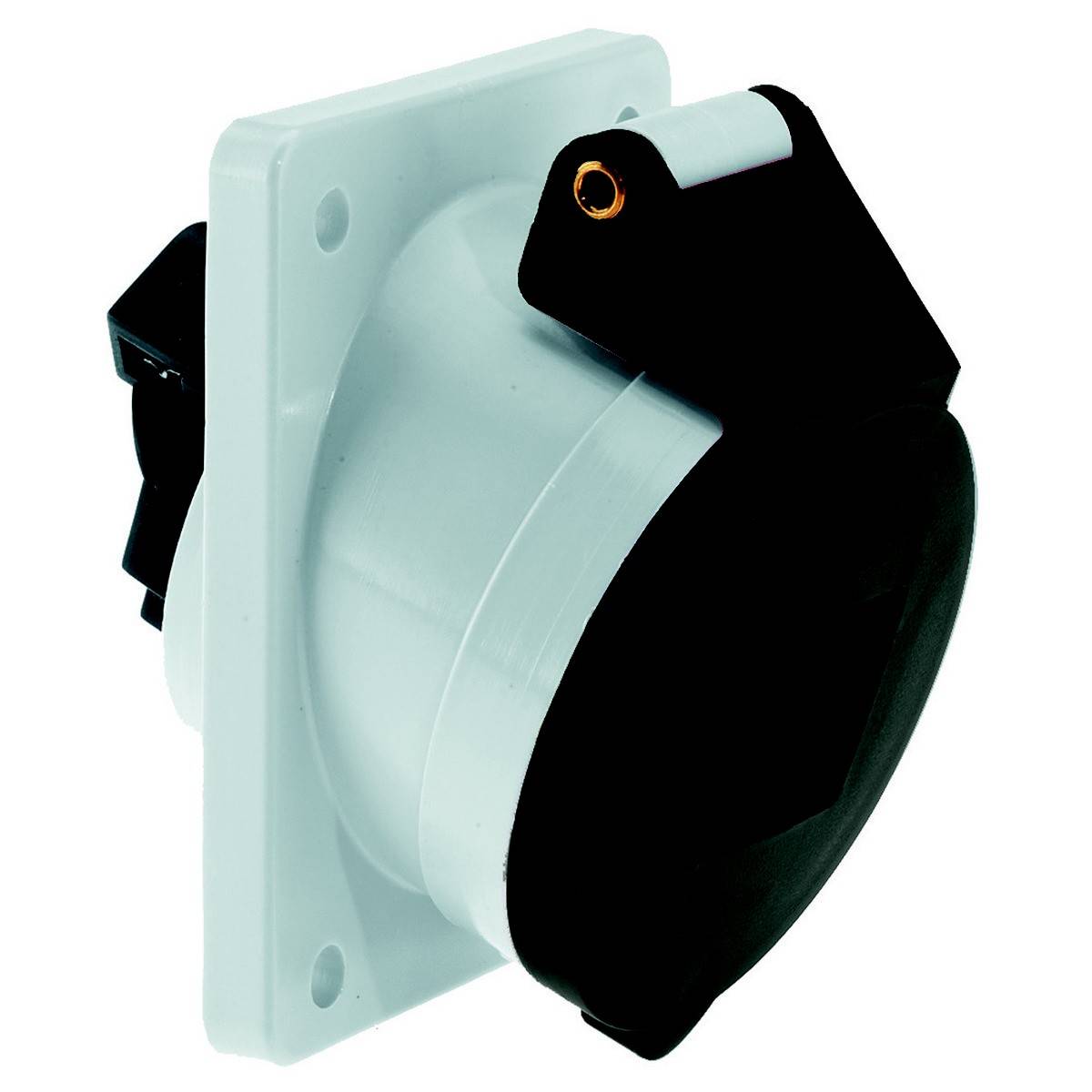

Mounting socket angled
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid black RAL 9005, housing gray RAL 7035

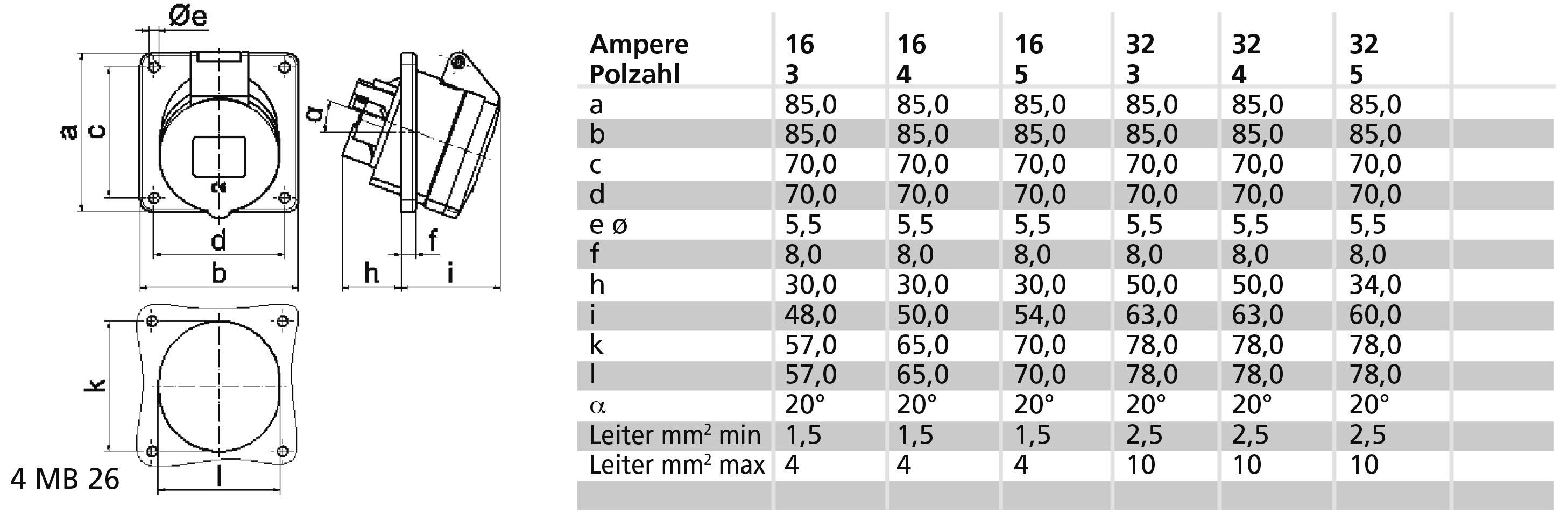

Device height: 94 mm, device width: 85 mm, device depth: 114 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid black RAL 9005, housing gray RAL 7035
Device height: 94 mm, device width: 85 mm, device depth: 114 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Other technical characteristics: The slope is 20°
