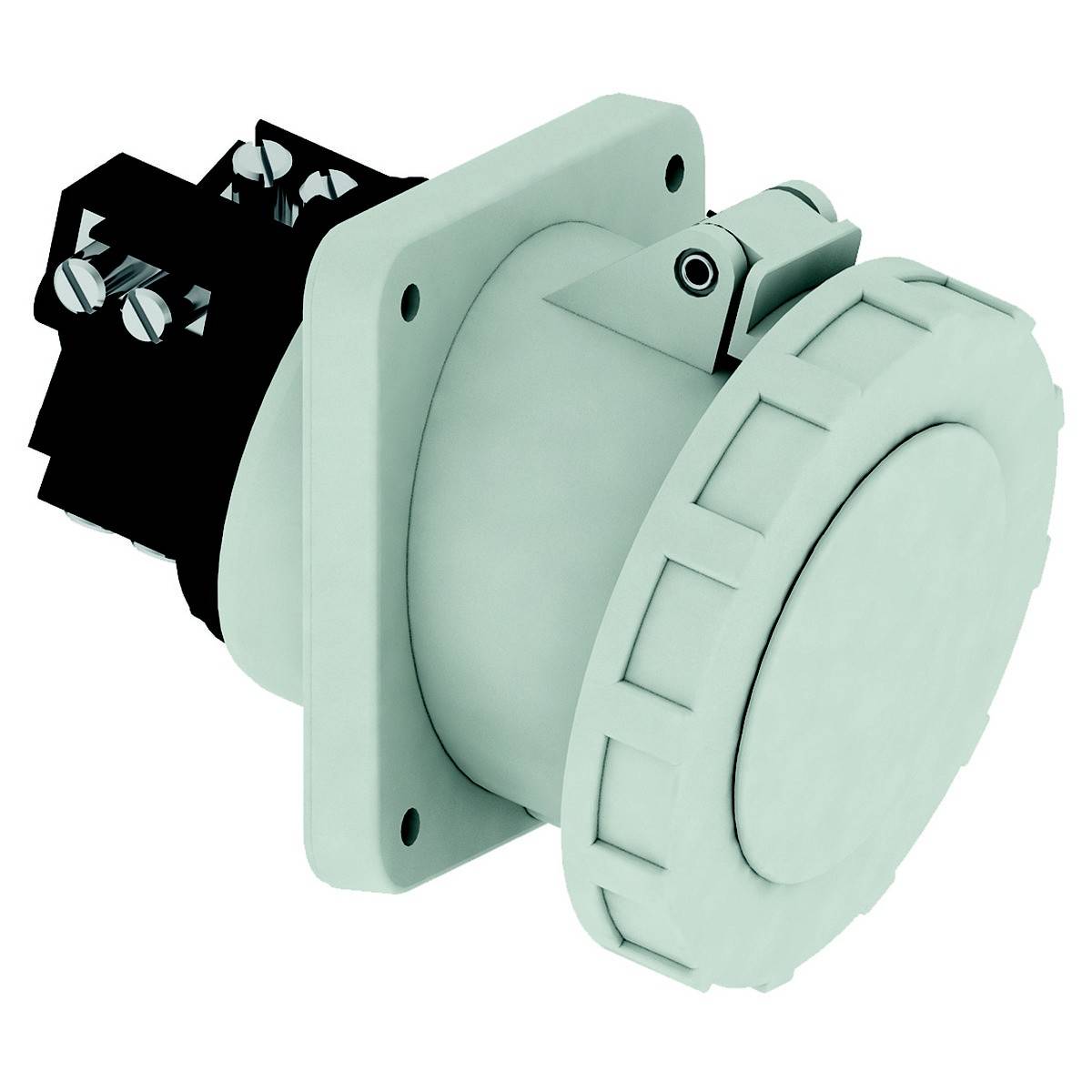

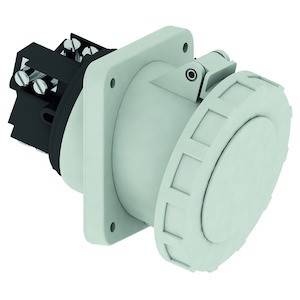

Bals Elektrotechnik 12689 12689 CEE wall socket 125.0 A 5-pin 50 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 125 A.
- Voltage according to EN 60309-2: >50 V gray
- Number of pins: 5
- Time setting 1 h
- Colour code: Grey
- RAL number: 7035
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Mating direction: Angled
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Flange size vertical 114 mm
- Hole spacing vertical 90 mm
- Flange size horizontal 114 mm
- Hole spacing horizontal 90 mm
- Product type
CEE wall socket
- Nominal voltage
50 V
- Nominal current
125.0 A
- Nominal current - rounded value
125 A
- Type A
Screw terminals
- Type
Angled
IP67
- Factory colour
Grey
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
50 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145142 Bals Elektrotechnik 12689 12689 CEE wall socket 125.0 A 5-pin 50 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3145142 Bals Elektrotechnik 12689 12689 CEE wall socket 125.0 A 5-pin 50 V 1 pc(s)
Description
Mounting socket TE inclined
125A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section: 70.0 sqmm (possibly limited by inserted cable entry)
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid gray RAL 7035, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 135 mm, device width: 125 mm, device depth: 172 mm
Flange size vertical 114 mm, flange dimension horizontal 114 mm
Vertical hole spacing 90 mm, horizontal hole spacing 90 mm
This text is machine translated.
125A 5p (3P+N+PE) >50V gray (> 50V - All rated voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1H IP67
Technical color: Grey RAL 7035
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section: 70.0 sqmm (possibly limited by inserted cable entry)
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid gray RAL 7035, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 135 mm, device width: 125 mm, device depth: 172 mm
Flange size vertical 114 mm, flange dimension horizontal 114 mm
Vertical hole spacing 90 mm, horizontal hole spacing 90 mm
