Bals Elektrotechnik 12735 12735 CEE add-on socket 16.0 A 4-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Number of pins: 4
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Mating direction: Angled
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Flange size vertical 87 mm
- Hole spacing vertical 70 mm
- Flange size horizontal 71 mm
- Hole spacing horizontal 52 mm
- Product type
CEE add-on socket
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
Angled
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
4
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145898 Bals Elektrotechnik 12735 12735 CEE add-on socket 16.0 A 4-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3145898 Bals Elektrotechnik 12735 12735 CEE add-on socket 16.0 A 4-pin 400 V 1 pc(s)
Description

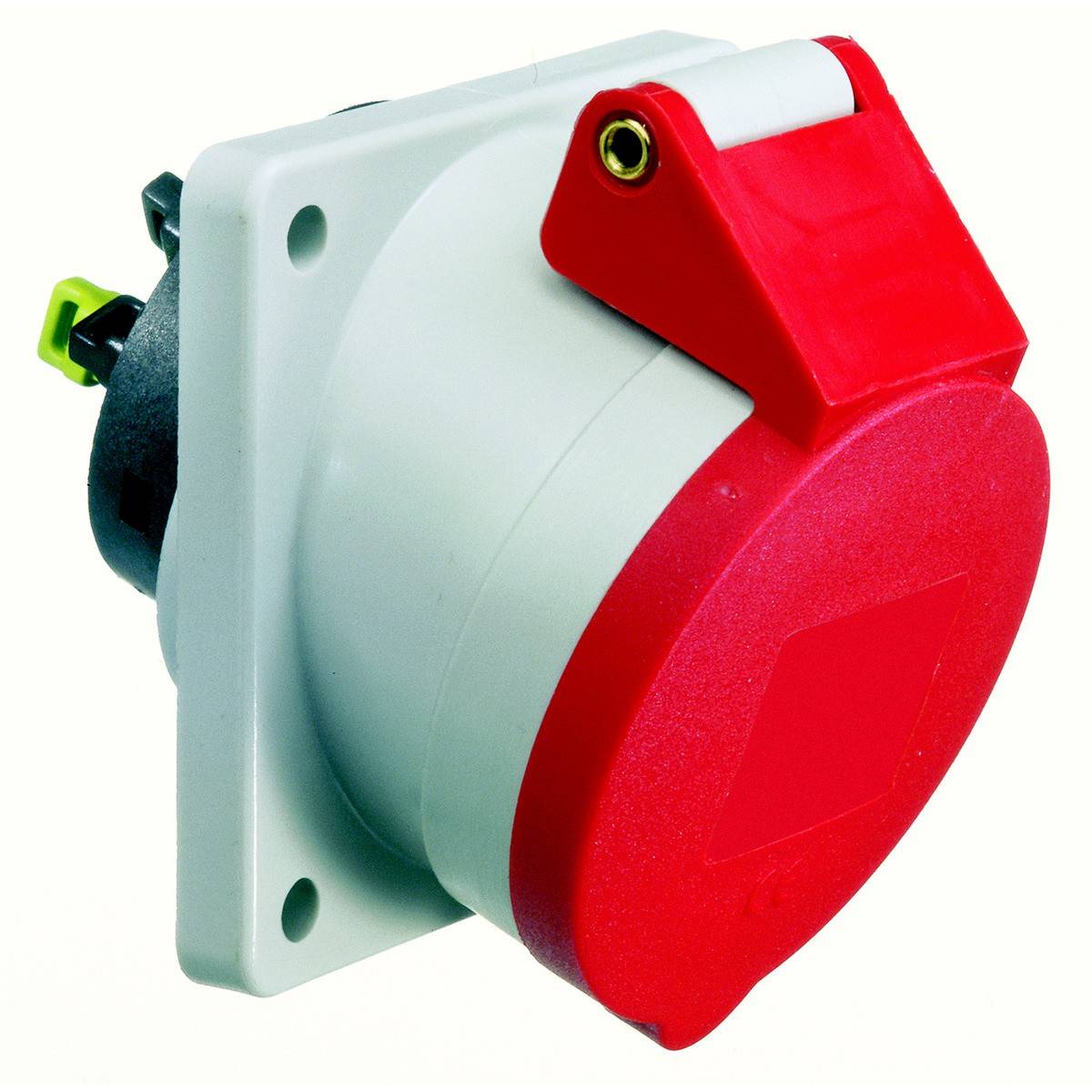

Mounting socket QUICK-CONNECT tilted
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid red RAL 3000, housing gray RAL 7035

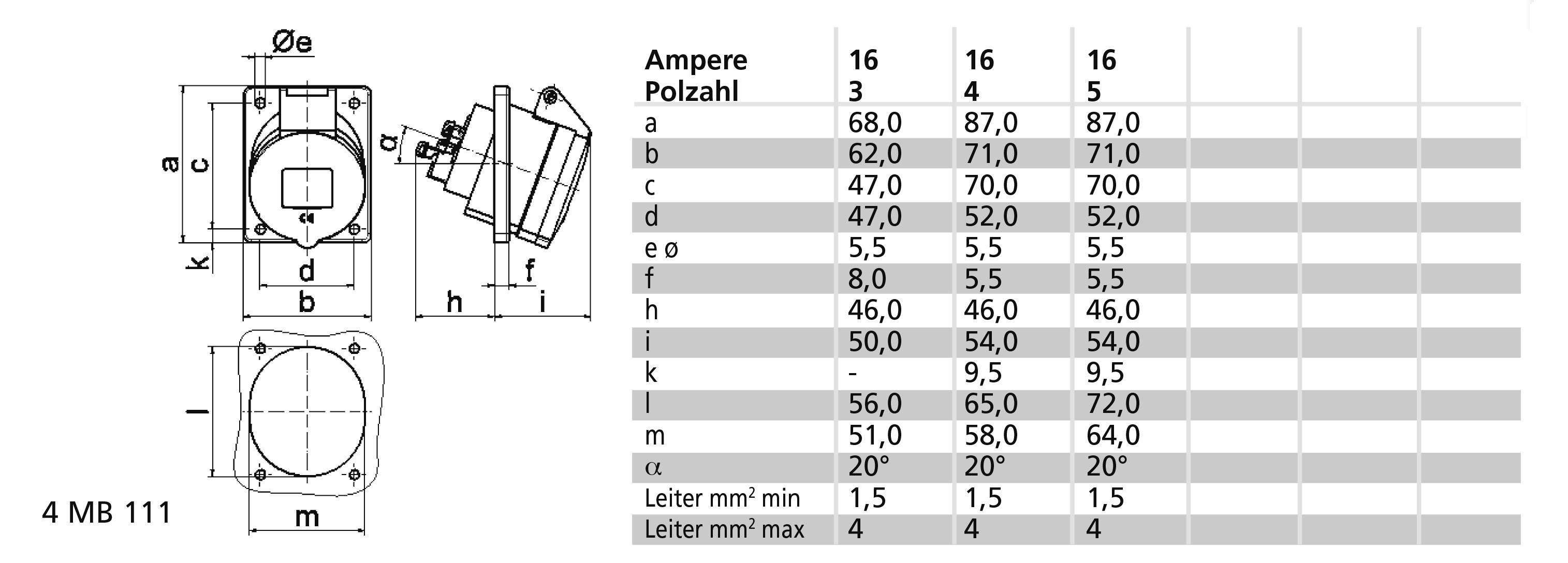

Device height: 90 mm, device width: 71 mm, device depth: 96 mm
Flange size vertical 87 mm, flange dimension horizontal 71 mm
Vertical hole spacing 70 mm, horizontal hole spacing 52 mm
Other technical characteristics: The slope is 20°
