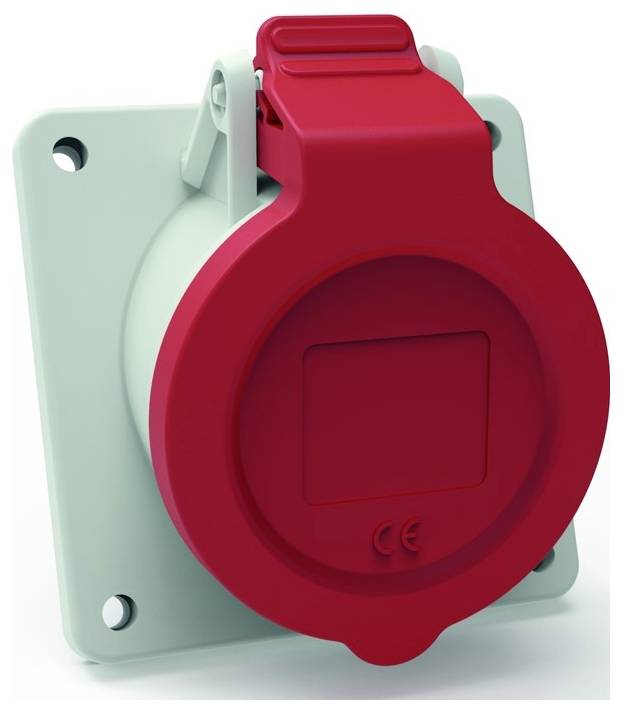

Bals Elektrotechnik 127571 127571 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 3000
- Protection class (IP) IP54
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw less terminal
- Military version: No.
- Mating direction: Angled
- Flange size vertical 85 mm
- Hole spacing vertical 70 mm
- Hole spacing horizontal 70 mm
- Flange size horizontal 85 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
5
- Halogen-free
Yes
IP54
- Dim
(L x W x H) 97 x 85 x 95 mm
- Length
97 mm
- Width
85 mm
- Height
95 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547320 Bals Elektrotechnik 127571 127571 CEE add-on socket 1 pc(s)
Description
Mounting socket INNOLINQ with QUICK-CONNECT tilted
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP54
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: Other
Colour: Hinged lid red RAL 3000, housing gray RAL 7035
Device height: 95 mm, device width: 85 mm, device depth: 97 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Halogen-free: True
Other technical characteristics: Slope is 20°. This product is without lead
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP54
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: Other
Colour: Hinged lid red RAL 3000, housing gray RAL 7035
Device height: 95 mm, device width: 85 mm, device depth: 97 mm
Flange size vertical 85 mm, flange dimension horizontal 85 mm
Vertical hole spacing 70 mm, horizontal hole spacing 70 mm
Halogen-free: True
Other technical characteristics: Slope is 20°. This product is without lead
