Bals Elektrotechnik 12803 12803 CEE add-on socket 32.0 A 5-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Number of pins: 5
- Time setting 10 h
- Colour code: Green
- RAL number: 6002
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- Mating direction: Angled
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Flange size horizontal 92 mm
- Hole spacing horizontal 77 mm
- Product type
CEE add-on socket
- Nominal voltage
500 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
Angled
IP44
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146211 Bals Elektrotechnik 12803 12803 CEE add-on socket 32.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146211 Bals Elektrotechnik 12803 12803 CEE add-on socket 32.0 A 5-pin 500 V 1 pc(s)
Description

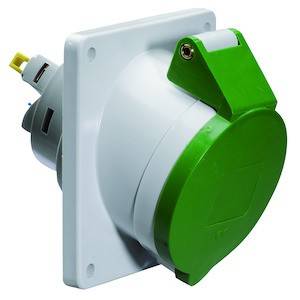

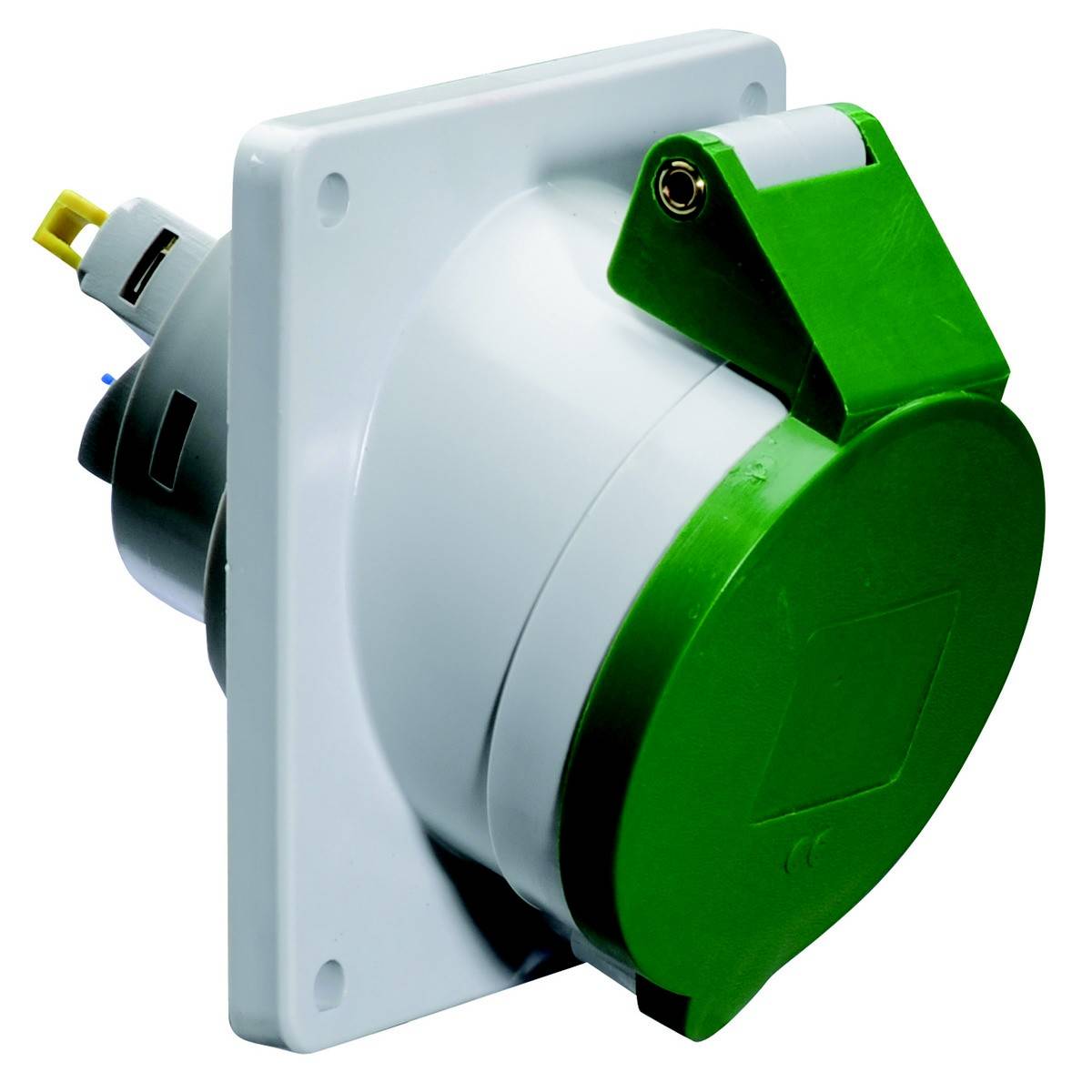

Mounting socket QUICK-CONNECT tilted
32A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid green RAL 6002, housing gray RAL 7035

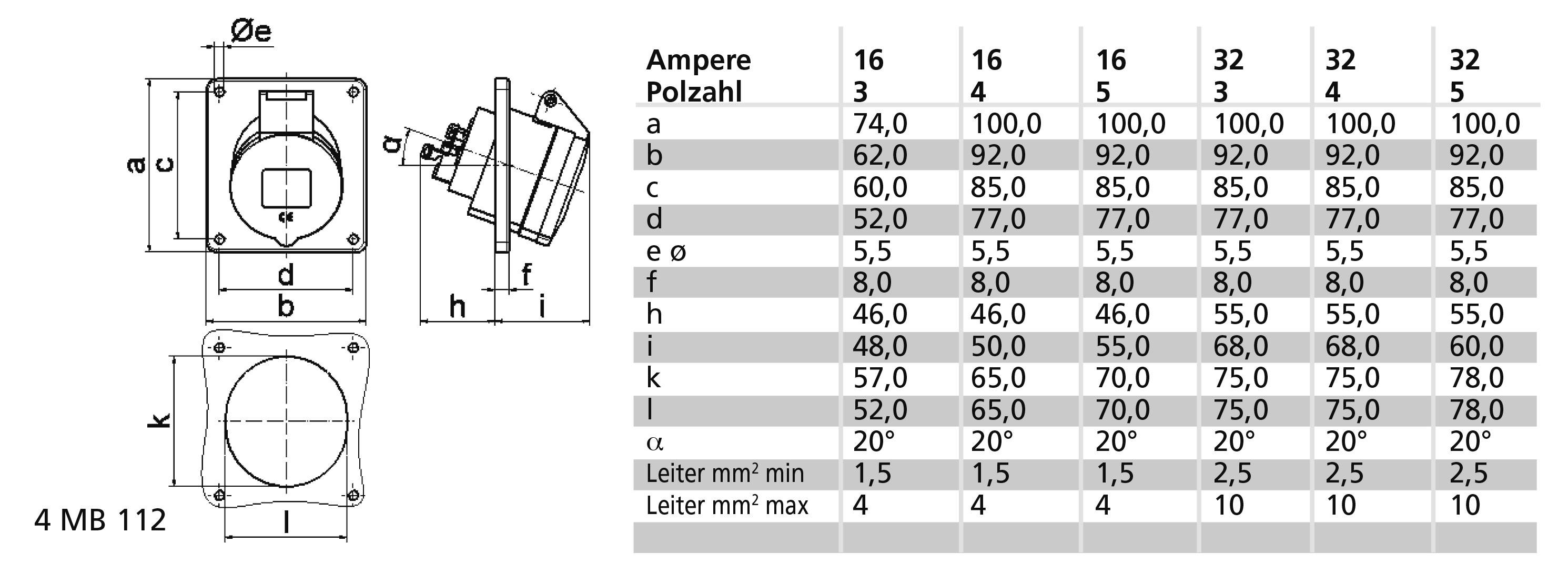

Device height: 103 mm, device width: 92 mm, device depth: 113 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
32A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid green RAL 6002, housing gray RAL 7035
Device height: 103 mm, device width: 92 mm, device depth: 113 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
