Image similar

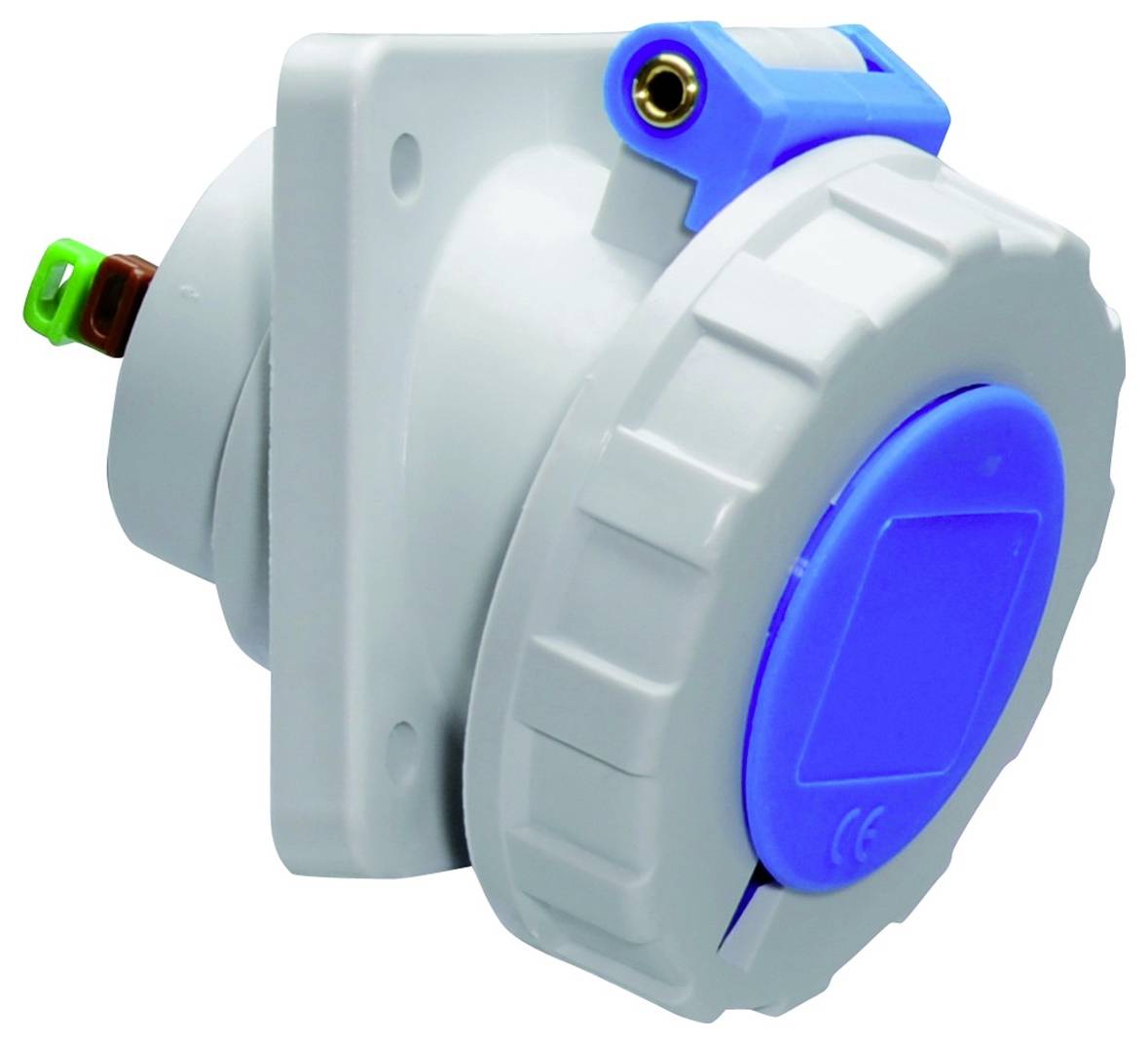

Bals Elektrotechnik 12811 12811 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 5015
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Hole spacing horizontal 60 mm
- Flange size horizontal 75 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
5
- Dim
(L x W x H) 96 x 71 x 82 mm
- Length
96 mm
- Width
71 mm
- Height
82 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547049 Bals Elektrotechnik 12811 12811 CEE add-on socket 1 pc(s)
Description
Mounting socket Quick-Connect angled
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid blue RAL 5015, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 82 mm, device width: 71 mm, device depth: 96 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
16A 5P (3P+N+PE) 230V (120/208 - 144/250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid blue RAL 5015, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 82 mm, device width: 71 mm, device depth: 96 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The slope is 20°
