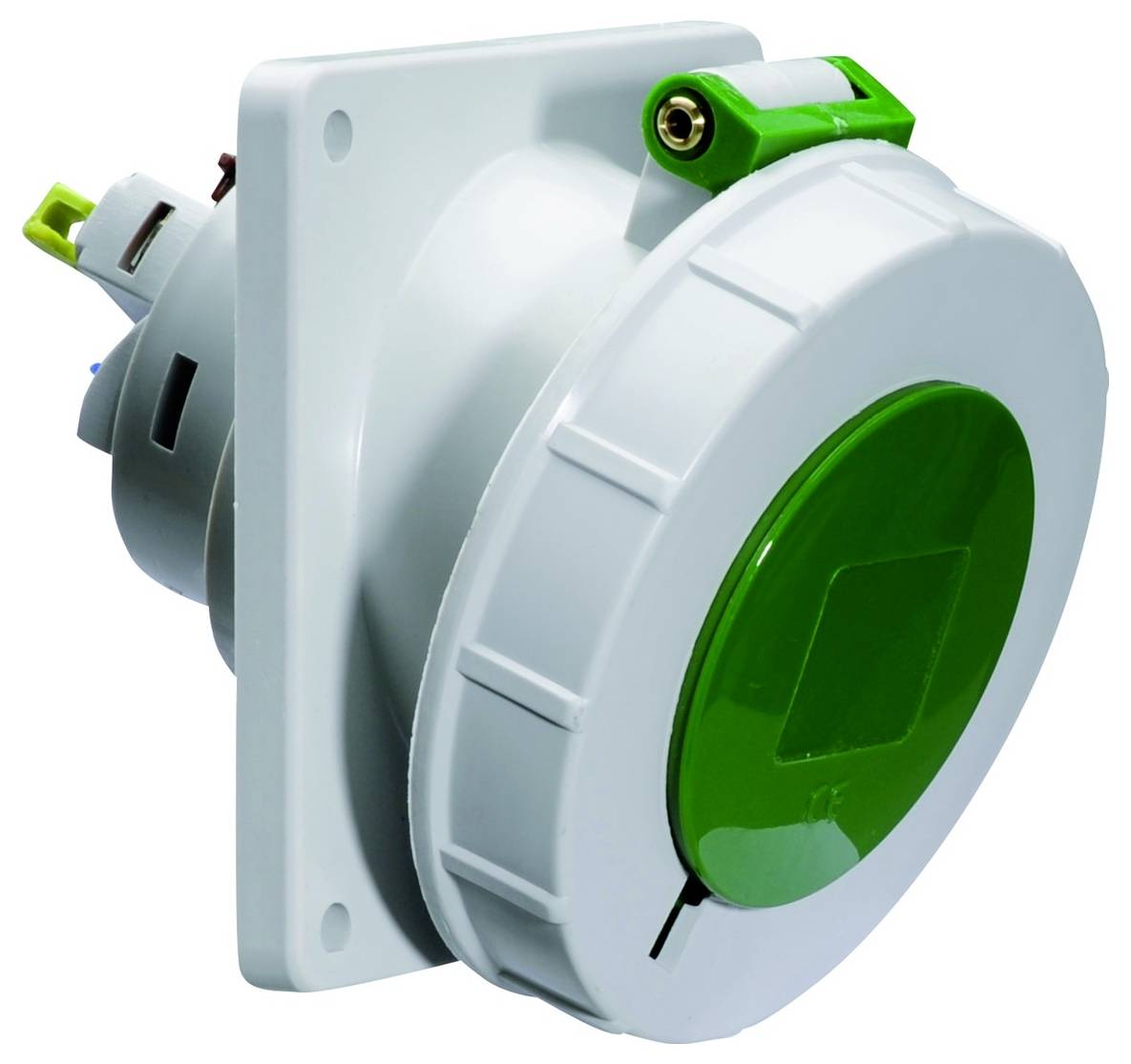

Bals Elektrotechnik 12857 12857 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 6002
- Protection class (IP) IP67
- IEC current 32 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Hole spacing horizontal 77 mm
- Flange size horizontal 92 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
5
- Dim
(L x W x H) 119 x 101 x 110 mm
- Length
119 mm
- Width
101 mm
- Height
110 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547826 Bals Elektrotechnik 12857 12857 CEE add-on socket 1 pc(s)
Description
Mounting socket Quick-Connect angled
32A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color: Green RAL 6002
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid green RAL 6002, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 110 mm, device width: 101 mm, device depth: 119 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
