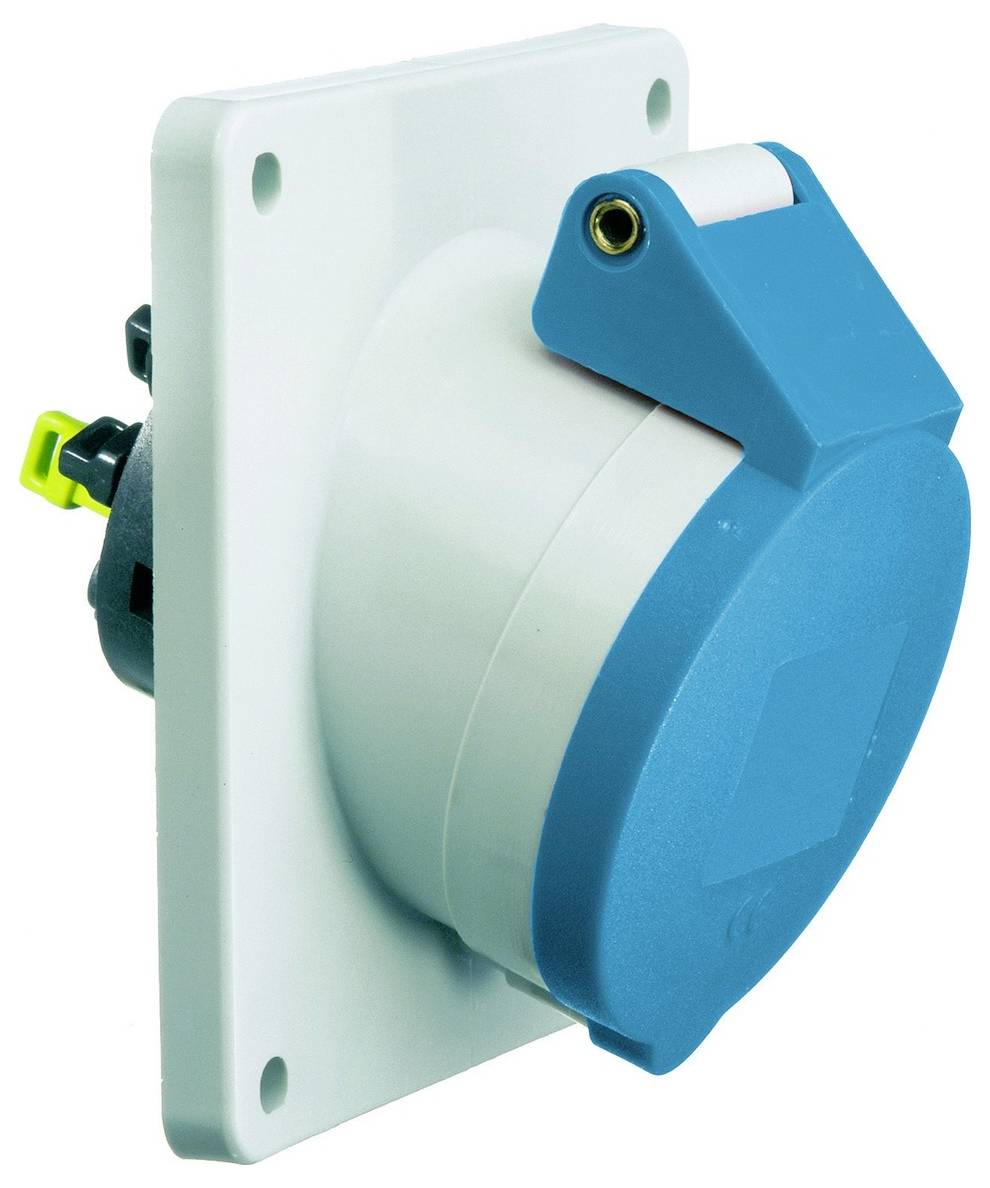

Bals Elektrotechnik 12880 12880 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 5015
- Protection type (IP) IP44
- IEC current 32 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Blue
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Hole spacing horizontal 77 mm
- Flange size horizontal 92 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
3
- Dim
(L x W x H) 117 x 92 x 101 mm
- Length
117 mm
- Width
92 mm
- Height
101 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546008 Bals Elektrotechnik 12880 12880 CEE add-on socket 1 pc(s)
Description
Mounting socket Quick-Connect TE tilted
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid blue RAL 5015, housing gray RAL 7035
Device height: 101 mm, device width: 92 mm, device depth: 117 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid blue RAL 5015, housing gray RAL 7035
Device height: 101 mm, device width: 92 mm, device depth: 117 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
