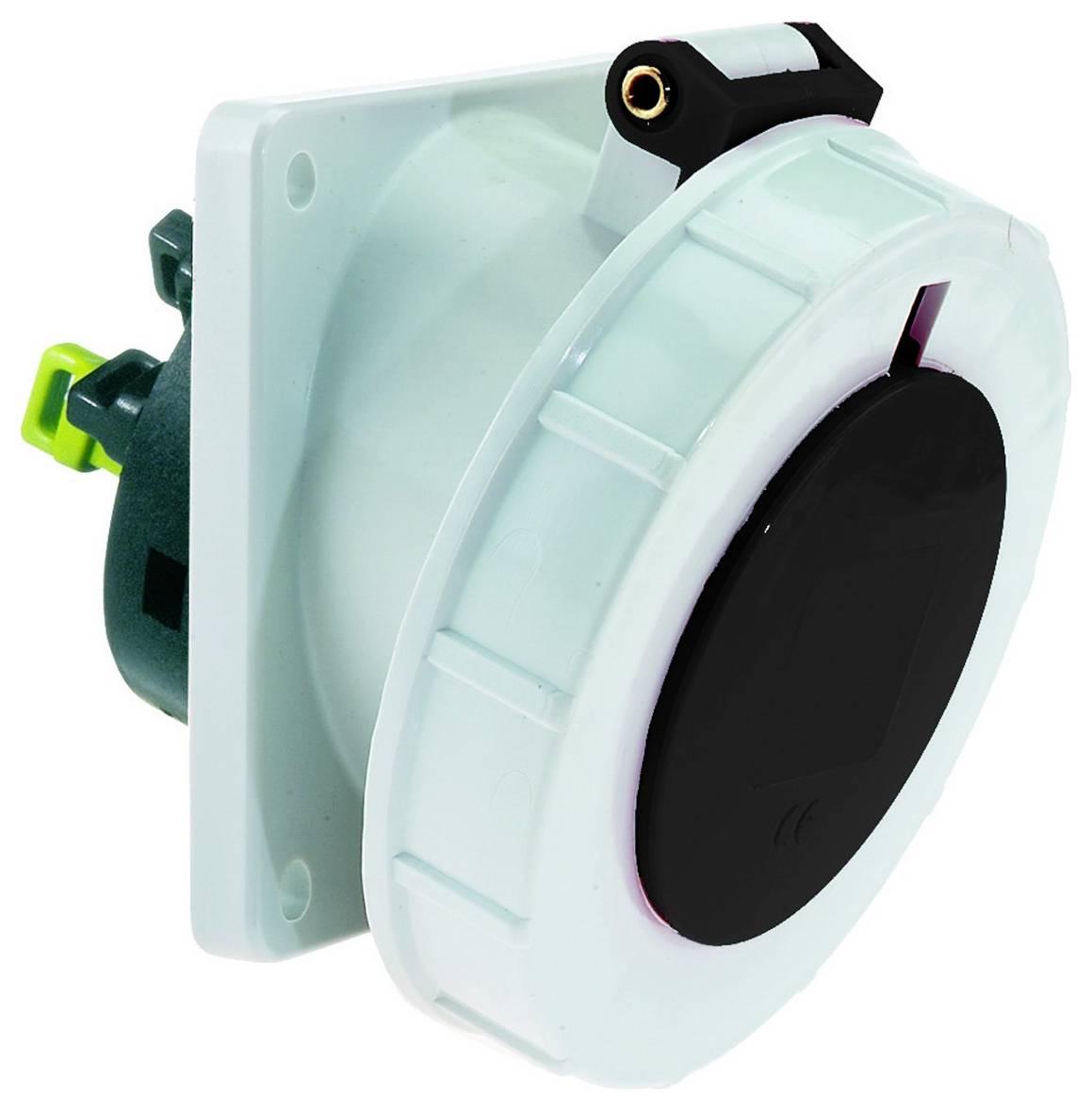

Image similar
Bals Elektrotechnik 12921 12921 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 9005
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Mating direction: Angled
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Hole spacing horizontal 77 mm
- Flange size horizontal 92 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
4
- Dim
(L x W x H) 98 x 92 x 100 mm
- Length
98 mm
- Width
92 mm
- Height
100 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543919 Bals Elektrotechnik 12921 12921 CEE add-on socket 1 pc(s)
Description
Mounting socket Quick-Connect TE tilted
16A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 100 mm, device width: 92 mm, device depth: 98 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
16A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 100 mm, device width: 92 mm, device depth: 98 mm
Flange size vertical 100 mm, flange dimension horizontal 92 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical characteristics: The slope is 20°
This text is machine translated.
