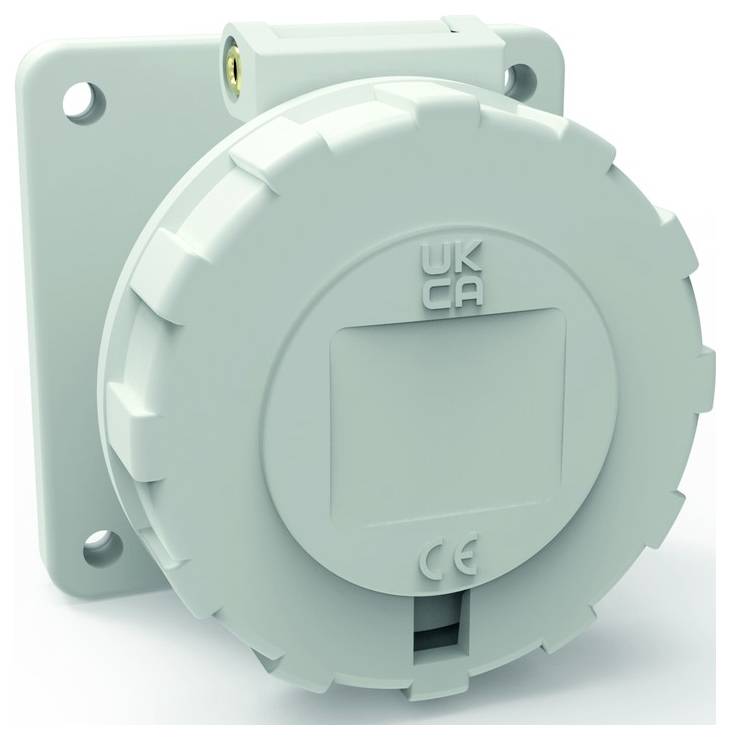

Image similar
Bals Elektrotechnik 13086 13086 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 7035
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: According to isolating transformer
- Time setting 12 h
- Colour code: Grey
- Connection technology: Screw terminal
- Military version: No.
- With straight plug
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
- Cores
3
- Dim
(L x W x H) 83 x 75 x 81 mm
- Length
83 mm
- Width
75 mm
- Height
81 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546805 Bals Elektrotechnik 13086 13086 CEE add-on socket 1 pc(s)
Description
Mounting socket TE straight
16A 3p (2P+PE) supply after an isolating transformer (> 50V~ supply after an isolating transformer) 12h IP67
Mains frequency: 50/60Hz.
Technical color: Grey RAL 7035
Contact carrier/contacts: The contacts are nickel-plated brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Grey RAL 7035 housing, bayonet ring gray RAL 7035, hinged cover gray RAL 7035
Device height: 81 mm, device width: 75 mm, device depth: 83 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
This text is machine translated.
