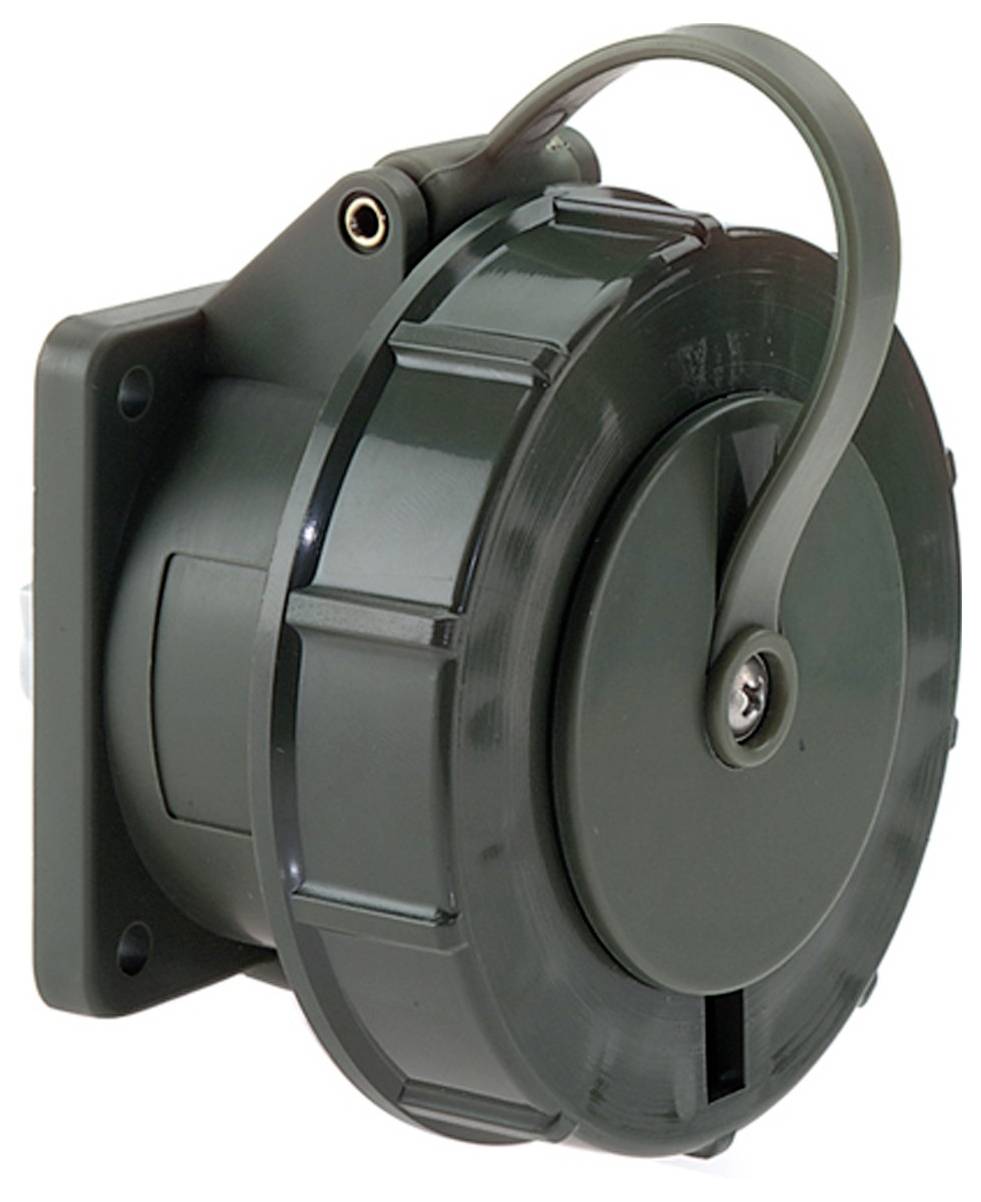

Image similar
Bals Elektrotechnik 13182 13182 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 16 A.
- Voltage according to EN 60309-2: Other
- Time setting 11 h
- Colour code: Green
- Connection technology: Screw less terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- With straight plug
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Hole spacing horizontal 60 mm
- Flange size horizontal 75 mm
- Product type
CEE add-on socket
- Features
Screwless terminals
- Cores
5
- Factory colour
RAL 6031 (Brass Green)
- Dim
(L x W x H) 95 x 86.5 x 92 mm
- Length
95 mm
- Width
86.5 mm
- Height
92 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546009 Bals Elektrotechnik 13182 13182 CEE add-on socket 1 pc(s)
Description
Quick-connect TN straight panel-mounted socket
16A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 92 mm, device width: 86.5 mm, device depth: 95 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96919 AS 003
This text is machine translated.
