Bals Elektrotechnik 13184 13184 CEE add-on socket 32.0 A 5-pin 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: Other
- Number of pins: 5
- Time setting 11 h
- Colour code: Green
- RAL number: 6031
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- With straight plug
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screwless terminal
- Type
straight
IP67
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146358 Bals Elektrotechnik 13184 13184 CEE add-on socket 32.0 A 5-pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146358 Bals Elektrotechnik 13184 13184 CEE add-on socket 32.0 A 5-pin 1 pc(s)
Description

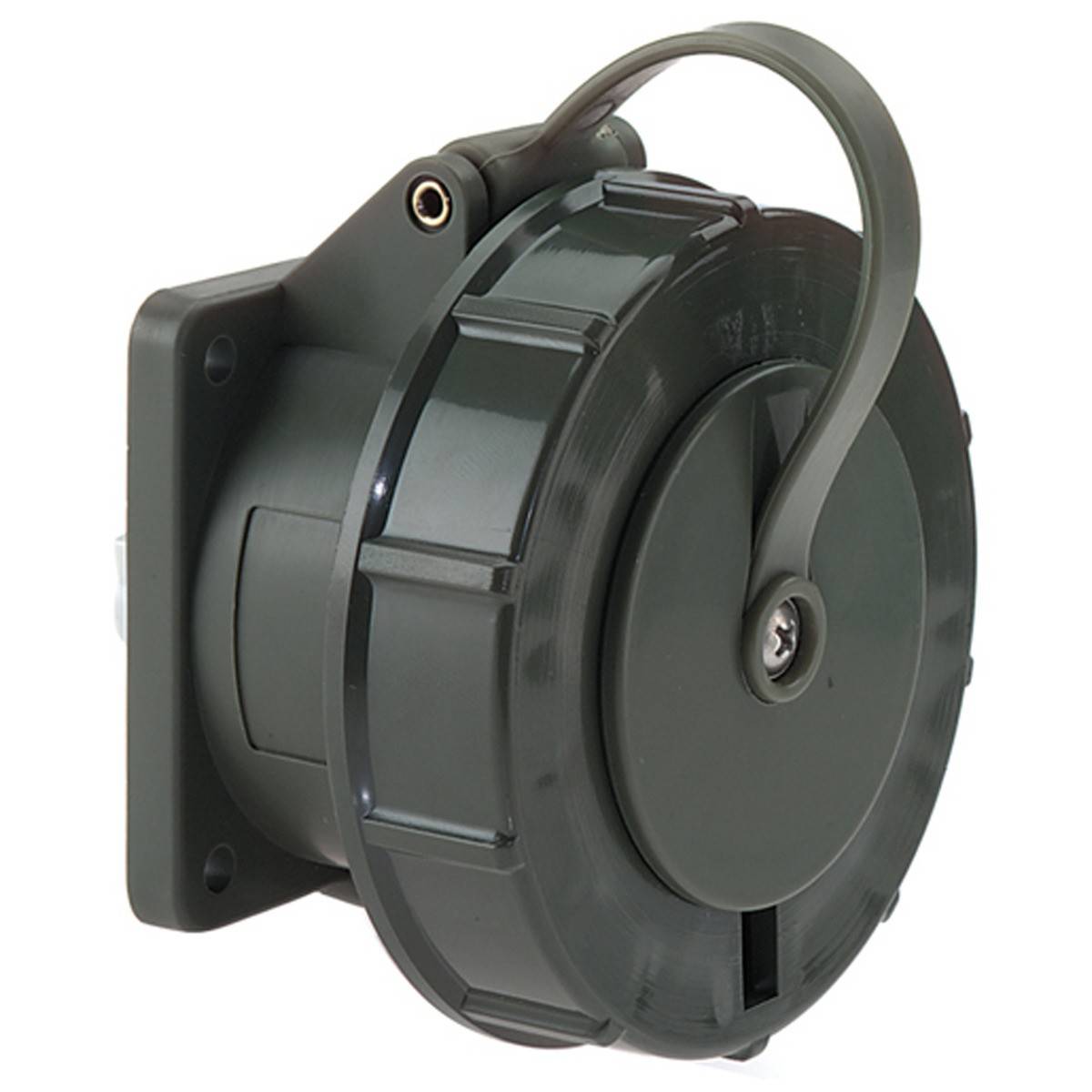

Panel-mount socket QUICK-connect TN straight
32A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9, gray enclosure RAL 7035

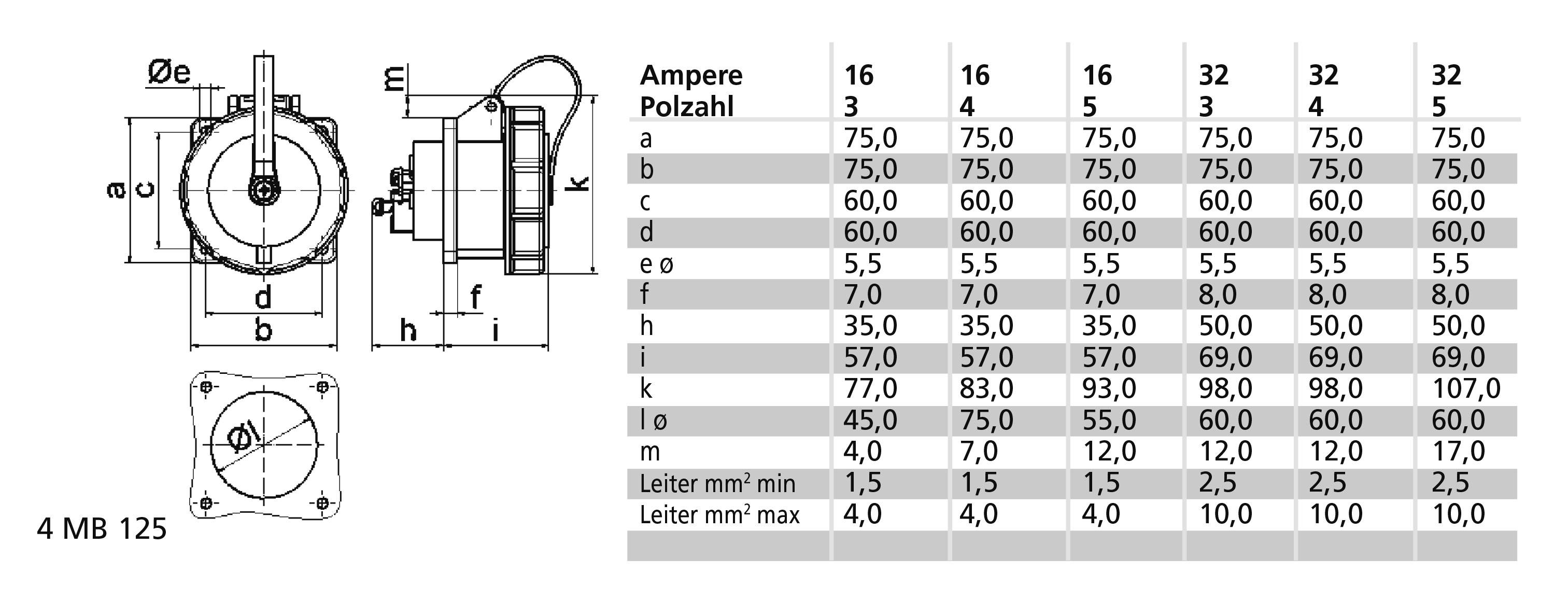

Device height: 106 mm, device width: 101.5 mm, device depth: 113 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96919 AS 007
This text is machine translated.
32A 5P (3P+N+PE) 440 V (250/440 - 265/460V~) 11H IP67
Frequency: 60Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9, gray enclosure RAL 7035
Device height: 106 mm, device width: 101.5 mm, device depth: 113 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96919 AS 007
