Bals Elektrotechnik 13328 13328 CEE add-on socket 32.0 A 7-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Number of pins: 7
- Time setting 9 h
- Colour code: Blue
- RAL number: 5015
- Protection type (IP) IP44
- Connection technology: Screw terminal
- With straight plug
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
- Nominal voltage
230 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
Screw terminals
- Type
straight
IP44
- Factory colour
Blue
- Content
1 pc(s)
- Number of pins
7
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146440 Bals Elektrotechnik 13328 13328 CEE add-on socket 32.0 A 7-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146440 Bals Elektrotechnik 13328 13328 CEE add-on socket 32.0 A 7-pin 230 V 1 pc(s)
Description

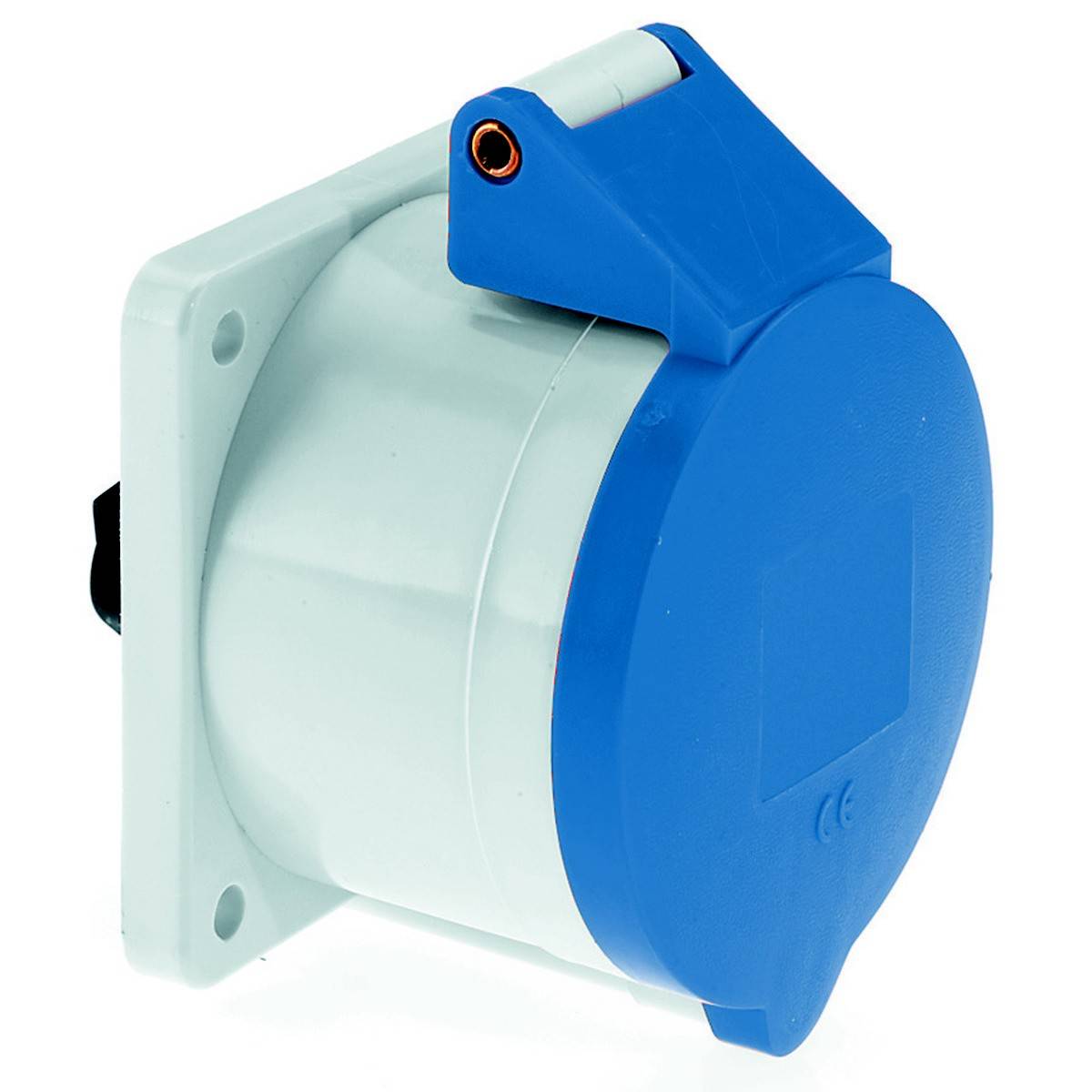

Straight surface-mount socket
32A 7P (6P+PE) 230V (230V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: Other
Colour: Hinged lid blue RAL 5015, housing gray RAL 7035

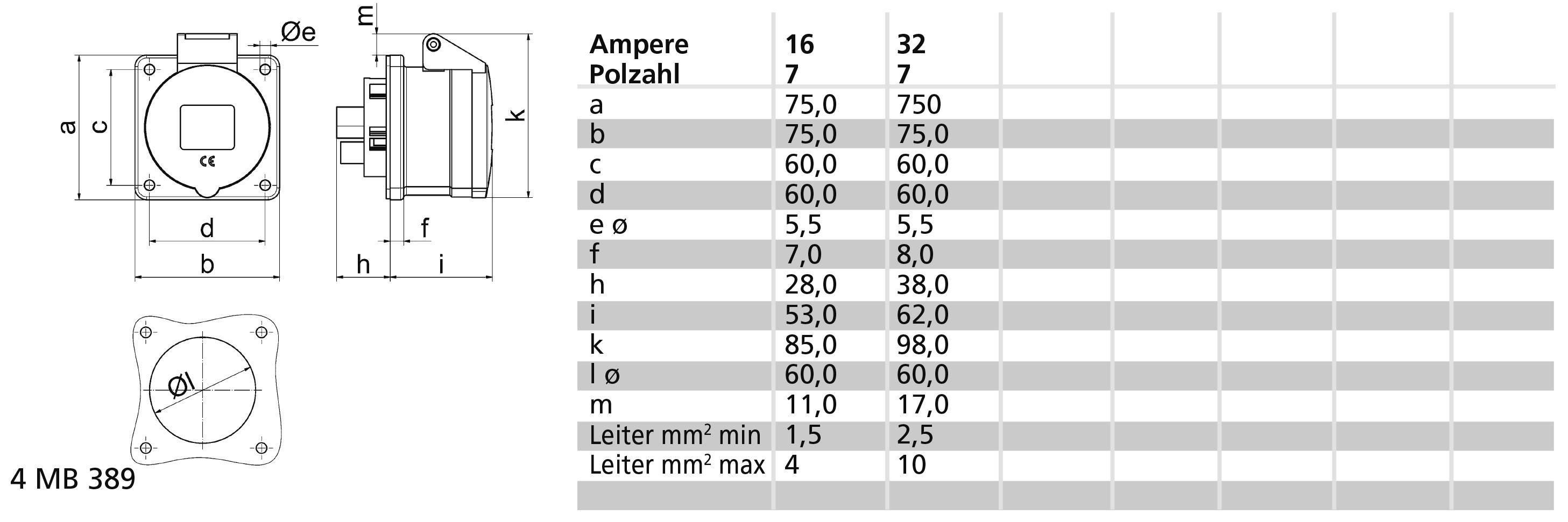

Device height: 98 mm, device width: 75 mm, device depth: 82 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
This text is machine translated.
