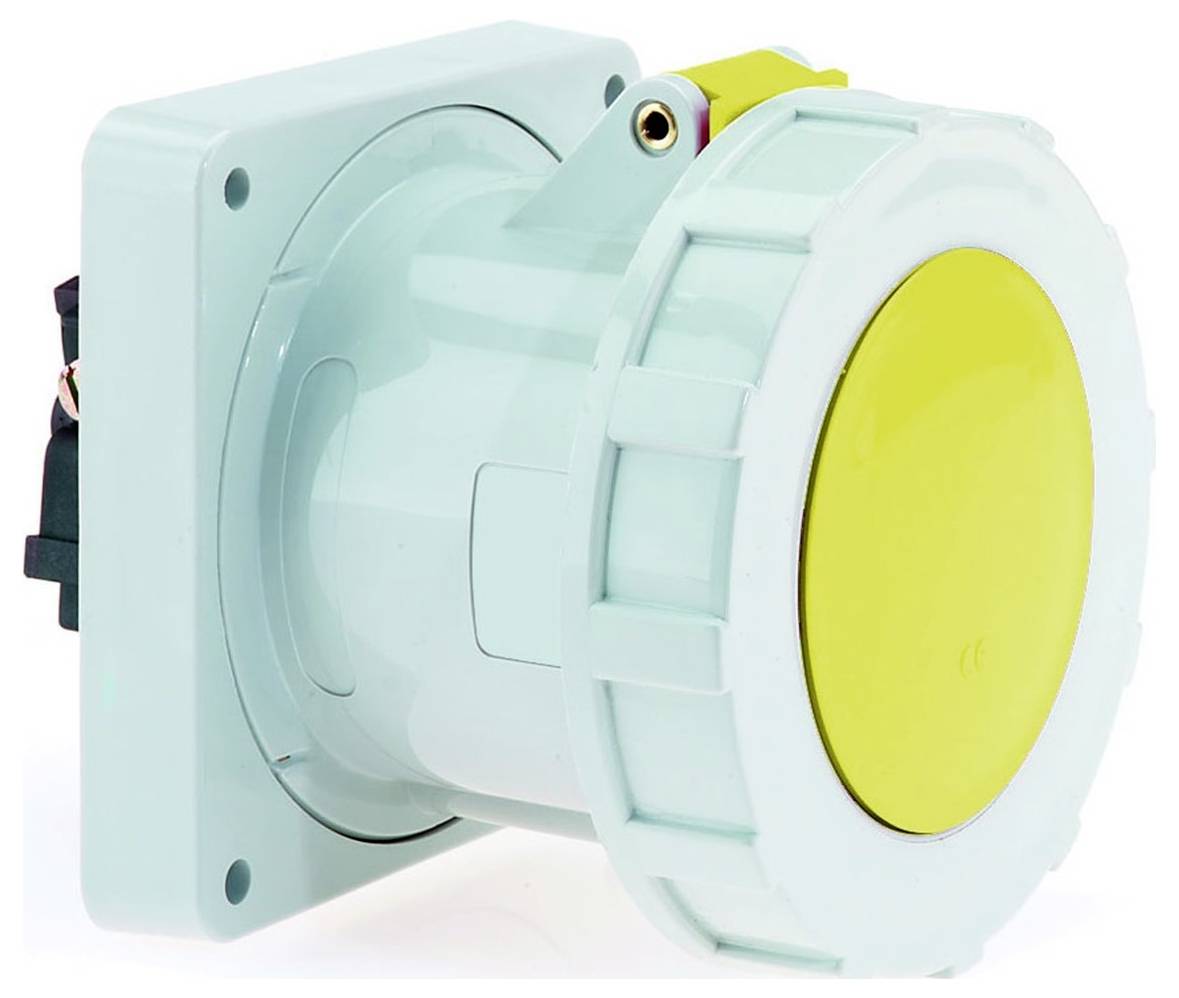

Image similar
Bals Elektrotechnik 13445 13445 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 1012
- Protection class (IP) IP67
- IEC current 125 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Flange size vertical 120 mm
- Hole spacing vertical 100 mm
- Hole spacing horizontal 100 mm
- Flange size horizontal 120 mm
- Product type
CEE add-on socket
- Cores
3
- Dim
(L x W x H) 166 x 125 x 129 mm
- Length
166 mm
- Width
125 mm
- Height
129 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546534 Bals Elektrotechnik 13445 13445 CEE add-on socket 1 pc(s)
Description
Straight surface-mount socket
125A 3P (2P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum conductor cross-section: 70 mm² (possibly limited by inserted cable entry)
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 129 mm, device width: 125 mm, device depth: 166 mm
Flange size vertical 120 mm, flange dimension horizontal 120 mm
Vertical hole spacing 100 mm, horizontal hole spacing 100 mm
This text is machine translated.
125A 3P (2P+PE) 110V (100 - 130V~) 4H IP67
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum conductor cross-section: 70 mm² (possibly limited by inserted cable entry)
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid yellow RAL 1012, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 129 mm, device width: 125 mm, device depth: 166 mm
Flange size vertical 120 mm, flange dimension horizontal 120 mm
Vertical hole spacing 100 mm, horizontal hole spacing 100 mm
