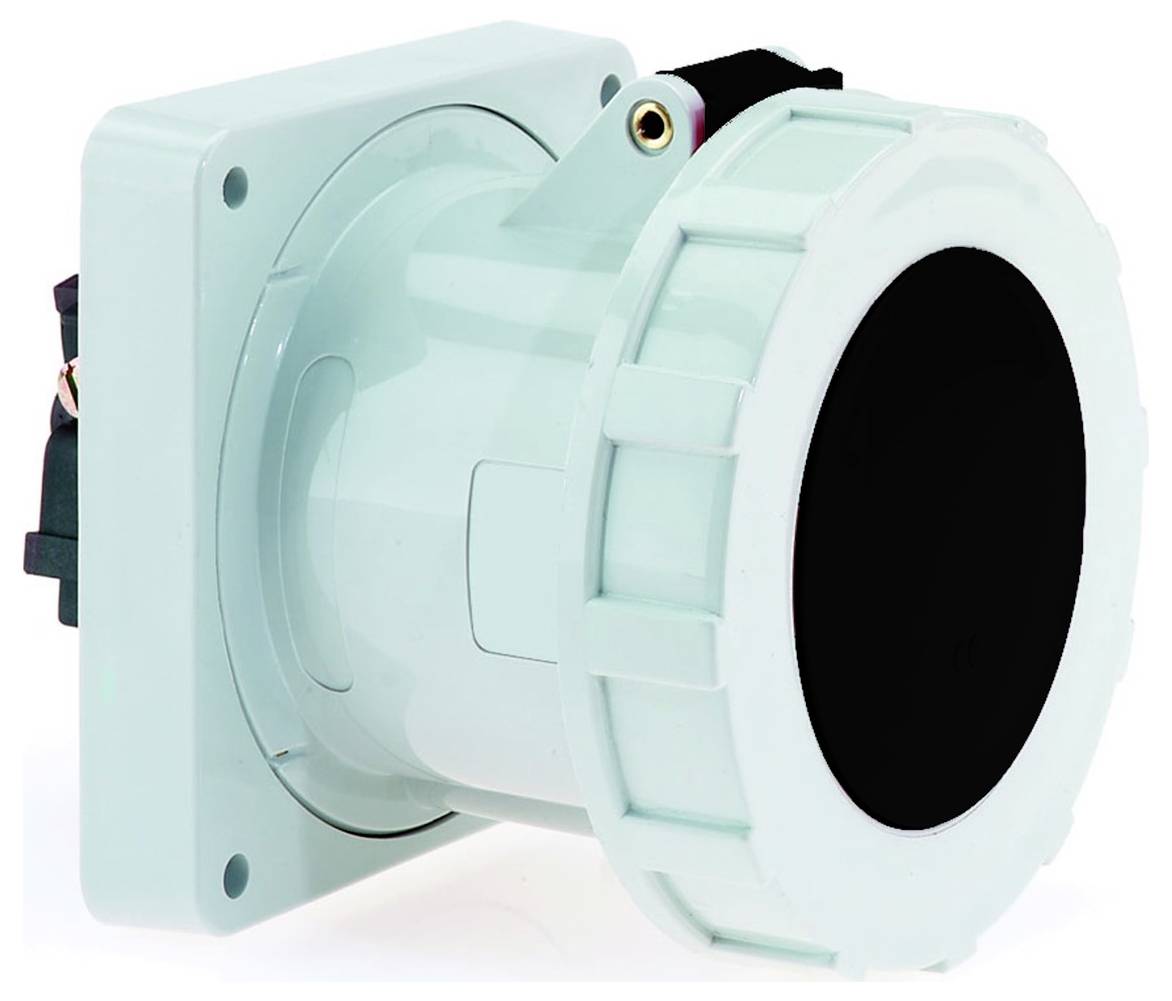

Image similar
Bals Elektrotechnik 13515 13515 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 9005
- Protection class (IP) IP67
- IEC current 125 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Flange size vertical 130 mm
- Hole spacing vertical 104 mm
- Hole spacing horizontal 104 mm
- Flange size horizontal 130 mm
- Product type
CEE add-on socket
- Cores
4
- Dim
(L x W x H) 166 x 130 x 130 mm
- Length
166 mm
- Width
130 mm
- Height
130 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545498 Bals Elektrotechnik 13515 13515 CEE add-on socket 1 pc(s)
Description
Straight surface-mount socket
125A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum conductor cross-section: 70 mm² (possibly limited by inserted cable entry)
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 130 mm, device width: 130 mm, device depth: 166 mm
Flange size vertical 130 mm, flange dimension horizontal 130 mm
Vertical hole spacing 104 mm, horizontal hole spacing 104 mm
