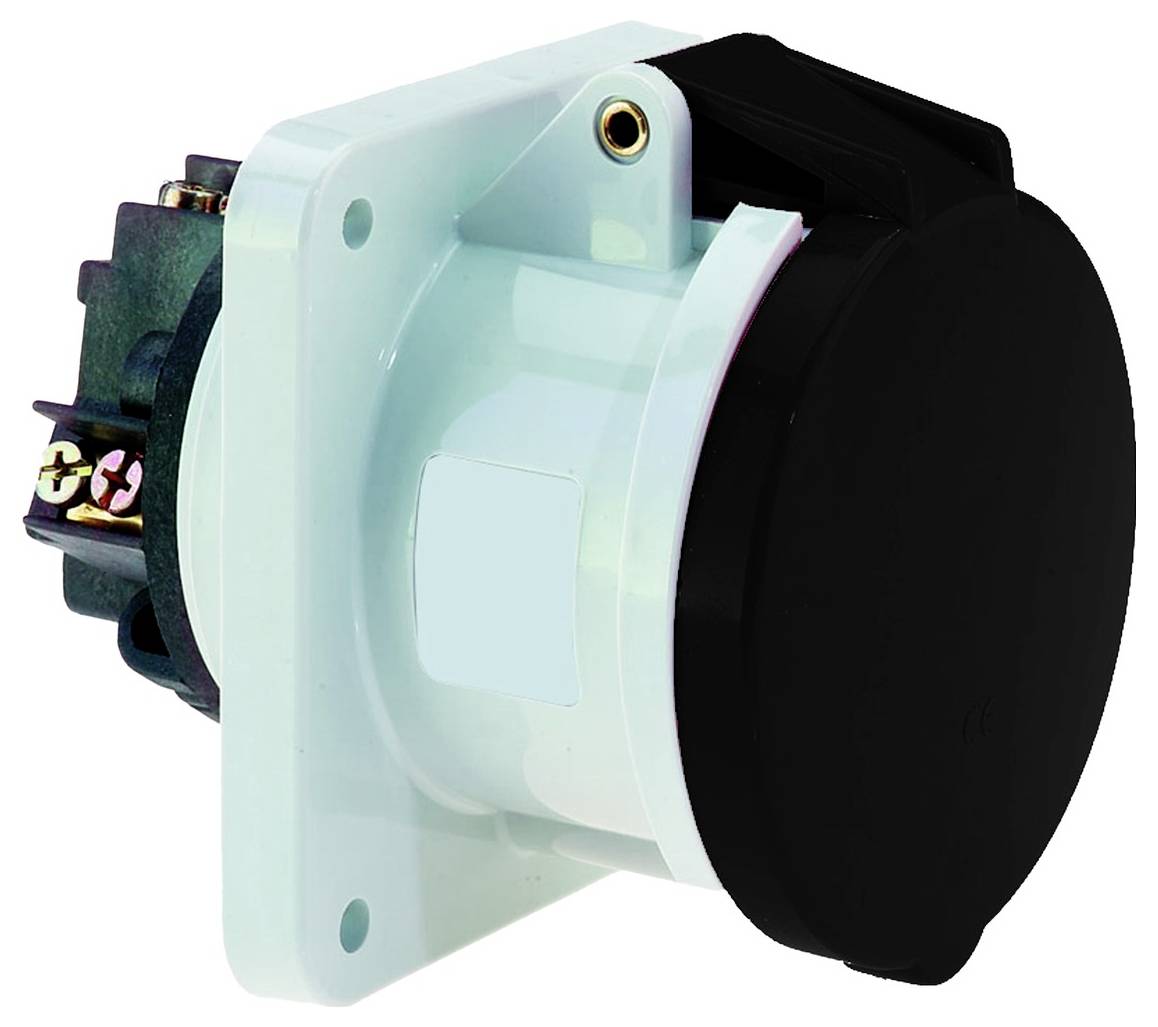

Image similar
Bals Elektrotechnik 13592 13592 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Material: Plastic
- RAL number: 9005
- Protection type (IP) IP44
- IEC current 63 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- With straight plug
- Flange size vertical 107 mm
- Hole spacing vertical 85 mm
- Hole spacing horizontal 77 mm
- Flange size horizontal 100 mm
- Product type
CEE add-on socket
- Cores
3
- Dim
(L x W x H) 134 x 100 x 114 mm
- Length
134 mm
- Width
100 mm
- Height
114 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547064 Bals Elektrotechnik 13592 13592 CEE add-on socket 1 pc(s)
Description
Straight surface-mount socket
63A 3P (2P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, housing gray RAL 7035
Device height: 114 mm, device width: 100 mm, device depth: 134 mm
Flange size vertical 107 mm, flange dimension horizontal 100 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
This text is machine translated.
63A 3P (2P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, housing gray RAL 7035
Device height: 114 mm, device width: 100 mm, device depth: 134 mm
Flange size vertical 107 mm, flange dimension horizontal 100 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
This text is machine translated.
