Bals Elektrotechnik 13699 13699 CEE add-on socket 16.0 A 5-pin 500 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Number of pins: 5
- Time setting 7 h
- Colour code: Black
- RAL number: 9005
- Protection type (IP) IP44
- Connection technology: Screw less terminal
- With straight plug
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
- Nominal voltage
500 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP44
- Factory colour
Black
- Content
1 pc(s)
- Number of pins
5
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146070 Bals Elektrotechnik 13699 13699 CEE add-on socket 16.0 A 5-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146070 Bals Elektrotechnik 13699 13699 CEE add-on socket 16.0 A 5-pin 500 V 1 pc(s)
Description

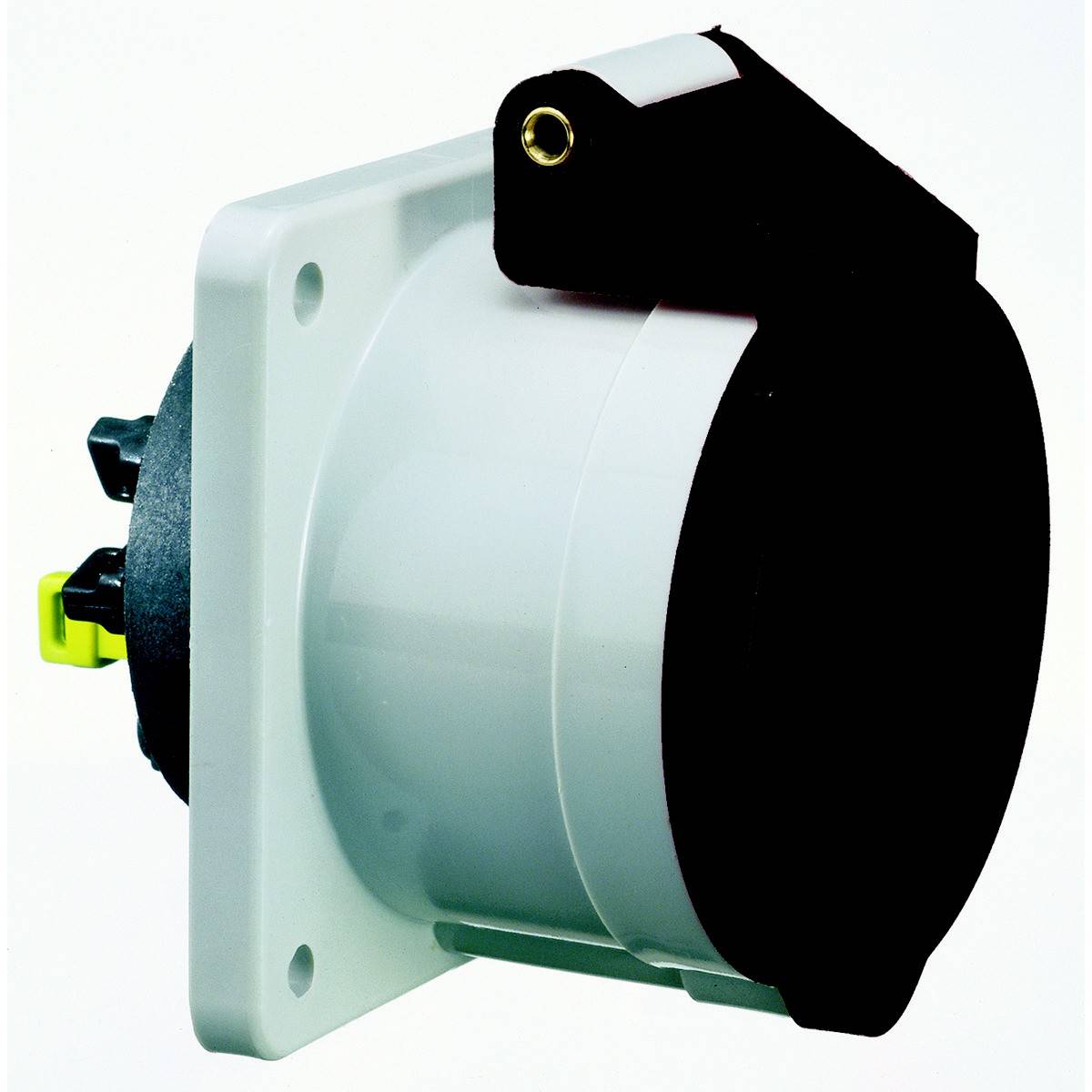

QUICK-Connect straight surface-mount socket
16A 5P (3P+N+PE) 500V (277/480 - 288/500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, housing gray RAL 7035

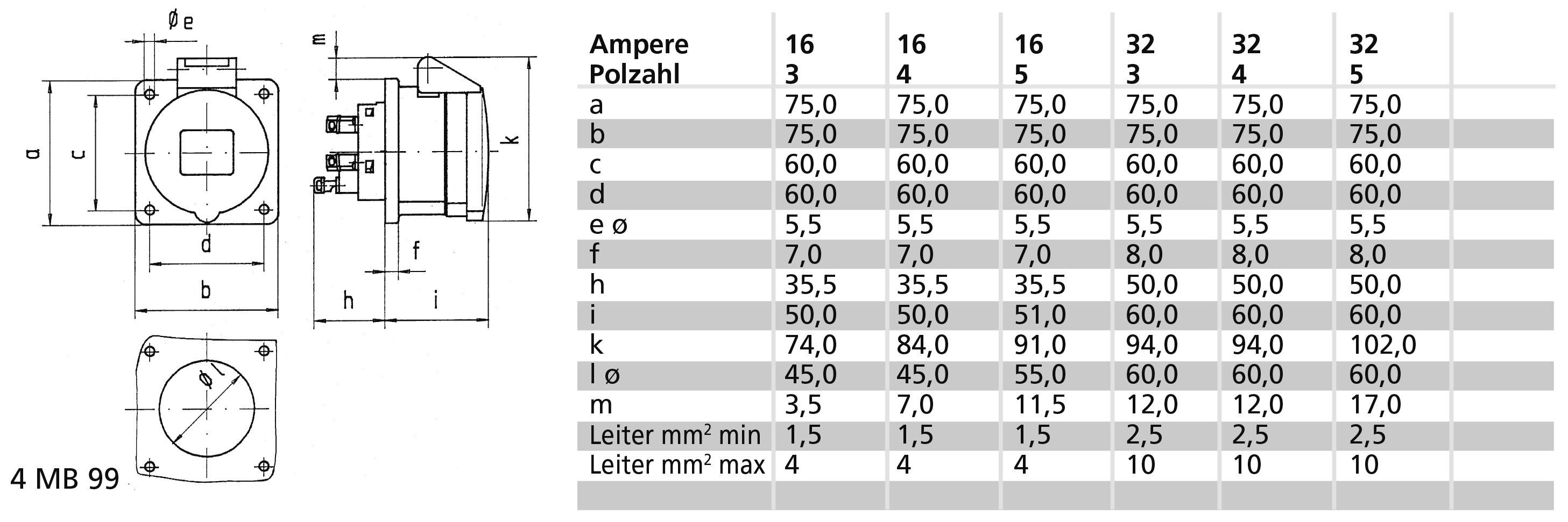

Device height: 86 mm, device width: 75 mm, device depth: 89 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
This text is machine translated.
16A 5P (3P+N+PE) 500V (277/480 - 288/500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Hinged lid black RAL 9005, housing gray RAL 7035
Device height: 86 mm, device width: 75 mm, device depth: 89 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
