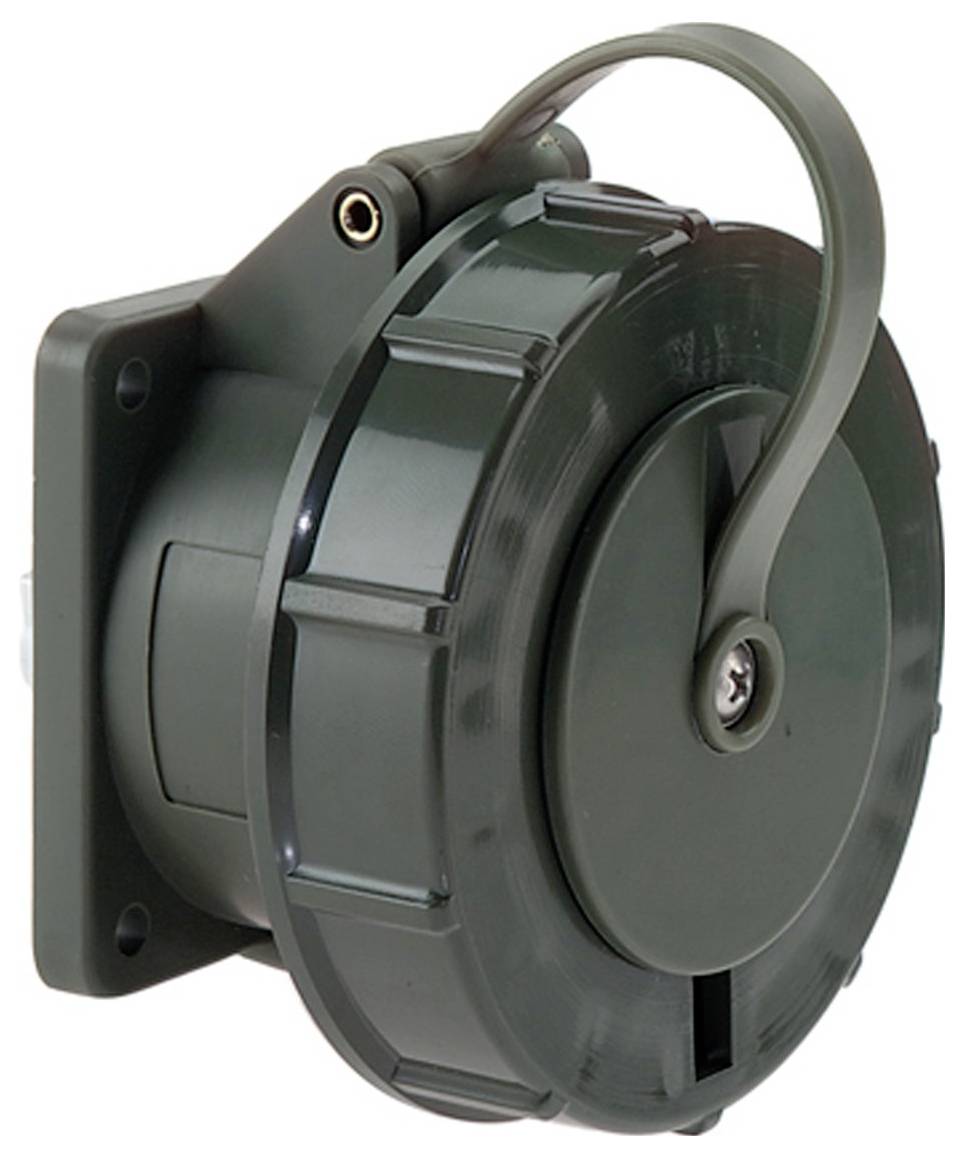

Bals Elektrotechnik 13839 13839 CEE add-on socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Material: Plastic
- RAL number: 6031
- Protection class (IP) IP67
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Green
- Connection technology: Screw terminal
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- With straight plug
- Flange size vertical 107 mm
- Hole spacing vertical 85 mm
- Hole spacing horizontal 77 mm
- Flange size horizontal 100 mm
- Product type
CEE add-on socket
- Cores
4
- Factory colour
RAL 6031 (Brass Green)
- Dim
(L x W x H) 139 x 111 x 114 mm
- Length
139 mm
- Width
111 mm
- Height
114 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543937 Bals Elektrotechnik 13839 13839 CEE add-on socket 1 pc(s)
Description
Mounting socket TN straight
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 114 mm, device width: 111 mm, device depth: 139 mm
Flange size vertical 107 mm, flange dimension horizontal 100 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical features: A pilot contact is present, the bayonet cover is attached to the housing with a tie
VG type no.: VG 96919 AS 028
This text is machine translated.
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Housing material: Polyamid
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: Other
Colour: Bronze green hinged lid RAL 6031-F9, bronze green housing RAL 6031-F9, bronze green bayonet ring RAL 6031-F9
Device height: 114 mm, device width: 111 mm, device depth: 139 mm
Flange size vertical 107 mm, flange dimension horizontal 100 mm
Vertical hole spacing 85 mm, horizontal hole spacing 77 mm
Other technical features: A pilot contact is present, the bayonet cover is attached to the housing with a tie
VG type no.: VG 96919 AS 028
This text is machine translated.
