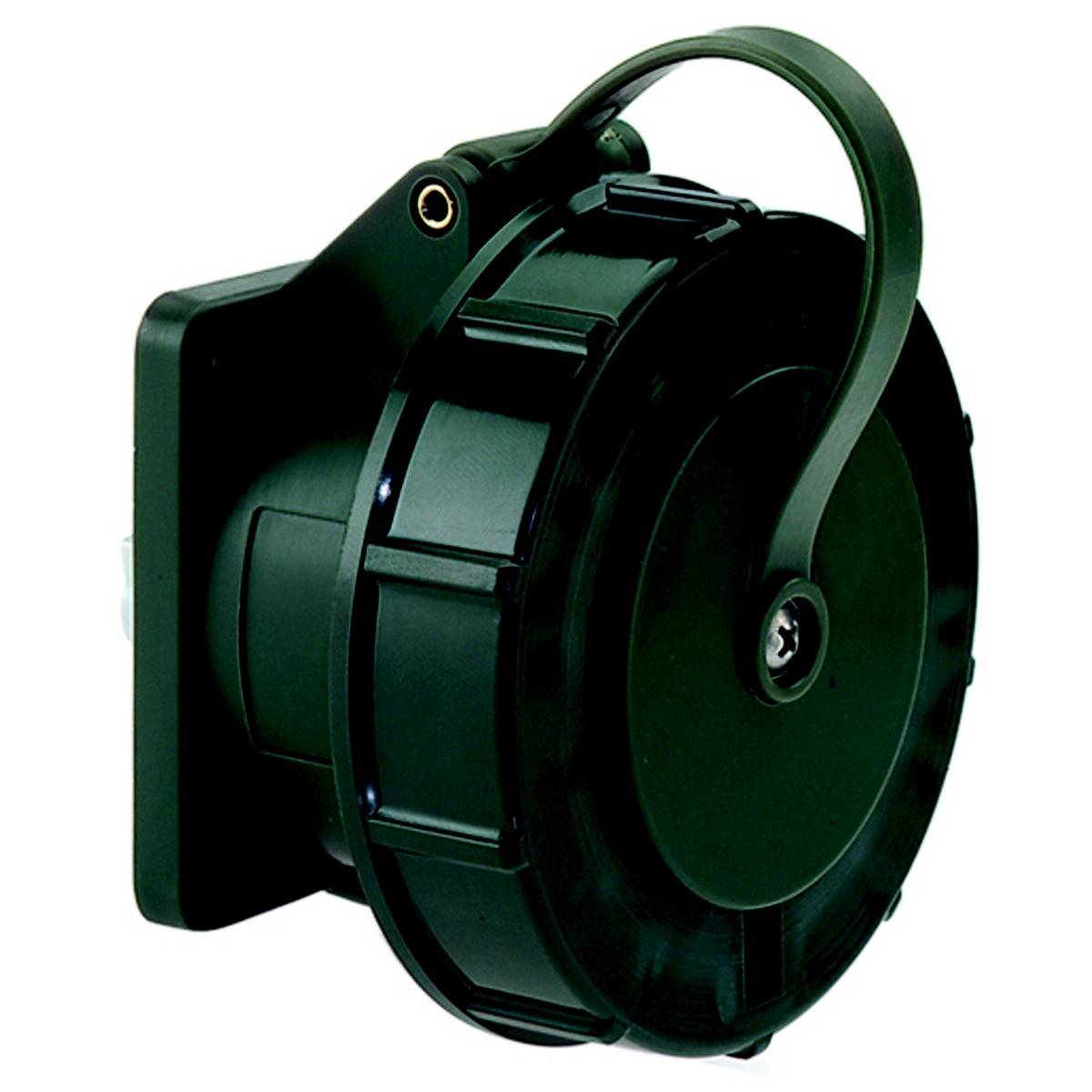

Bals Elektrotechnik 13930 13930 CEE add-on socket 16.0 A 4-pin 500 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Voltage according to EN 60309-2: 50-500 V (>300-500 Hz) green
- Number of pins: 4
- Time setting 2 h
- Colour code: Green
- RAL number: 6031
- Protection class (IP) IP67
- Connection technology: Screw less terminal
- With straight plug
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: Yes
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
- Nominal voltage
500 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP67
- Factory colour
Green
- Content
1 pc(s)
- Number of pins
4
- Connection
Clamp
- Material (details)
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135015 Bals Elektrotechnik 13930 13930 CEE add-on socket 16.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135015 Bals Elektrotechnik 13930 13930 CEE add-on socket 16.0 A 4-pin 500 V 1 pc(s)
Description
Panel-mount socket QUICK-connect TN straight
16A 4p (3P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9

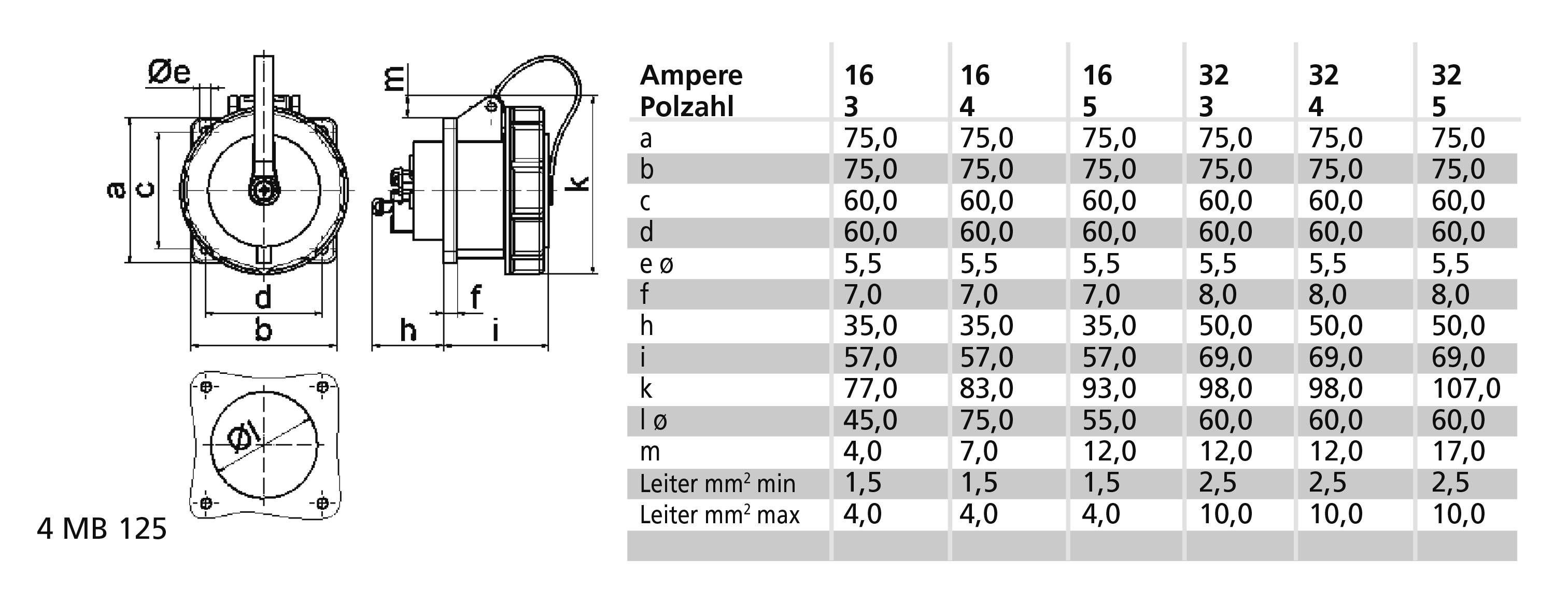

Device height: 84 mm, device width: 78.5 mm, device depth: 95 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96919 AS 022
This text is machine translated.
16A 4p (3P+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: Over 300 Hz up to and including 500Hz
Technical color code: Bronze green RAL 6031-F9
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: Other
Colour: Bronze green bayonet ring RAL 6031-F9, bronze green lid RAL 6031-F9, bronze green housing RAL 6031-F9
Device height: 84 mm, device width: 78.5 mm, device depth: 95 mm
Flange size vertical 75 mm, flange dimension horizontal 75 mm
Vertical hole spacing 60 mm, horizontal hole spacing 60 mm
Other technical characteristics: The bayonet cover is attached to the housing by means of a fastening strap
VG type no.: VG 96919 AS 022
