Bals Elektrotechnik 1411 1411 CEE flush-mount socket 16.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Flush-mounted version
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection type (IP) IP44
- Connection technology: Screw terminal
- Cable entry: Other
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE flush-mount socket
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screw terminals
- Type B
CEE plug
- Type
Flush-mounted
IP44
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
400 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3146030 Bals Elektrotechnik 1411 1411 CEE flush-mount socket 16.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146030 Bals Elektrotechnik 1411 1411 CEE flush-mount socket 16.0 A 5-pin 400 V 1 pc(s)
Description
Flush-mounted socket
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000

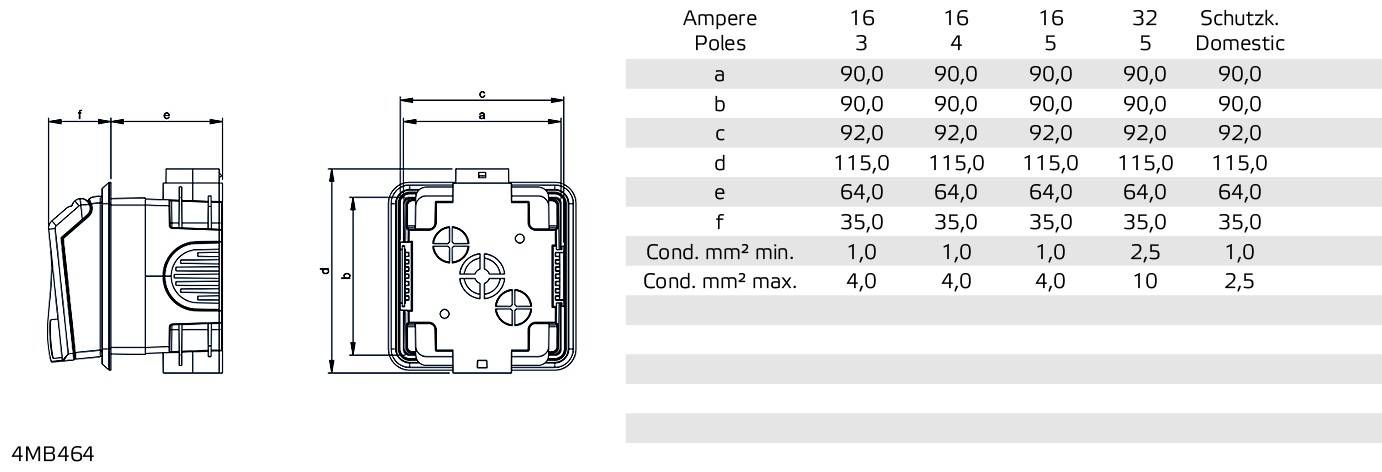

Housing size: 90x90 mm
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material ABS + Polycarbonate
Connection technology: With screw terminal
Cable entry: Other
Colour: White similar to RAL 9016
Device height: 115 mm, device width: 105 mm, device depth: 99 mm
Other technical features: Flush mounting (incl. flush-mounted socket box), architecture program TH, hinged lid with label field (optional: Lock)
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 90x90 mm
Contact carrier/contacts: The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Housing material ABS + Polycarbonate
Connection technology: With screw terminal
Cable entry: Other
Colour: White similar to RAL 9016
Device height: 115 mm, device width: 105 mm, device depth: 99 mm
Other technical features: Flush mounting (incl. flush-mounted socket box), architecture program TH, hinged lid with label field (optional: Lock)
This text is machine translated.
