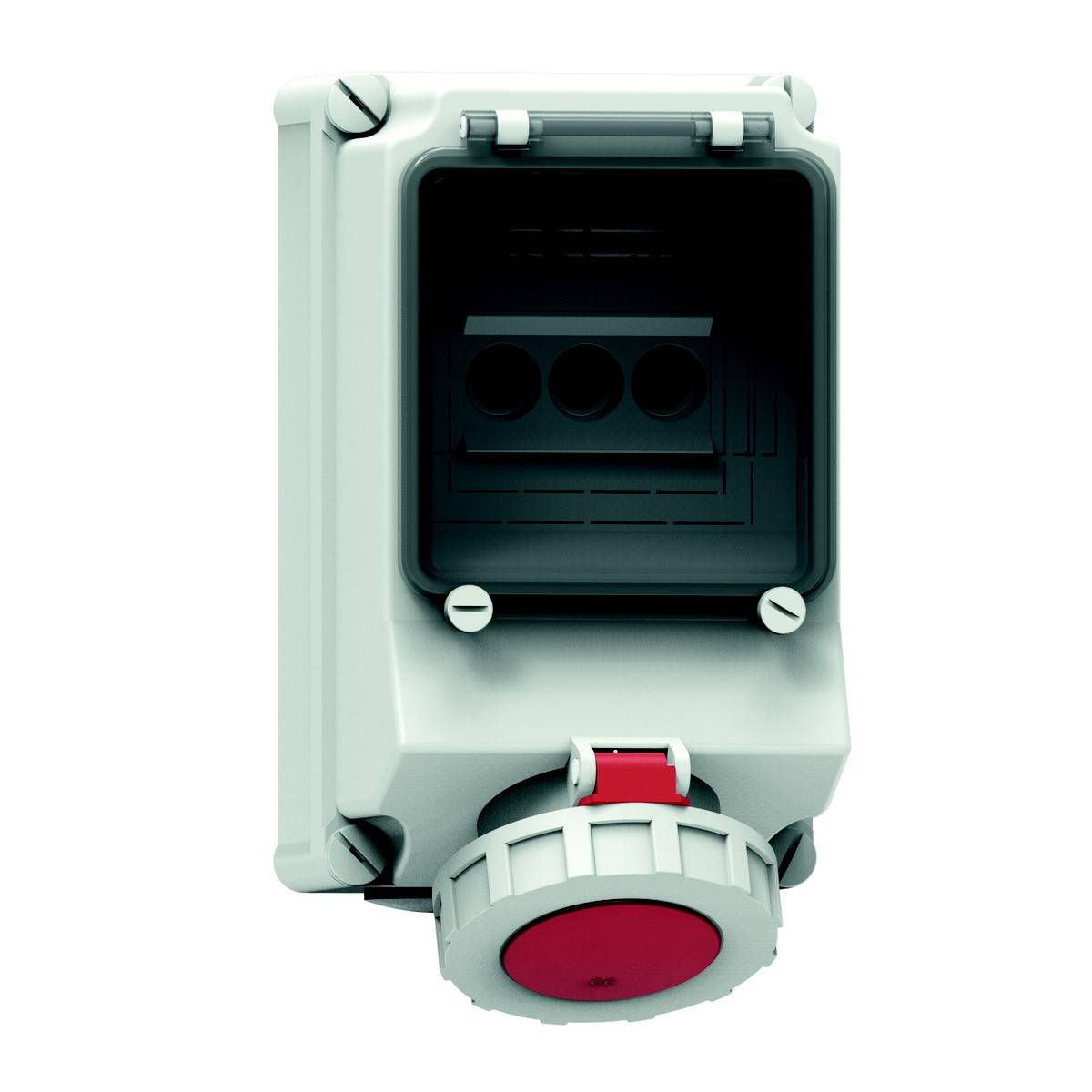

Bals Elektrotechnik 15013 15013 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection class (IP) IP67
- Switch: Without on/off switch
- Switch version: Without
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- D0-fuse protection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Cores
5
- Type
Lower and upper part
IP67
- Factory colour
Red
- Dim
(L x W x H) 195 x 160 x 304 mm
- Length
195 mm
- Width
160 mm
- Height
304 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146611 Bals Elektrotechnik 15013 15013 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146611 Bals Elektrotechnik 15013 15013 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket protected
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
D0-fuse protection
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, bayonet ring gray RAL 7035, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035

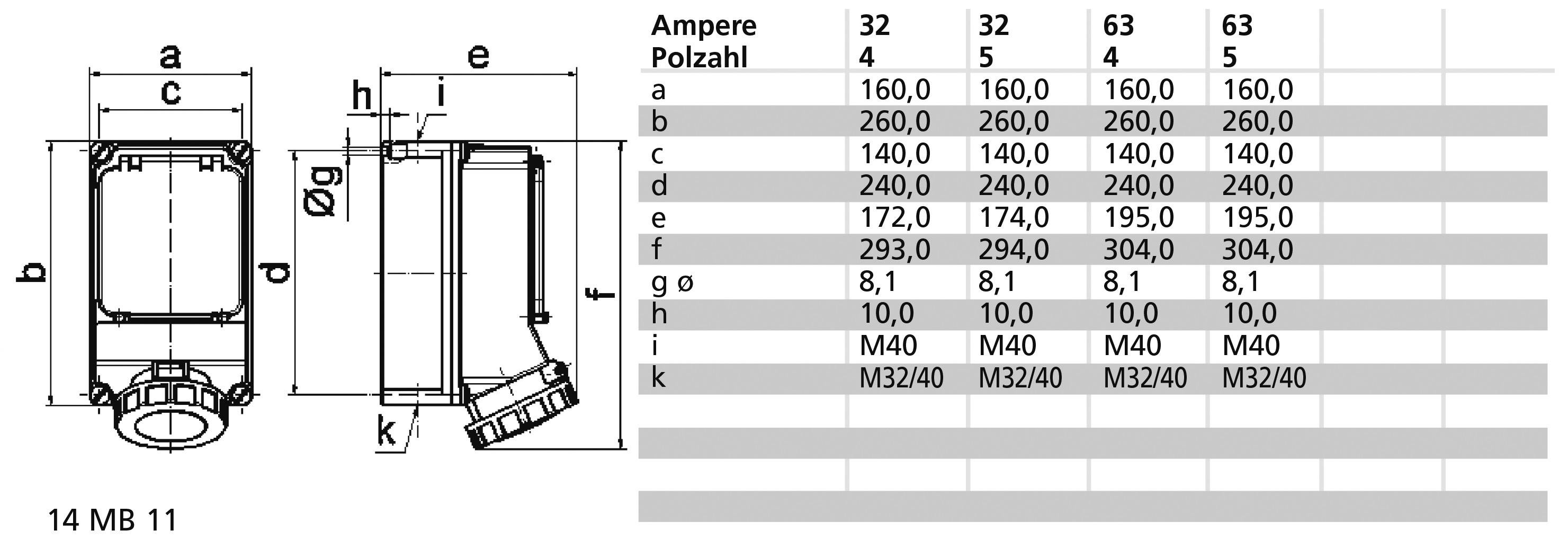

Device height: 304 mm, device width: 160 mm, device depth: 195 mm
Other technical features: The cable entry is open once at the top and twice at the bottom; a fuse socket D 02 3-pin is present under the operating flap
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
D0-fuse protection
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, bayonet ring gray RAL 7035, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035
Device height: 304 mm, device width: 160 mm, device depth: 195 mm
Other technical features: The cable entry is open once at the top and twice at the bottom; a fuse socket D 02 3-pin is present under the operating flap
