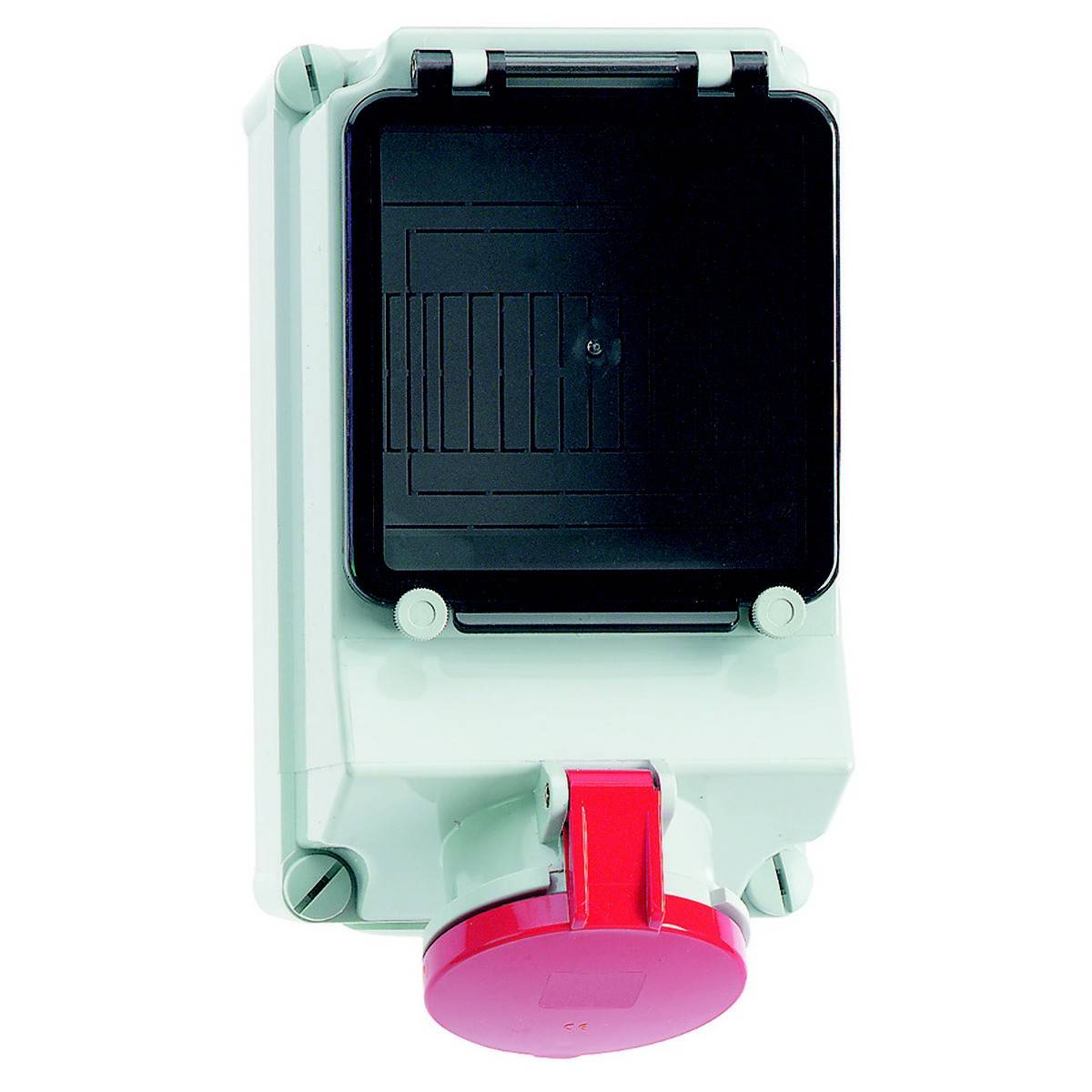

Bals Elektrotechnik 15036 15036 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Without on/off switch
- Switch version: Without
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Cores
5
- Type
Lower and upper part
IP44
- Factory colour
Red

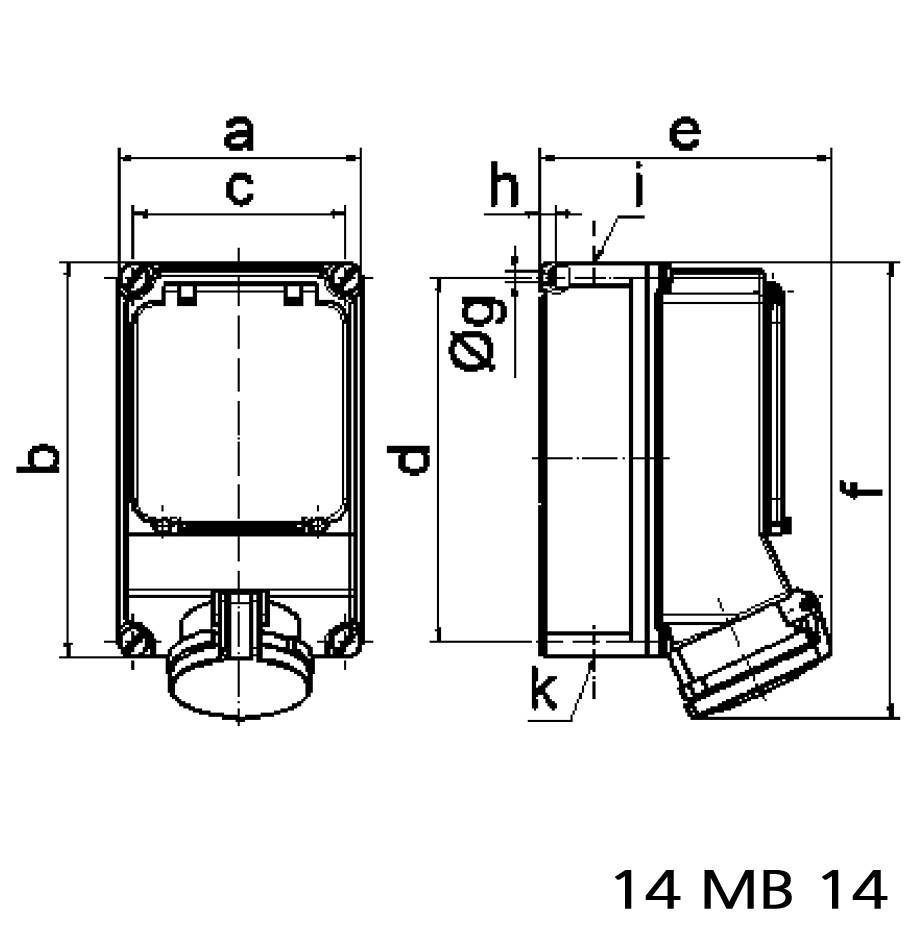

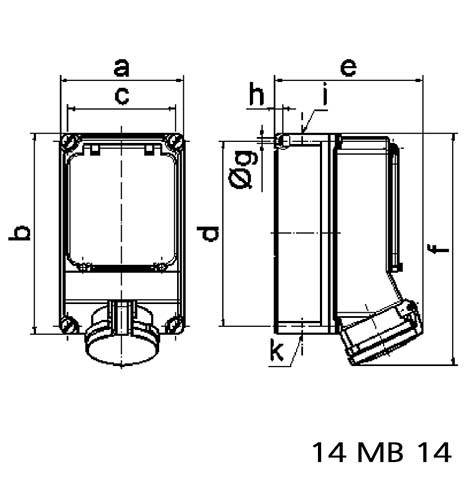

- Dim
(L x W x H) 185 x 160 x 303 mm
- Length
185 mm
- Width
160 mm
- Height
303 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146587 Bals Elektrotechnik 15036 15036 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146587 Bals Elektrotechnik 15036 15036 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket protected
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035
Device height: 303 mm, device width: 160 mm, device depth: 185 mm
Other technical features: The cable entry is open once on the top and twice on the bottom, a mounting rail is available in the bottom part of the housing, the safety cover is available with knockouts, a mounting rail for 7 division units is horizontal under the operating flap
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035
Device height: 303 mm, device width: 160 mm, device depth: 185 mm
Other technical features: The cable entry is open once on the top and twice on the bottom, a mounting rail is available in the bottom part of the housing, the safety cover is available with knockouts, a mounting rail for 7 division units is horizontal under the operating flap
This text is machine translated.
