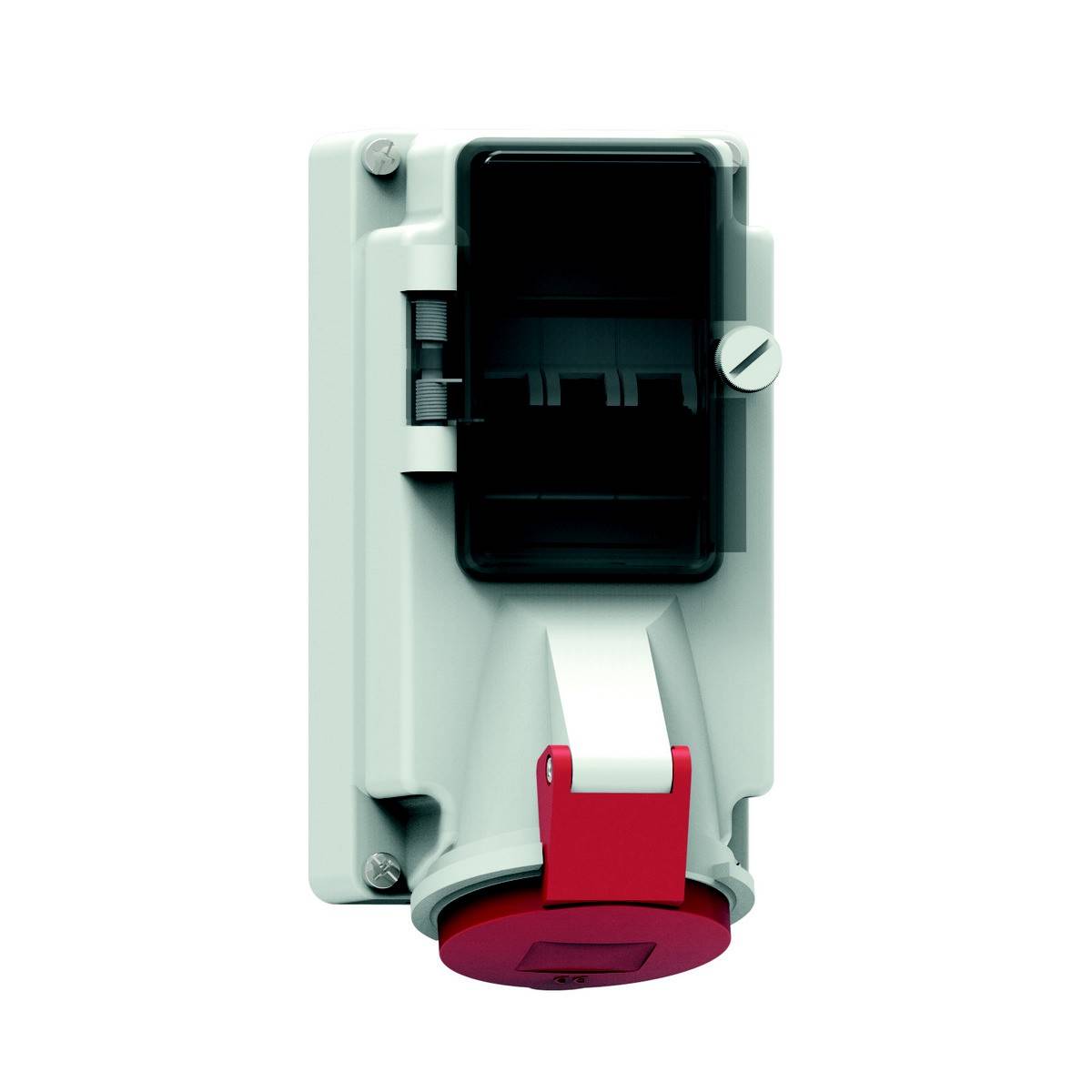

Bals Elektrotechnik 1506 1506 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Without on/off switch
- Switch version: Without
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Auto-secure
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
CEE socket (5-pin, 16 A)
- Cores
5
- Type
Lower and upper part
IP44
- Factory colour
Red

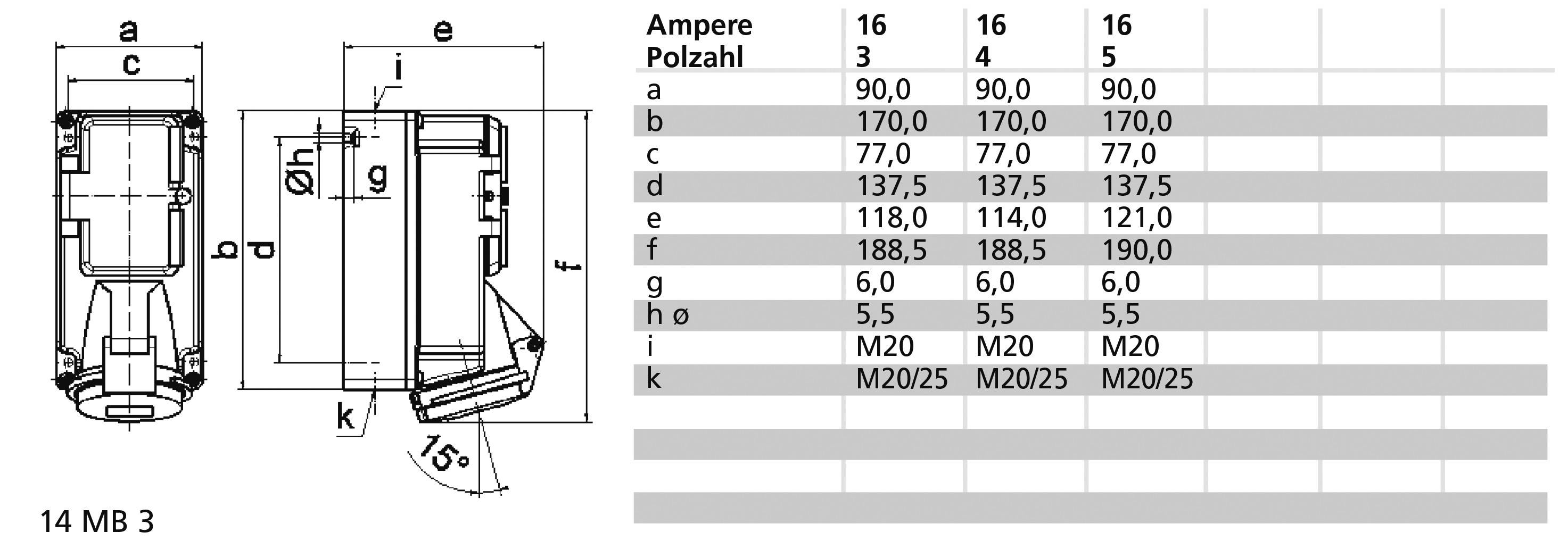

- Dim
(L x W x H) 122 x 90 x 190 mm
- Length
122 mm
- Width
90 mm
- Height
190 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147364 Bals Elektrotechnik 1506 1506 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147364 Bals Elektrotechnik 1506 1506 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket QUICK-CONNECT TE, protected
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Auto-secure
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Smoky topaz control flap, red hinged lid RAL 3000, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035
Device height: 190 mm, device width: 90 mm, device depth: 122 mm
Other technical features: The cable entry is open once and closed twice at the bottom. The lower part of the housing can be rotated by 180°, with built-in 3-pin circuit breaker C
