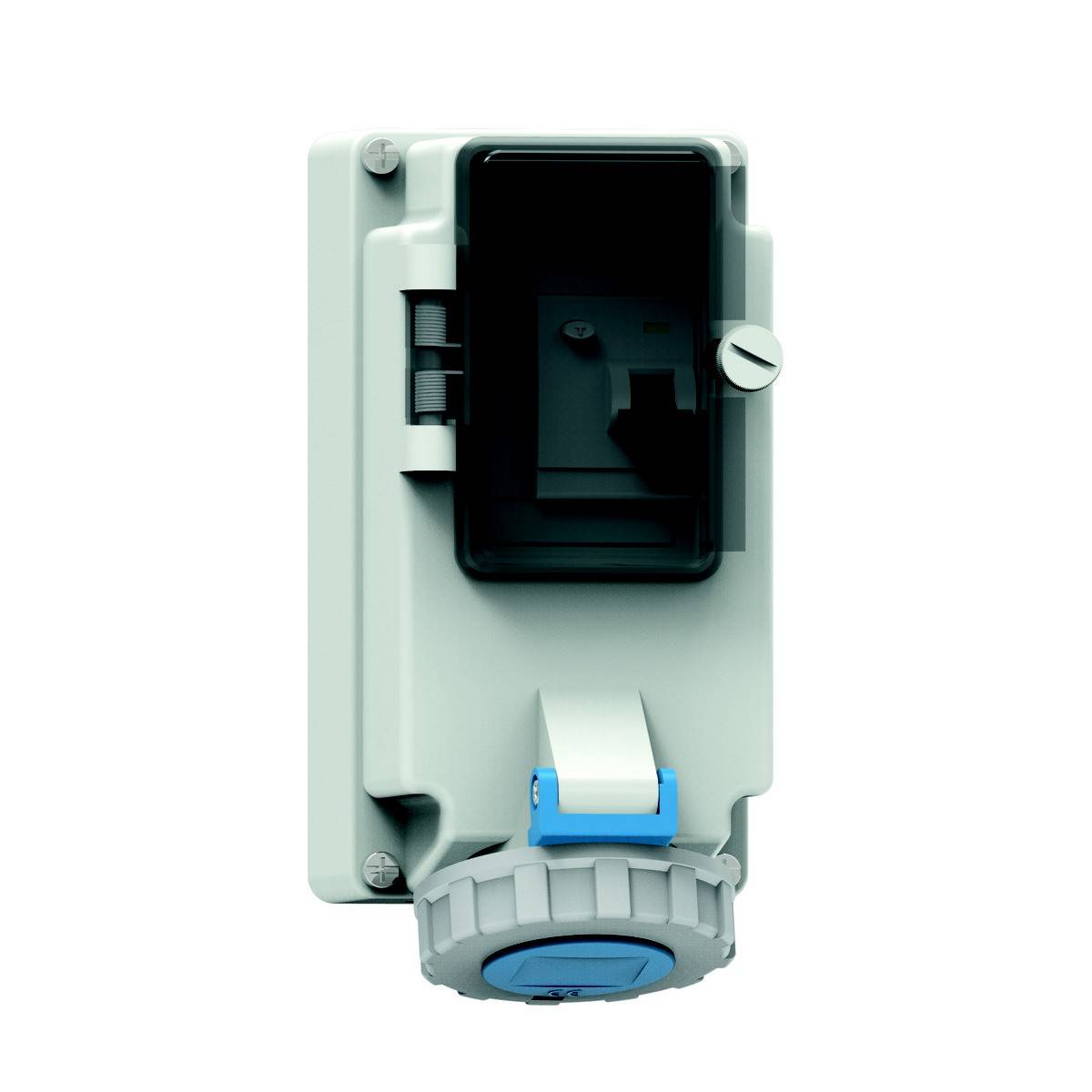

Bals Elektrotechnik 15106 15106 CEE wall socket 16.0 A 3-pin 230 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of poles: 3
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Blue
- Protection class (IP) IP67
- Switch: Without on/off switch
- Switch version: Without
- With FI circuit breaker: Yes
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Other
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Cores
3
- Type
Lower and upper part
IP67
- Factory colour
Blue

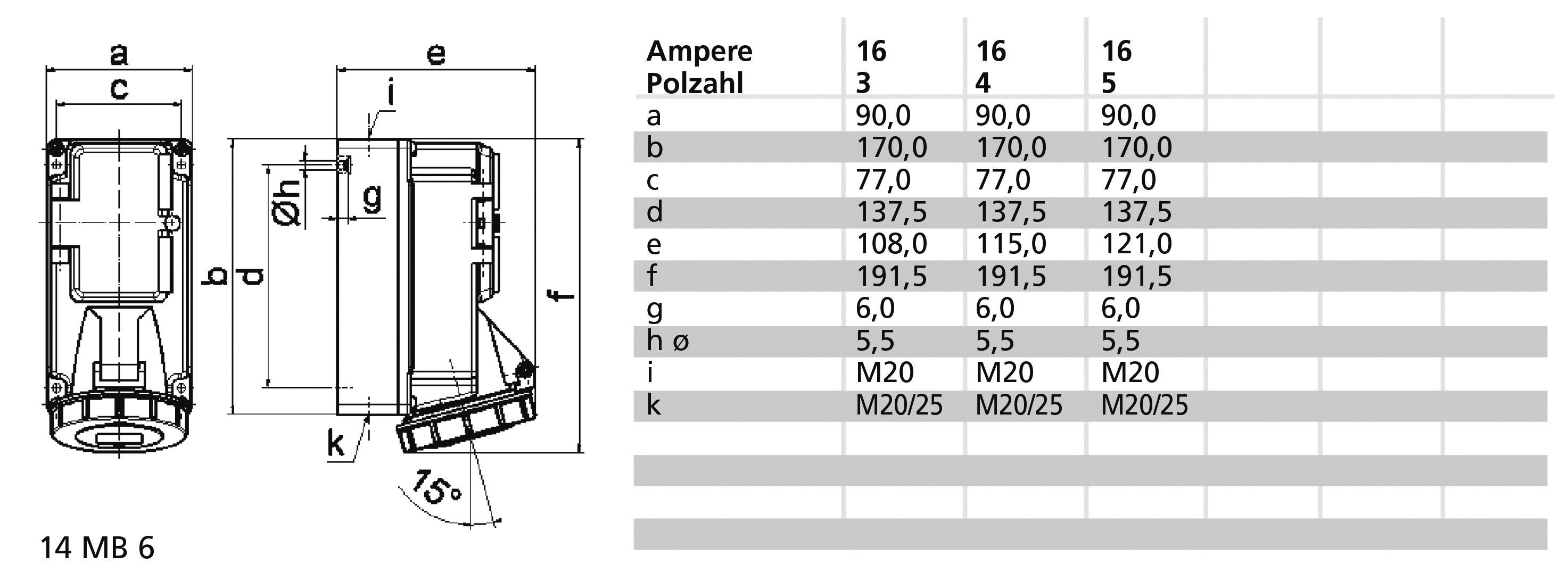

- Dim
(L x W x H) 109 x 90 x 195 mm
- Length
109 mm
- Width
90 mm
- Height
195 mm
- Content
1 pc(s)
- Number of pins
3
- Material
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146586 Bals Elektrotechnik 15106 15106 CEE wall socket 16.0 A 3-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146586 Bals Elektrotechnik 15106 15106 CEE wall socket 16.0 A 3-pin 230 V 1 pc(s)
Description
Wall socket QUICK-CONNECT protected
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Other
FI-circuit breaker FI 25/0.03A 2p
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Smoky topaz control flap, blue flap lid RAL 5015, bayonet ring gray RAL 7035, lower section of the housing gray RAL 7035, housing part gray RAL 7035
Device height: 195 mm, device width: 90 mm, device depth: 109 mm
Other technical features: The cable entry is open once and closed twice at the bottom. The lower part of the housing can be rotated by 180°, With built-in Fi circuit breaker 25/0.03 A 2-pin
This text is machine translated.
16A 3P (2P+PE) 230V (200 - 250V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Other
FI-circuit breaker FI 25/0.03A 2p
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Smoky topaz control flap, blue flap lid RAL 5015, bayonet ring gray RAL 7035, lower section of the housing gray RAL 7035, housing part gray RAL 7035
Device height: 195 mm, device width: 90 mm, device depth: 109 mm
Other technical features: The cable entry is open once and closed twice at the bottom. The lower part of the housing can be rotated by 180°, With built-in Fi circuit breaker 25/0.03 A 2-pin
