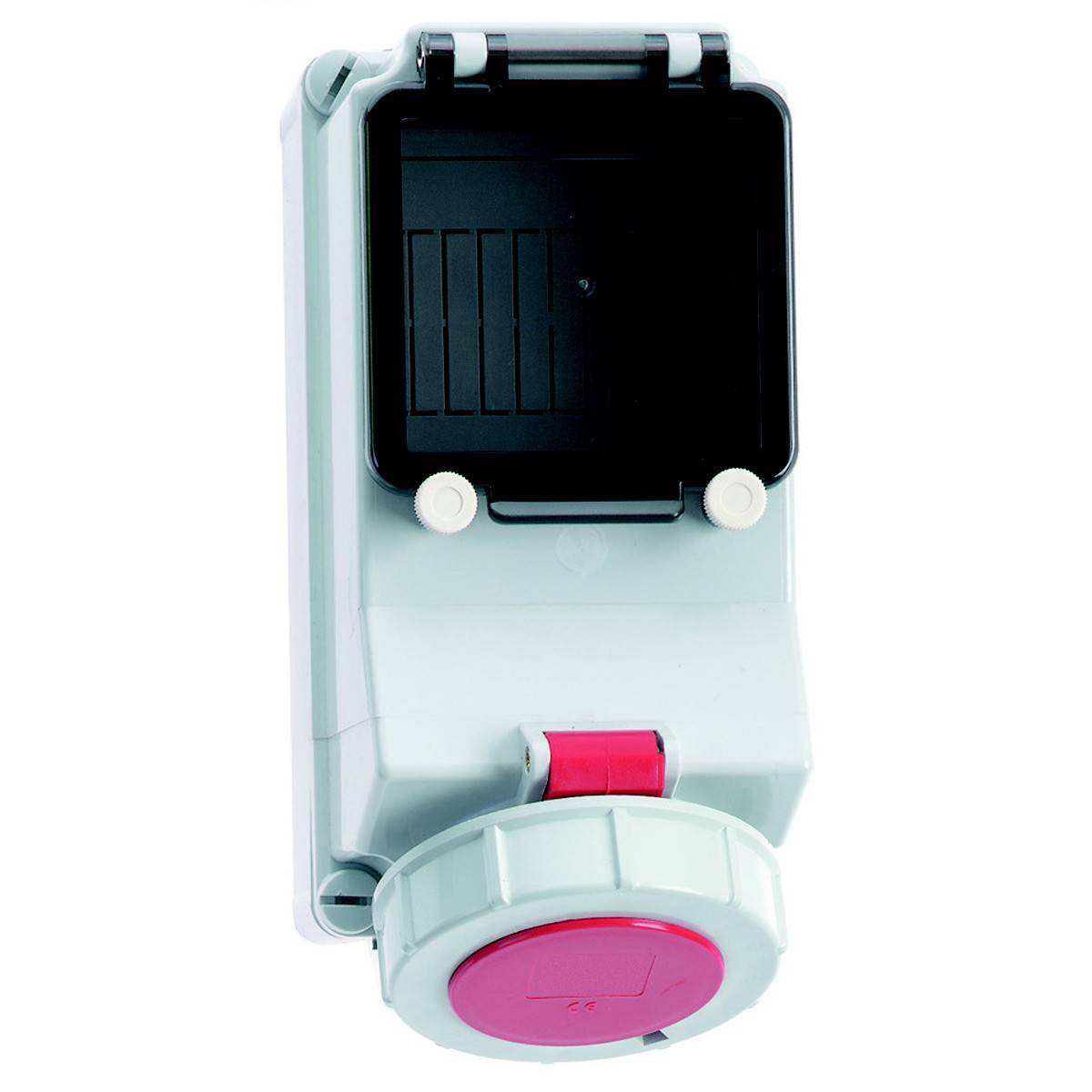

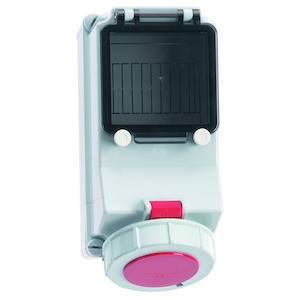

Bals Elektrotechnik 15112 15112 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection class (IP) IP67
- Switch: Without on/off switch
- Switch version: Without
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Cores
5
- Type
Lower and upper part
IP67
- Factory colour
Red
- Dim
(L x W x H) 150 x 118 x 260 mm
- Length
150 mm
- Width
118 mm
- Height
260 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146527 Bals Elektrotechnik 15112 15112 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146527 Bals Elektrotechnik 15112 15112 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket QUICK-CONNECT protected
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, bayonet ring gray RAL 7035, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035

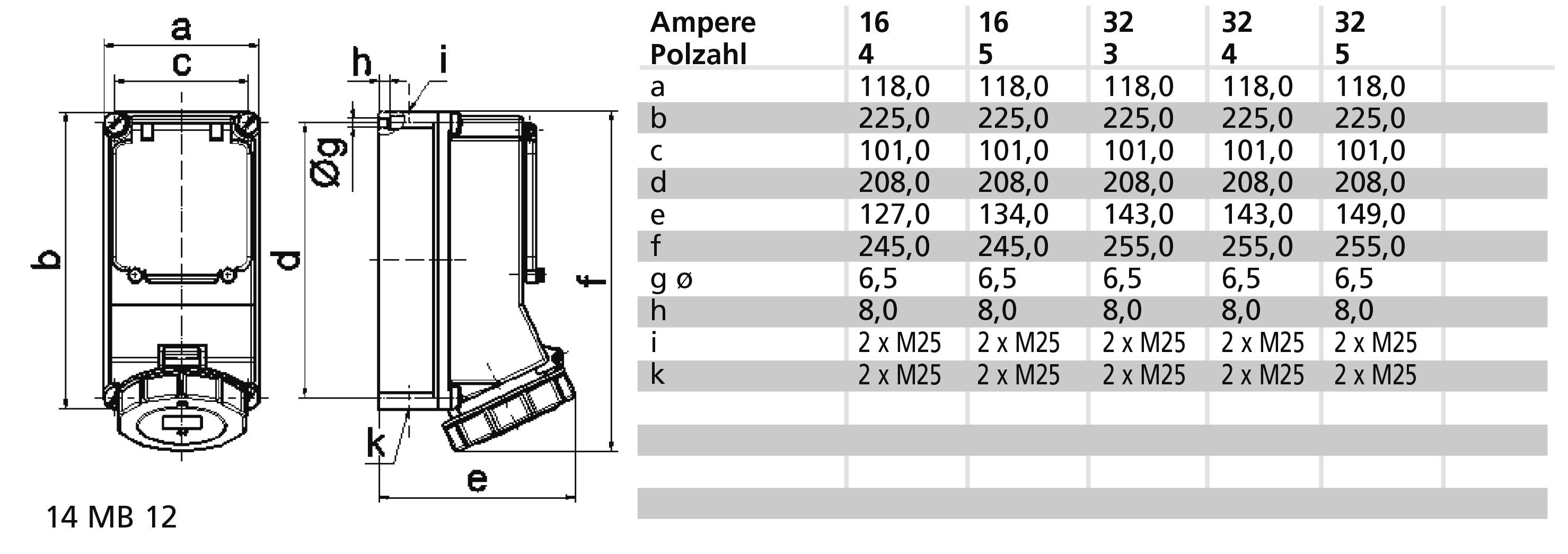

Device height: 260 mm, device width: 118 mm, device depth: 150 mm
Other technical features: The cable entry is open once on top, closed once on top, closed twice on bottom, a mounting rail is available in the lower part of the casing, the safety cover is available with knockouts, a mounting rail for 5 division units is available horizontally under the control flap
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, bayonet ring gray RAL 7035, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 150 mm
Other technical features: The cable entry is open once on top, closed once on top, closed twice on bottom, a mounting rail is available in the lower part of the casing, the safety cover is available with knockouts, a mounting rail for 5 division units is available horizontally under the control flap
This text is machine translated.
