Bals Elektrotechnik 1587 1587 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Without on/off switch
- Switch version: Without
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- D0-fuse protection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Cores
5
- Type
Lower and upper part
IP44
- Factory colour
Red
- Dim
(L x W x H) 130 x 118 x 243 mm
- Length
130 mm
- Width
118 mm
- Height
243 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147345 Bals Elektrotechnik 1587 1587 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147345 Bals Elektrotechnik 1587 1587 CEE wall socket 16.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket QUICK-CONNECT TE, protected
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D0-fuse protection
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035

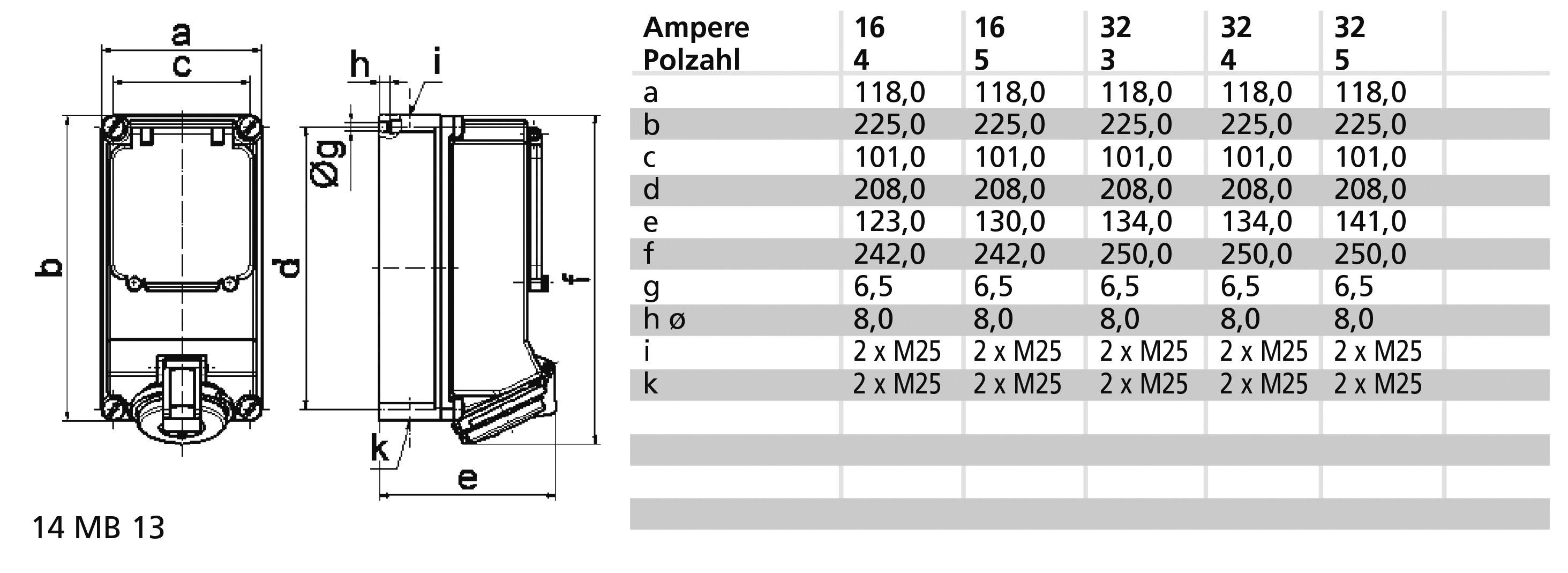

Device height: 243 mm, device width: 118 mm, device depth: 130 mm
Other technical features: The cable entry is open once, closed once on top, closed twice on bottom, a fuse socket D 01 3-pin is present under the operating flap
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D0-fuse protection
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Smoky topaz control flap, red hinged lid RAL 3000, gray housing screws RAL 7035, gray lower section of the housing RAL 7035, gray part of the housing RAL 7035
Device height: 243 mm, device width: 118 mm, device depth: 130 mm
Other technical features: The cable entry is open once, closed once on top, closed twice on bottom, a fuse socket D 01 3-pin is present under the operating flap
This text is machine translated.
