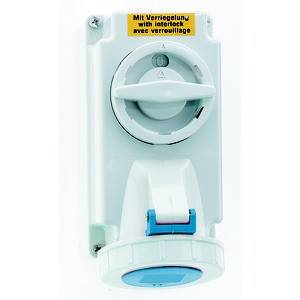

Bals Elektrotechnik 160053 160053 CEE wall socket 16.0 A 4-pin 230 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Protection class (IP) IP67
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
230 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Cores
4
- Type
Lower and upper part
IP67
- Factory colour
Blue
- Dim
(L x W x H) 115 x 90 x 194 mm
- Length
115 mm
- Width
90 mm
- Height
194 mm
- Content
1 pc(s)
- Number of pins
4
- Material
Plastic
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147359 Bals Elektrotechnik 160053 160053 CEE wall socket 16.0 A 4-pin 230 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147359 Bals Elektrotechnik 160053 160053 CEE wall socket 16.0 A 4-pin 230 V 1 pc(s)
Description

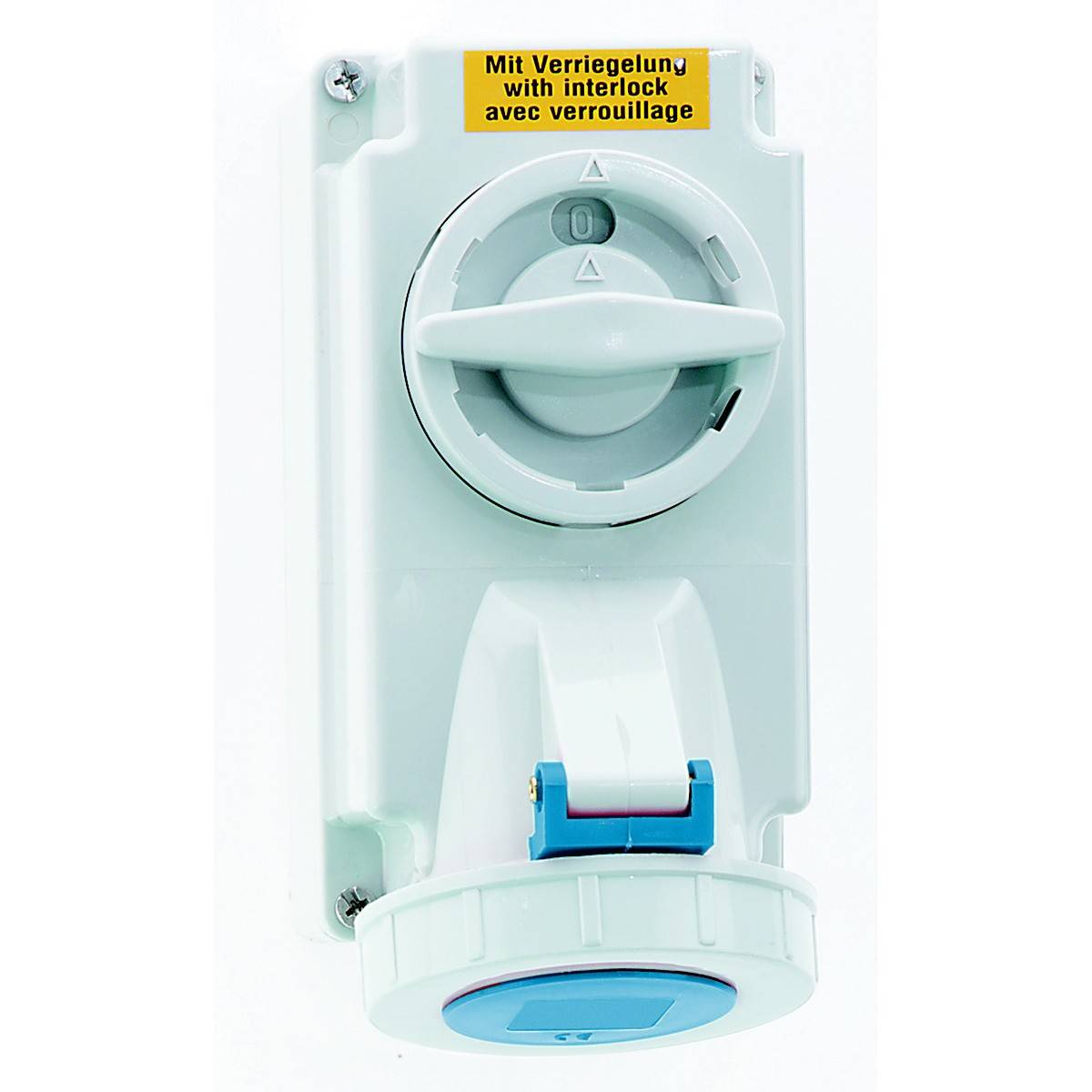

Wall socket can be switched off, locked
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid blue RAL 5015, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035

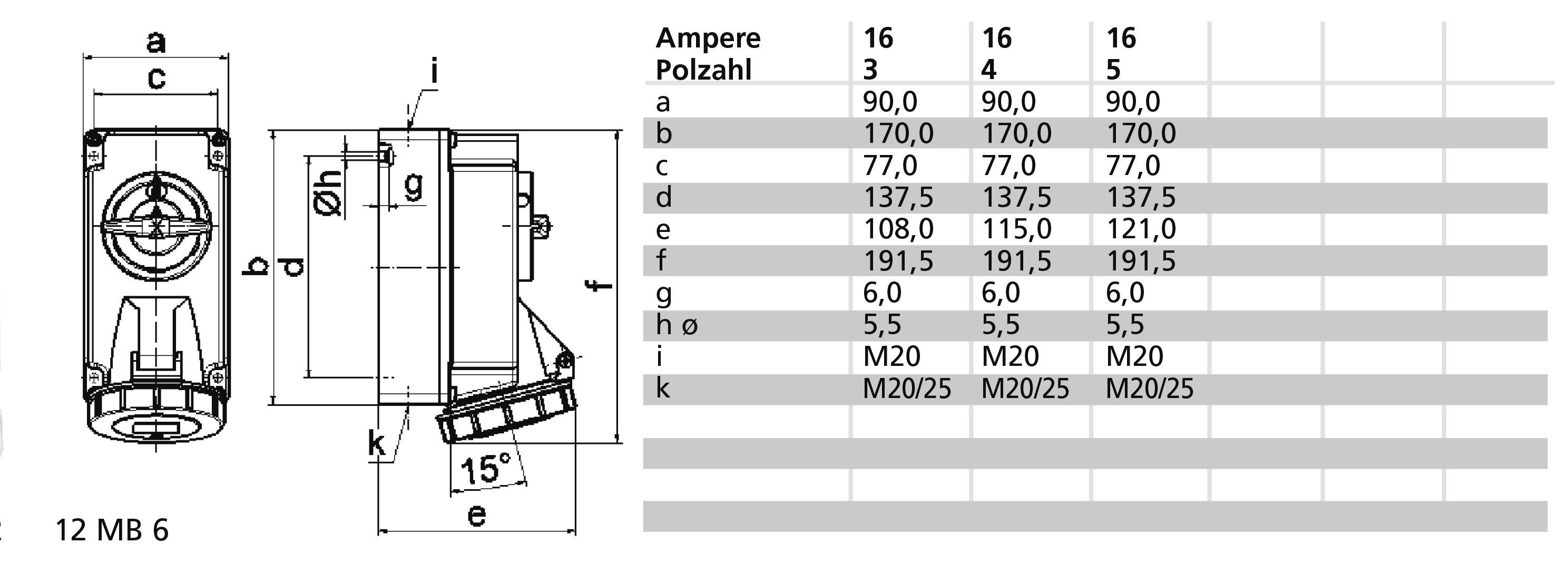

Device height: 194 mm, device width: 90 mm, device depth: 115 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, lockable in 0 position for up to 3 U-locks with a clamp diameter of up to 7mm. The lower part of the housing can be rotated by 180°
This text is machine translated.
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP67
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid blue RAL 5015, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 194 mm, device width: 90 mm, device depth: 115 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, lockable in 0 position for up to 3 U-locks with a clamp diameter of up to 7mm. The lower part of the housing can be rotated by 180°
