Bals Elektrotechnik 160177 160177 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection class (IP) IP67
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Cores
5
- Type
Lower and upper part
IP67
- Factory colour
Red
- Dim
(L x W x H) 150 x 118 x 260 mm
- Length
150 mm
- Width
118 mm
- Height
260 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
Base unit and cover
5
Plastic
Nickel-plated
32 A
CuZn
IP67
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147377 Bals Elektrotechnik 160177 160177 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147377 Bals Elektrotechnik 160177 160177 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Description

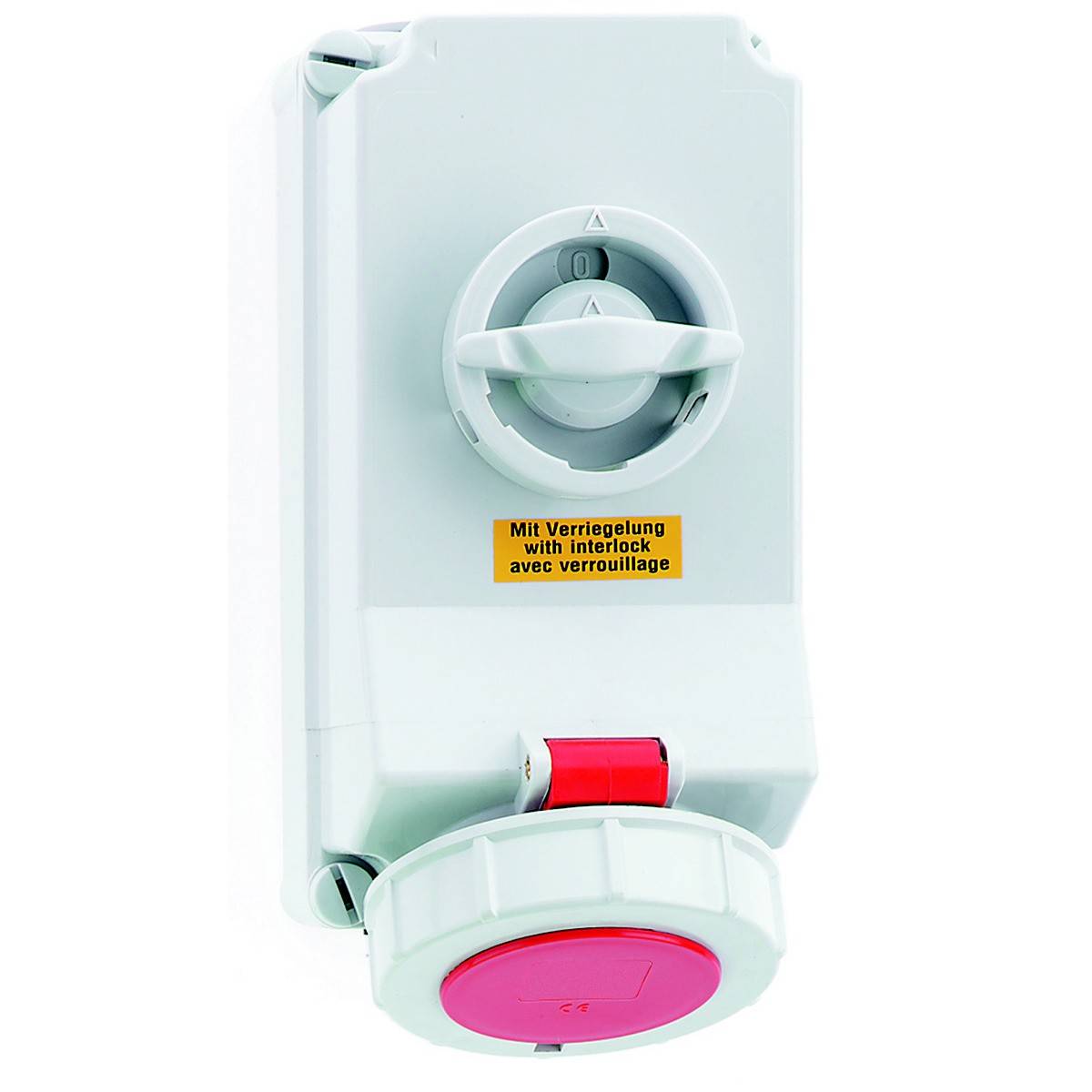

Wall socket can be switched off, locked
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, housing screws gray RAL 7035, housing bottom gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035

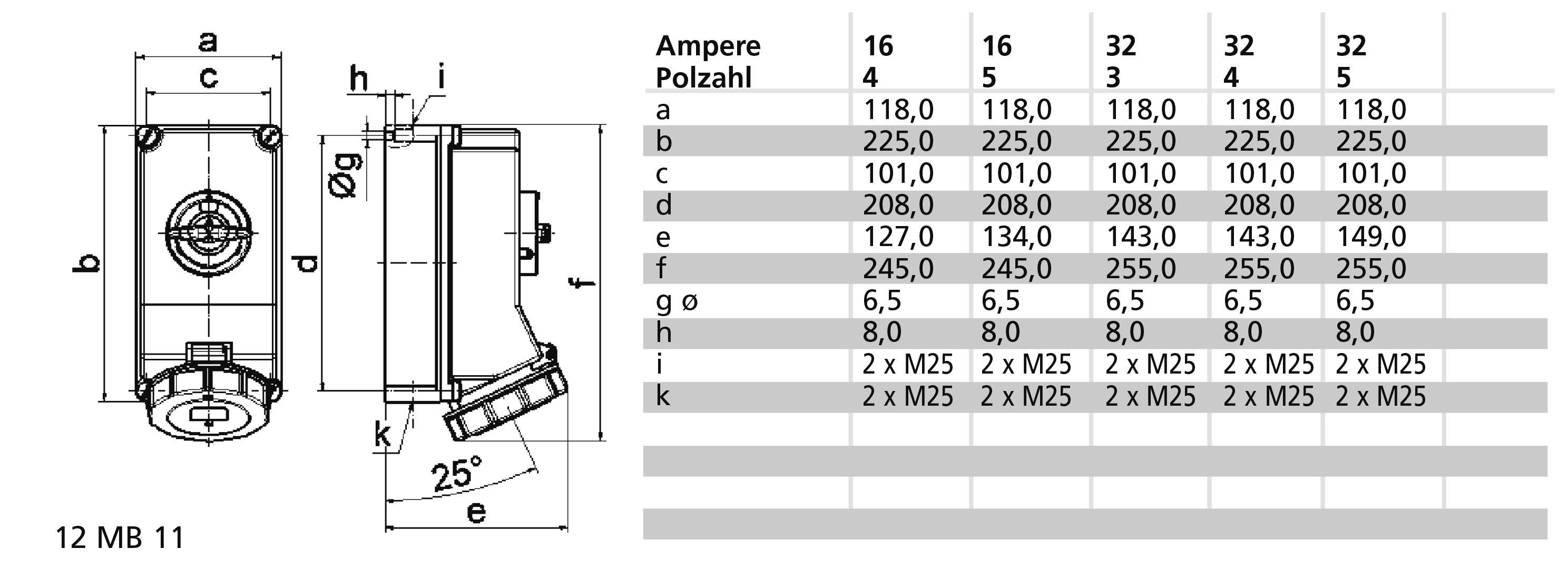

Device height: 260 mm, device width: 118 mm, device depth: 150 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, housing screws gray RAL 7035, housing bottom gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 150 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
