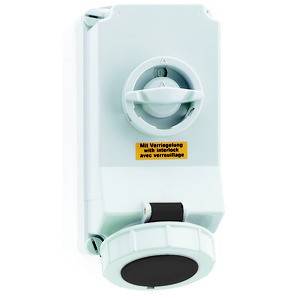

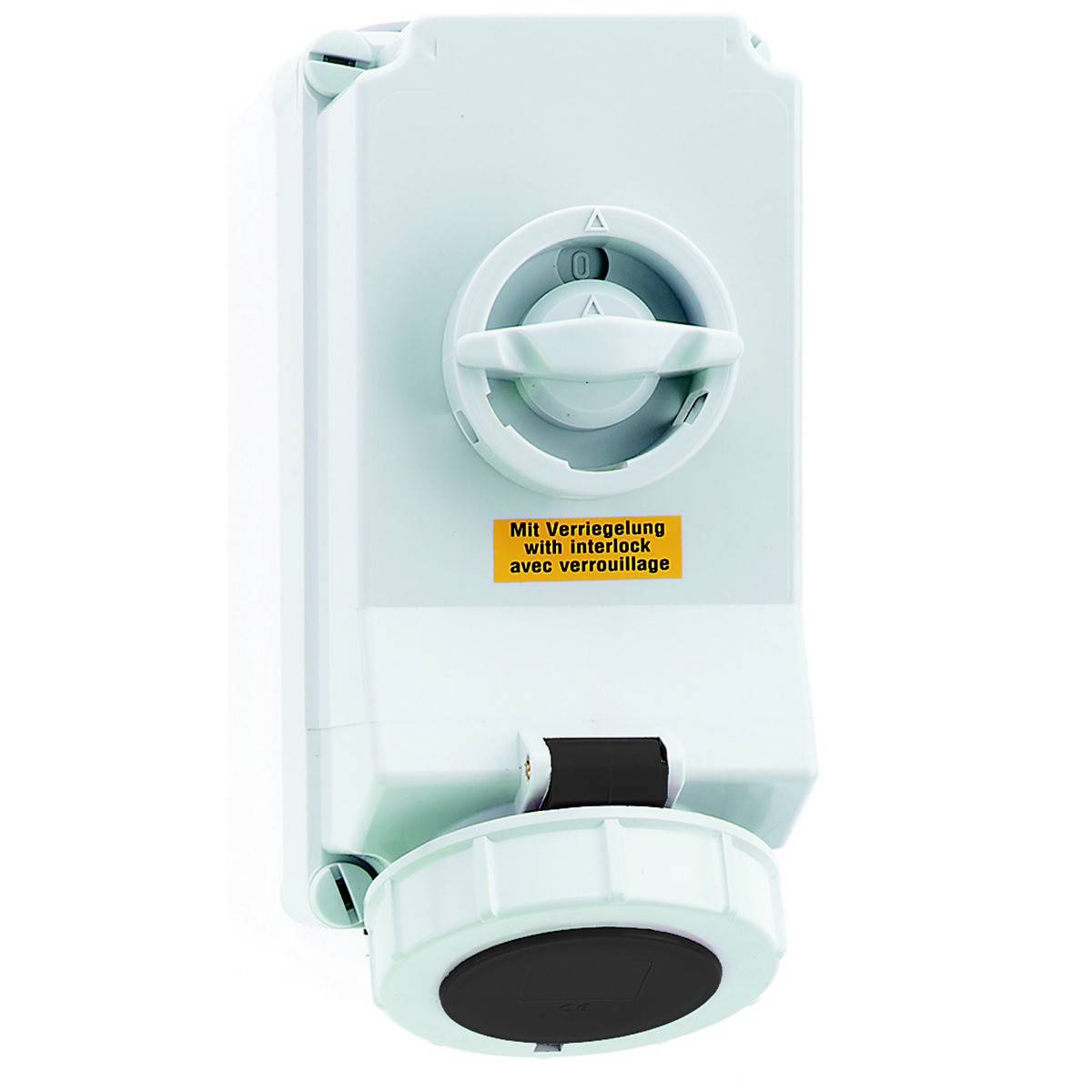

Bals Elektrotechnik 160179 160179 CEE wall socket 32.0 A 4-pin 500 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Protection class (IP) IP67
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
500 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Cores
4
- Type
Lower and upper part
IP67
- Factory colour
Black

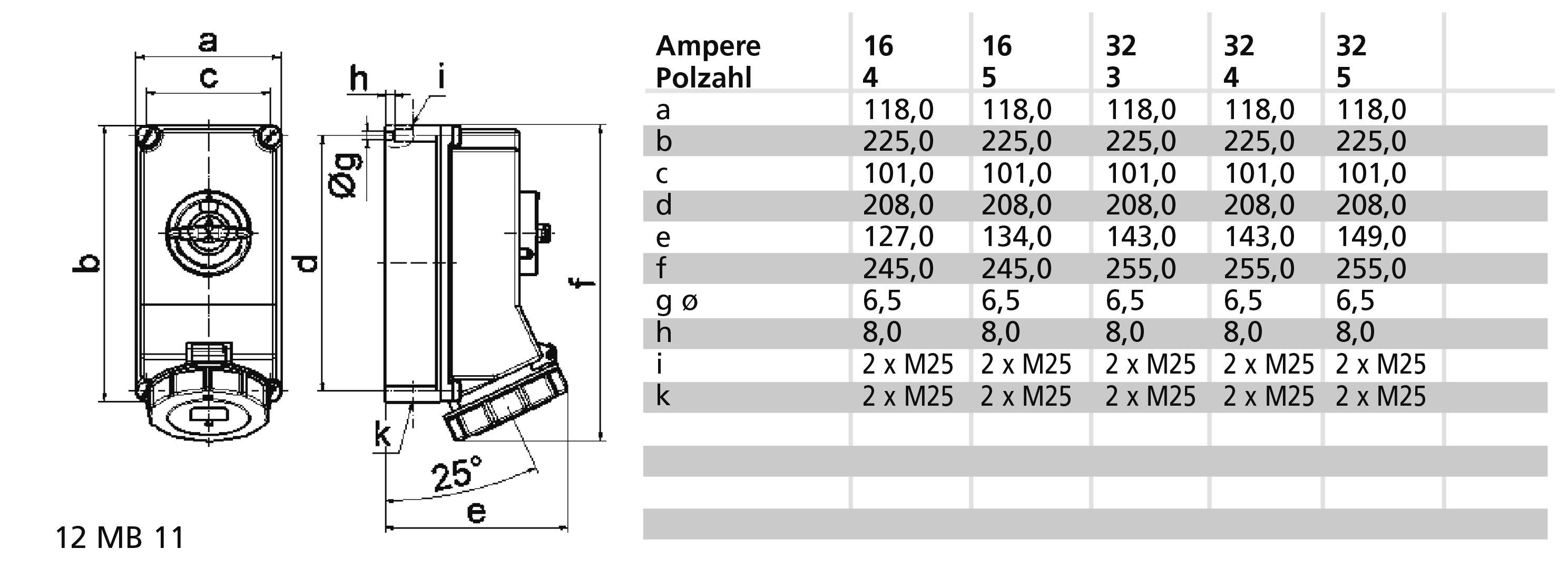

- Dim
(L x W x H) 144 x 118 x 260 mm
- Length
144 mm
- Width
118 mm
- Height
260 mm
- Content
1 pc(s)
- Number of pins
4
- Material
Plastic
- Operating voltage
500 V
Base unit and cover
4
Plastic
Nickel-plated
32 A
CuZn
IP67
FALSE
7 h
Black
500 V (50+60 Hz) black
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147365 Bals Elektrotechnik 160179 160179 CEE wall socket 32.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147365 Bals Elektrotechnik 160179 160179 CEE wall socket 32.0 A 4-pin 500 V 1 pc(s)
Description
Wall socket can be switched off, locked
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged lid black RAL 9005, bayonet ring gray RAL 7035, housing screws gray RAL 7035, housing bottom gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP67
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged lid black RAL 9005, bayonet ring gray RAL 7035, housing screws gray RAL 7035, housing bottom gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
