Bals Elektrotechnik 160181 160181 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type
Lower and upper part
IP44
- Factory colour
Red

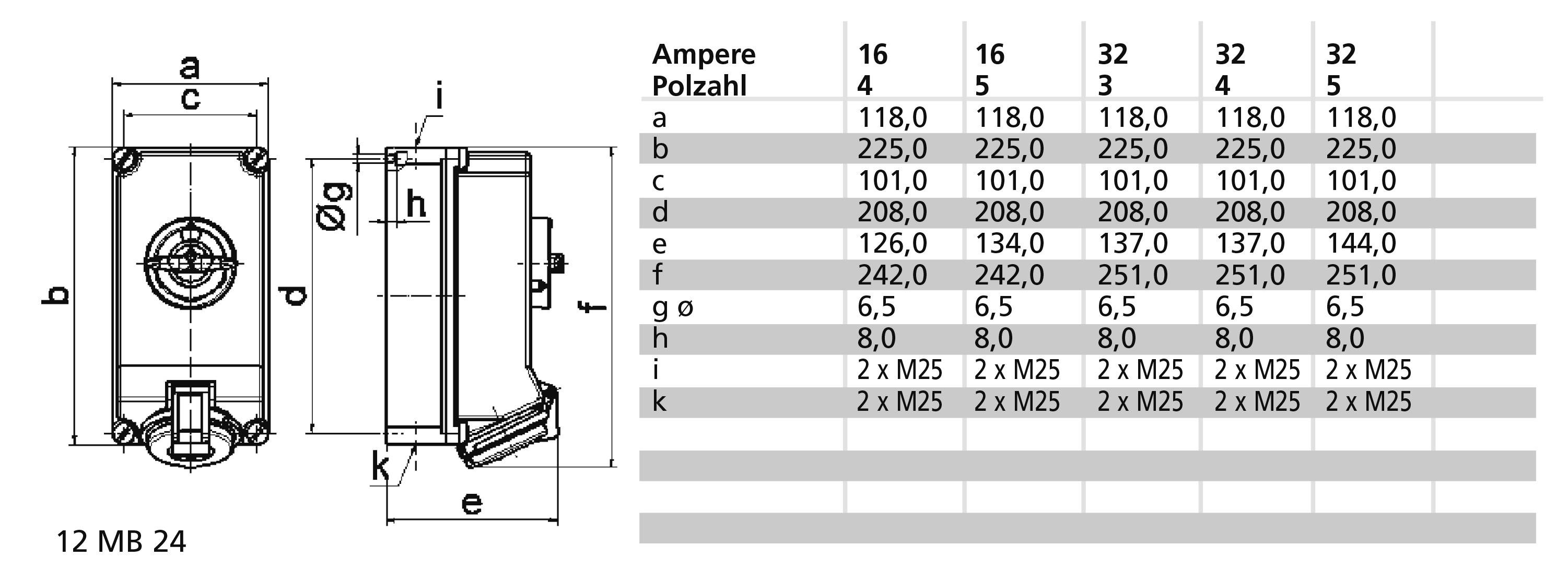

- Dim
(L x W x H) 144 x 118 x 251 mm
- Length
144 mm
- Width
118 mm
- Height
251 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147401 Bals Elektrotechnik 160181 160181 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147401 Bals Elektrotechnik 160181 160181 CEE wall socket 32.0 A 5-pin 400 V 1 pc(s)
Description

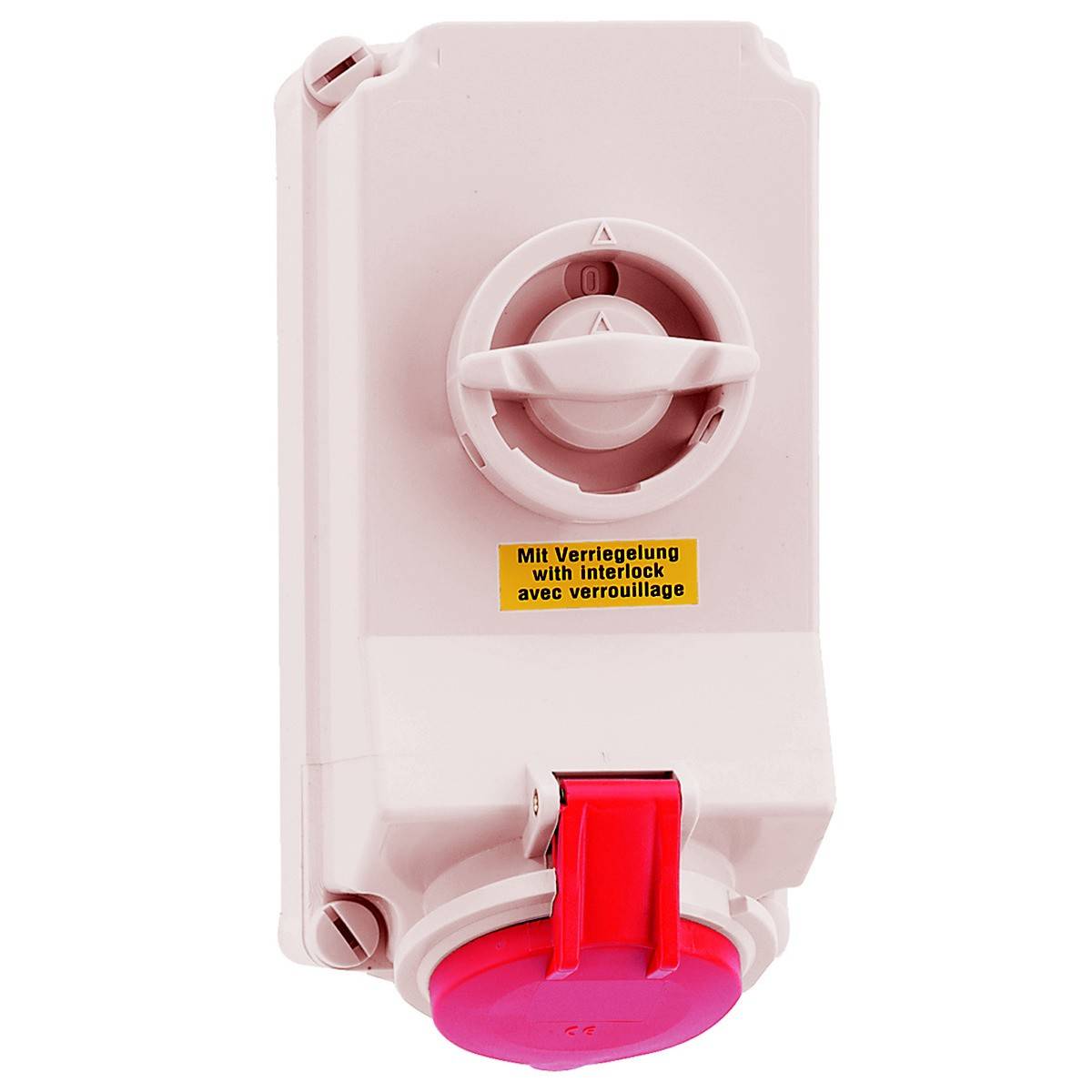

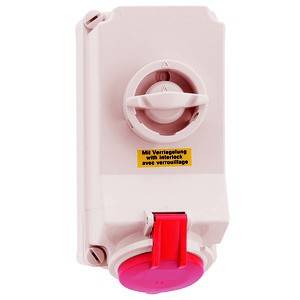

Wall socket can be switched off, locked
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Device color: Light beige upper part of housing, red RAL 3000 hinged lid, light beige lower case section, pale beige switch knob, pale beige case screws
Device height: 251 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Device color: Light beige upper part of housing, red RAL 3000 hinged lid, light beige lower case section, pale beige switch knob, pale beige case screws
Device height: 251 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
