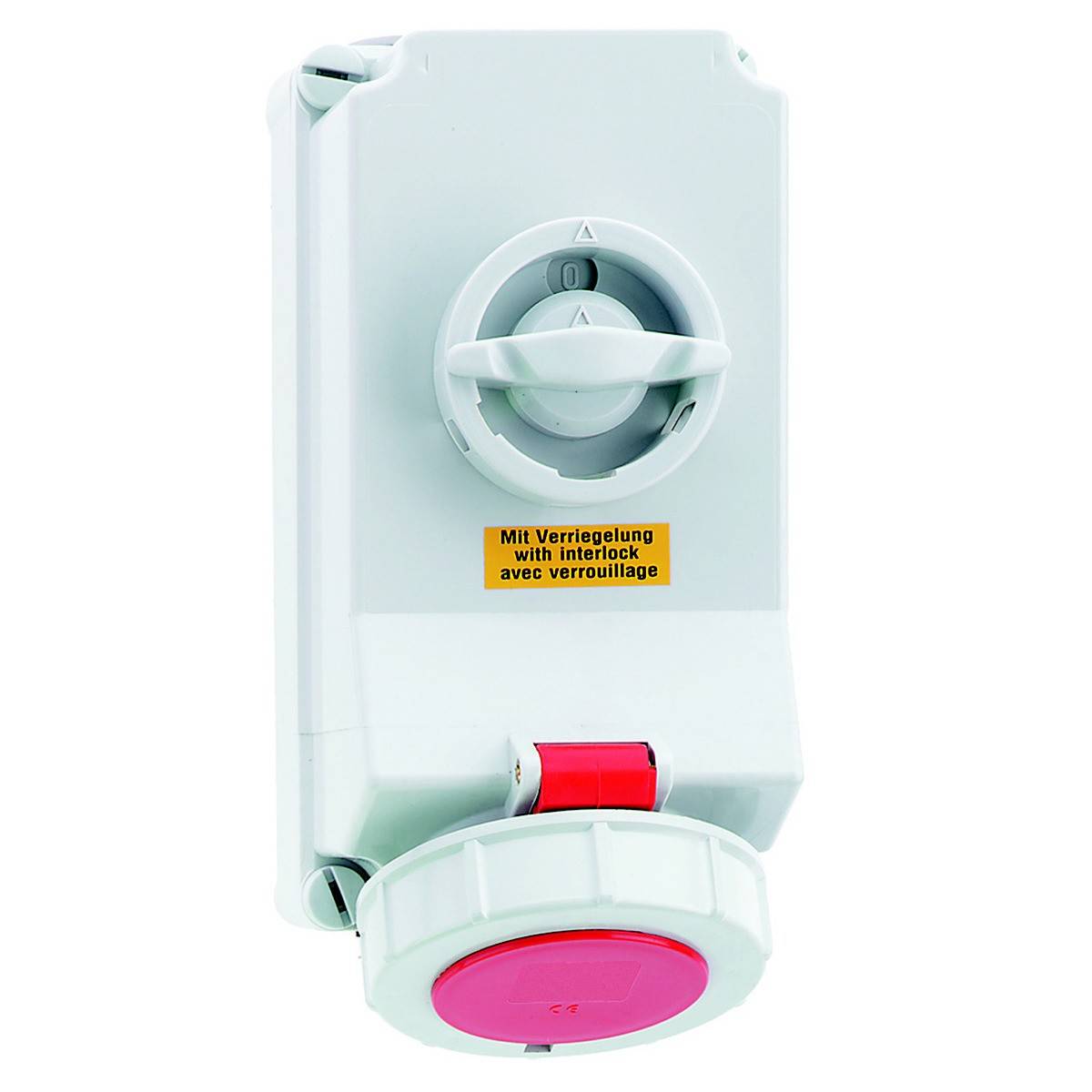

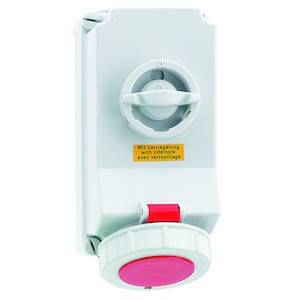

Bals Elektrotechnik 16050 16050 CEE wall socket 32.0 A 4-pin 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 4
- Voltage according to EN 60309-2: Other
- Time setting 3 h
- Colour code: Red
- Protection class (IP) IP67
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Type A
CEE plug
- Type B
CEE plug
- Type
Lower and upper part
IP67
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
4
- Material
Plastic
Base unit and cover
4
Plastic
Nickel-plated
32 A
CuZn
IP67
FALSE
3 h
Red
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3146581 Bals Elektrotechnik 16050 16050 CEE wall socket 32.0 A 4-pin 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146581 Bals Elektrotechnik 16050 16050 CEE wall socket 32.0 A 4-pin 1 pc(s)
Description
Wall socket TE can be switched off, locked
32A 4p (3P+PE) 380 and 440V (380V~(50Hz) 440V~(60Hz) Only for cool containers) 3h IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000

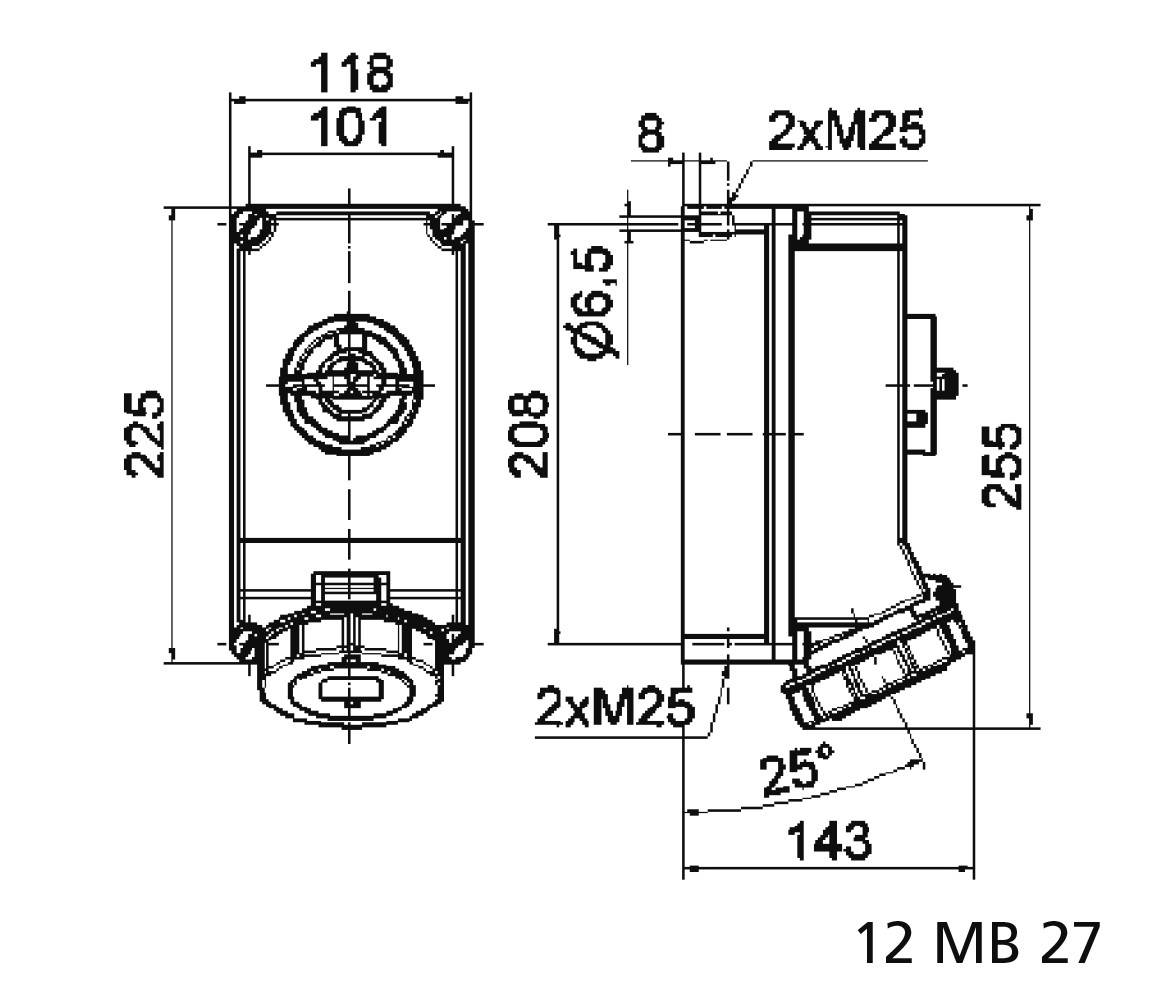

Housing size: 225 x 118 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 2xM25 top, 2xM25 bottom
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, housing screws gray RAL 7035, housing bottom gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top once, closed once at the top, closed twice at the bottom, locked in 0 position for up to 3 U-type locks with a clamp diameter of up to 7mm
This text is machine translated.
