EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection type (IP) IP44
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Cores
4
- Type
Lower and upper part
IP44
- Factory colour
Red
- Dim
(L x W x H) 114 x 90 x 189 mm
- Length
114 mm
- Width
90 mm
- Height
189 mm
- Content
1 pc(s)
- Number of pins
4
- Material
Plastic
- Operating voltage
400 V
Base unit and cover
4
Plastic
Nickel-plated
16 A
CuZn
IP44
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3147347 Bals Elektrotechnik 1610 1610 CEE wall socket 16.0 A 4-pin 400 V 1 pc(s)
Description

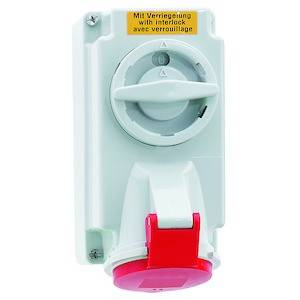

Wall socket TE can be switched off, locked
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, switch knob gray RAL 7035
Device height: 189 mm, device width: 90 mm, device depth: 114 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, lockable in 0 position for up to 3 U-locks with a clamp diameter of up to 7mm. The lower part of the housing can be rotated by 180°
This text is machine translated.
16A 4P (3P+PE) 400V (380 - 415V~) 6HR IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, switch knob gray RAL 7035
Device height: 189 mm, device width: 90 mm, device depth: 114 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, lockable in 0 position for up to 3 U-locks with a clamp diameter of up to 7mm. The lower part of the housing can be rotated by 180°
This text is machine translated.
