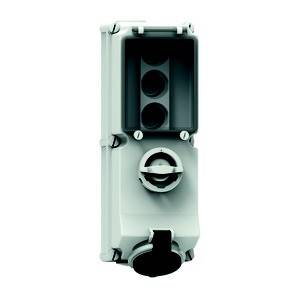

Bals Elektrotechnik 17019 17019 CEE wall socket 16.0 A 4-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Protection type (IP) IP44
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Housing material: Plastic
- Design: Lower part and upper part
- D-fuse
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
500 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Cores
4
- Type
Lower and upper part
IP44
- Factory colour
Black
- Dim
(L x W x H) 153 x 134 x 384 mm
- Length
153 mm
- Width
134 mm
- Height
384 mm
- Content
1 pc(s)
- Number of pins
4
- Material
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146617 Bals Elektrotechnik 17019 17019 CEE wall socket 16.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146617 Bals Elektrotechnik 17019 17019 CEE wall socket 16.0 A 4-pin 500 V 1 pc(s)
Description
Wall socket TE switchable, locked, secured
16A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D-fuse
Cable entry: 1xM32/M25 above, 1xM32/M25 below
Colour: Hinged lid black RAL 9005, operating flap smoky topaz, housing screws gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 384 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7mm, a D II 3-pin fuse socket is available under the operating flap
This text is machine translated.
16A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
D-fuse
Cable entry: 1xM32/M25 above, 1xM32/M25 below
Colour: Hinged lid black RAL 9005, operating flap smoky topaz, housing screws gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 384 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-type locks with a clamp diameter of up to 7mm, a D II 3-pin fuse socket is available under the operating flap
This text is machine translated.
