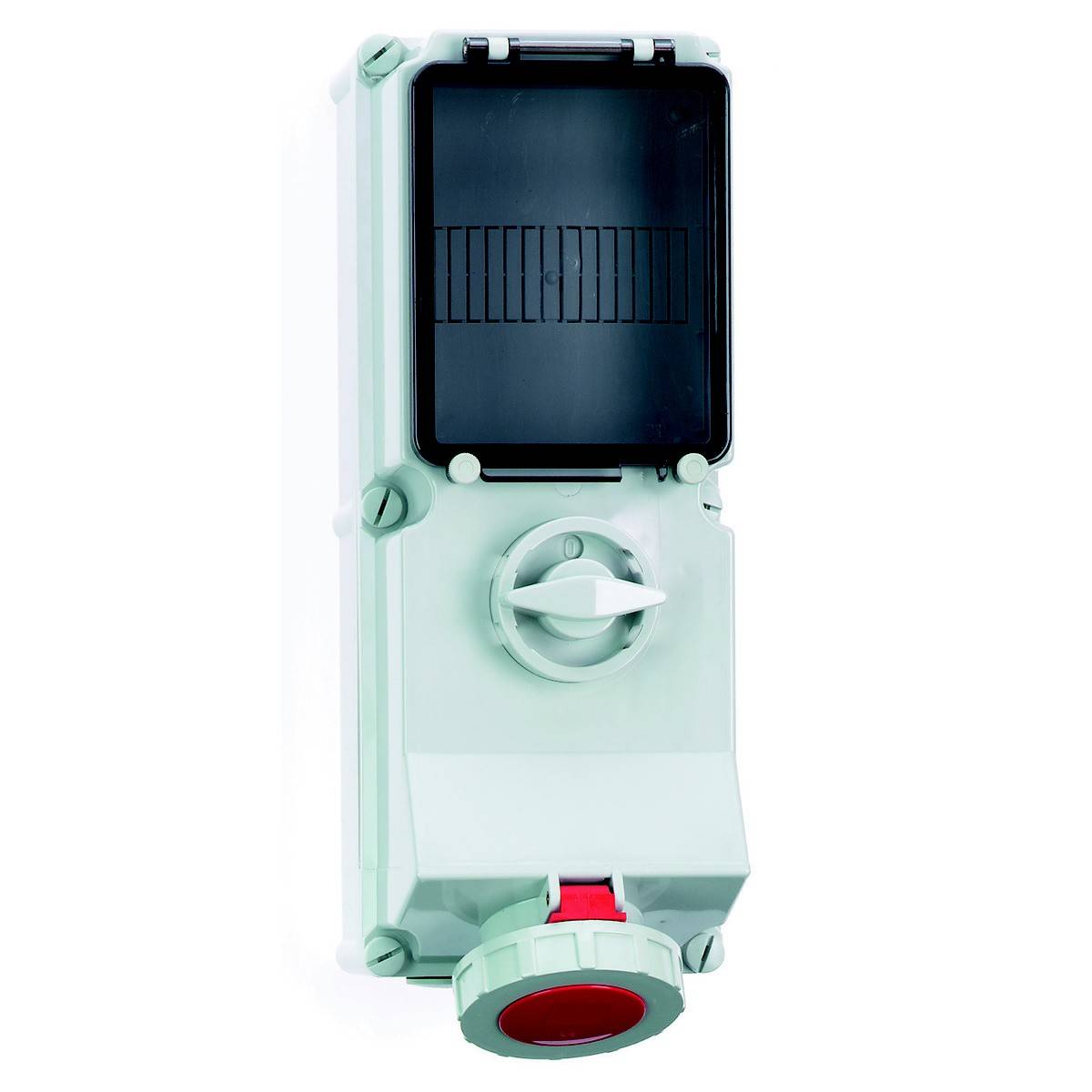

Bals Elektrotechnik 17066 17066 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Protection class (IP) IP67
- Switch: With on/off switch without locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
On/off switch
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
CEE socket (5-pin, 65 A)
- Cores
5
- Type
Lower and upper part
IP67
- Factory colour
Red

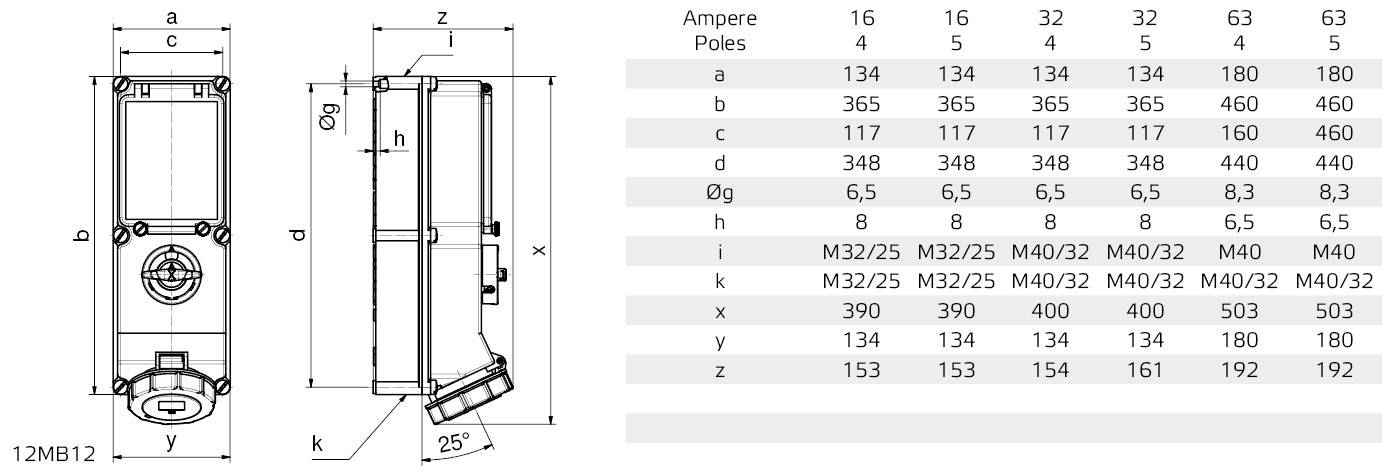

- Dim
(L x W x H) 192 x 180 x 503 mm
- Length
192 mm
- Width
180 mm
- Height
503 mm
- Content
1 pc(s)
- Number of pins
5
- Material
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135057 Bals Elektrotechnik 17066 17066 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3135057 Bals Elektrotechnik 17066 17066 CEE wall socket 63.0 A 5-pin 400 V 1 pc(s)
Description
Wall socket TE switchable, protected
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Smoked topaz actuator flap, red RAL 3000, bayonet ring gray RAL 7035, housing screws gray RAL 7035, lower section gray RAL 7035, housing part gray RAL 7035, switch knob gray RAL 7035
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 8 division units is available horizontally under the operating flap
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size: 460x180 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Security: Without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device color: Smoked topaz actuator flap, red RAL 3000, bayonet ring gray RAL 7035, housing screws gray RAL 7035, lower section gray RAL 7035, housing part gray RAL 7035, switch knob gray RAL 7035
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, in 0 position lockable for up to 4 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 8 division units is available horizontally under the operating flap
This text is machine translated.
