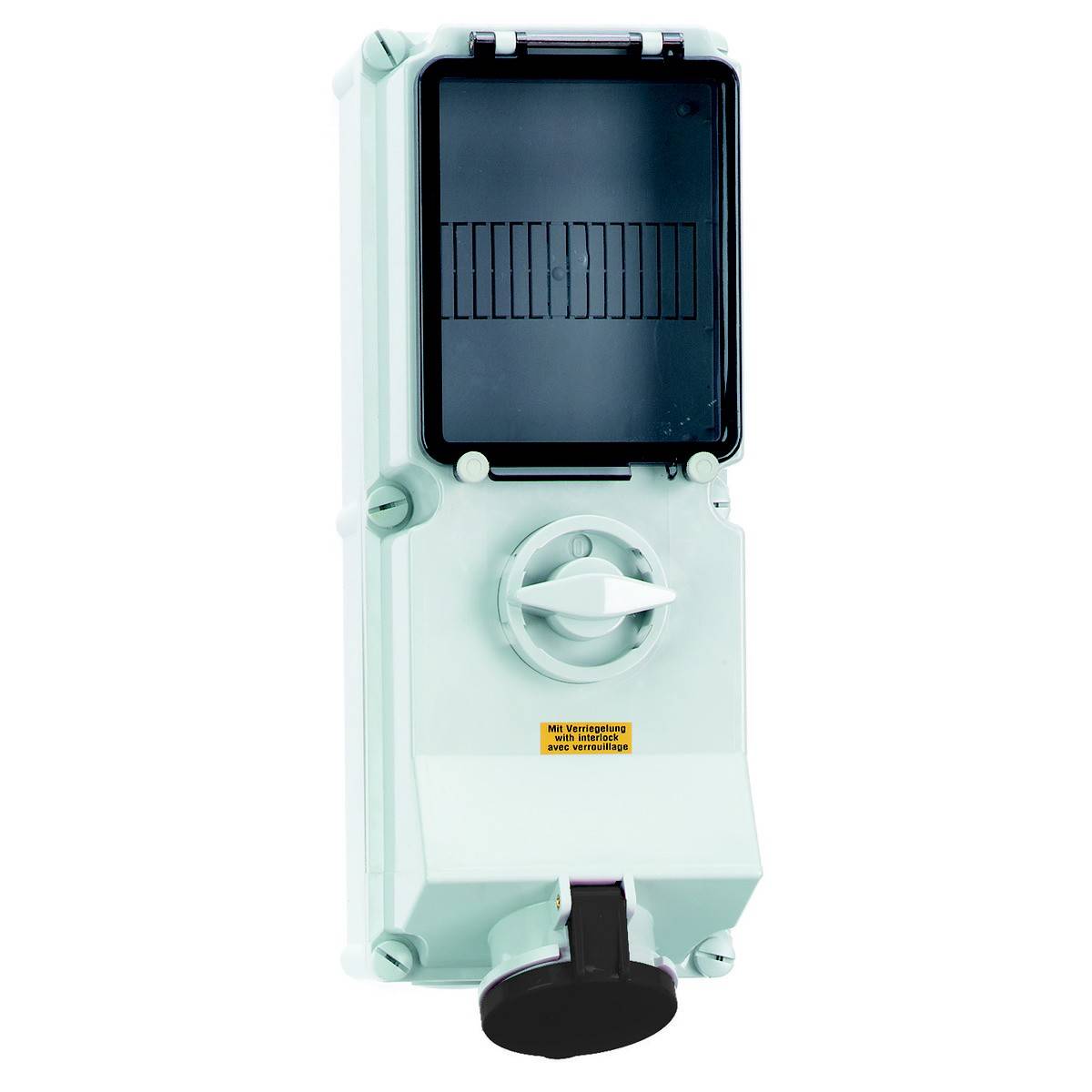

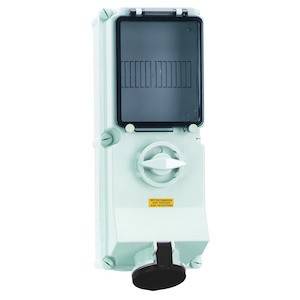

Bals Elektrotechnik 17169 17169 CEE wall socket 32.0 A 4-pin 500 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Protection type (IP) IP44
- Switch: Mechanical locking
- Design of switch: Special switch
- With FI-circuit breaker: No.
- Empty space on supporting rail: Yes
- Housing material: Plastic
- Design: Lower part and upper part
- Security: Without
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Military version: No.
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
500 V
- Nominal current
32.0 A
- Nominal current - rounded value
32 A
- Cores
4
- Type
Lower and upper part
IP44
- Factory colour
Black
- Dim
(L x W x H) 153 x 134 x 391 mm
- Length
153 mm
- Width
134 mm
- Height
391 mm
- Content
1 pc(s)
- Number of pins
4
- Material
Plastic
- Operating voltage
500 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146641 Bals Elektrotechnik 17169 17169 CEE wall socket 32.0 A 4-pin 500 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146641 Bals Elektrotechnik 17169 17169 CEE wall socket 32.0 A 4-pin 500 V 1 pc(s)
Description
Wall socket can be switched off, locked, secured
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Colour: Hinged lid black RAL 9005, operating flap smoky topaz, housing screws gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 6 division units is available horizontally under the operating flap
This text is machine translated.
32A 4P (3P+PE) 500V (480 - 500V~) 7H IP44
Mains frequency: 50/60Hz.
Technical color: Black RAL 9005
Housing size: 365x134 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 10.0 sqmm
Polycarbonate housing material
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Security: Without
Cable entry: 1xM40/M32 top, 1xM40/M32 bottom
Colour: Hinged lid black RAL 9005, operating flap smoky topaz, housing screws gray RAL 7035, lower section gray RAL 7035, housing top gray RAL 7035, switch knob gray RAL 7035
Device height: 391 mm, device width: 134 mm, device depth: 153 mm
Other technical features: The cable entry is open twice at the top and twice at the bottom, in 0 position lockable for up to 3 U-locks with a clamp diameter of up to 7 mm, in the lower part of the housing a mounting rail is available, a mounting rail for 6 division units is available horizontally under the operating flap
This text is machine translated.
